Parking Assist Sensor for BMW
This parking assist sensor is designed for BMW vehicles. It ensures accurate distance detection for parking maneuvers.
Technical Specifications
Product Overview
High-Precision Parking Assist Sensor
This parking assist sensor is engineered for precise obstacle detection, providing essential support for safe vehicle parking maneuvers. Designed with robust materials to withstand various environmental conditions, it ensures reliable performance and longevity. The sensor integrates seamlessly with existing parking assist systems, offering both audible and visual alerts to help drivers avoid collisions.
Technical Specifications

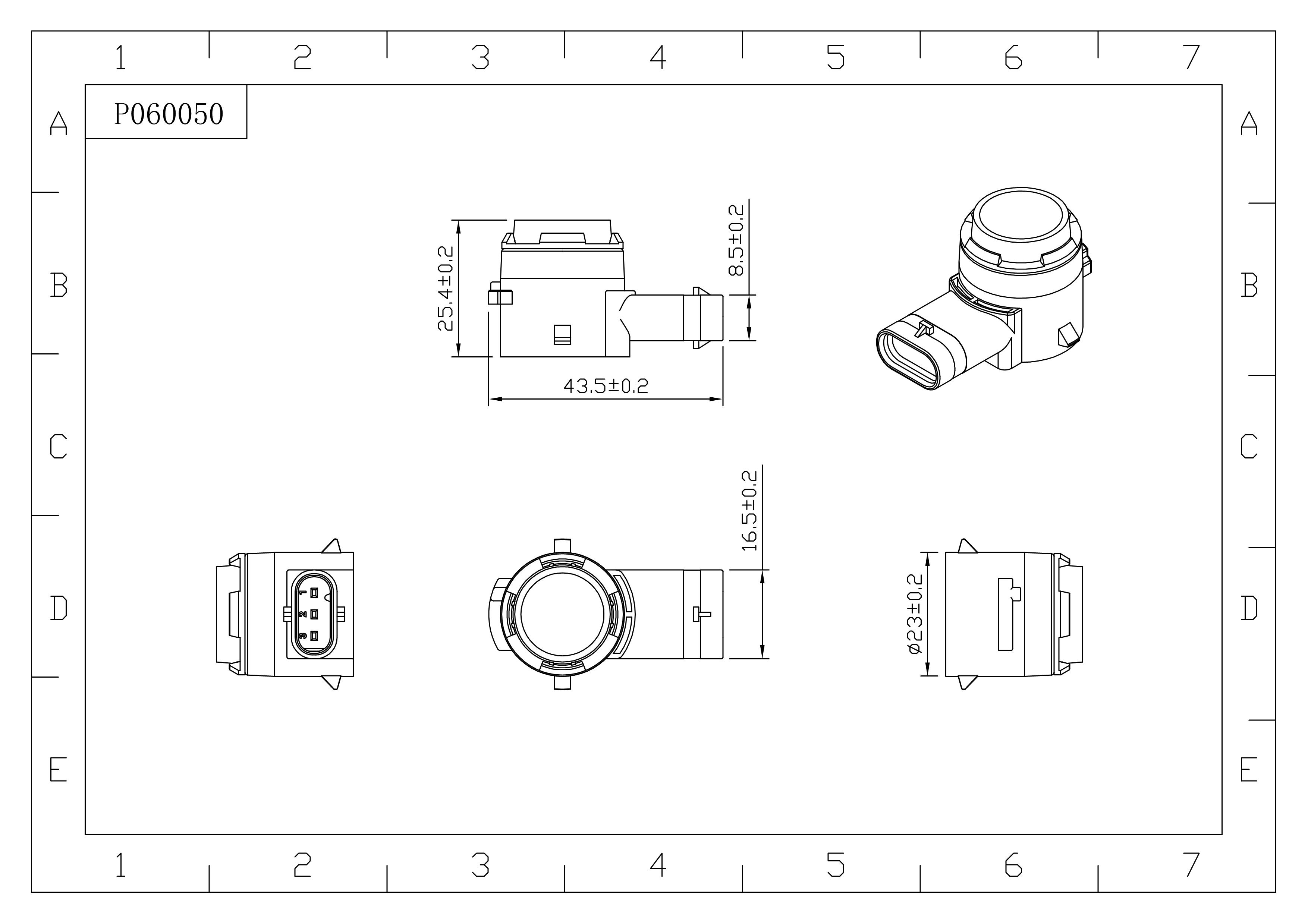

Physical Dimensions
| Measurement | Value |
|---|---|
| Diameter | Ø23±0.2 mm |
| Length A | 43.5±0.2 mm |
| Length B | 8.5±0.2 mm |
| Length C | 16.5±0.2 mm |
| Length D | 25.4±0.2 mm |
- Compatible Part Numbers
- 662092744276620928375066202409650
Quality & Compliance
Certifications & Standards
IATF 16949:2016ISO 14001:2015OHSAS 18001:2007IP67 RatedRoHS Compliant

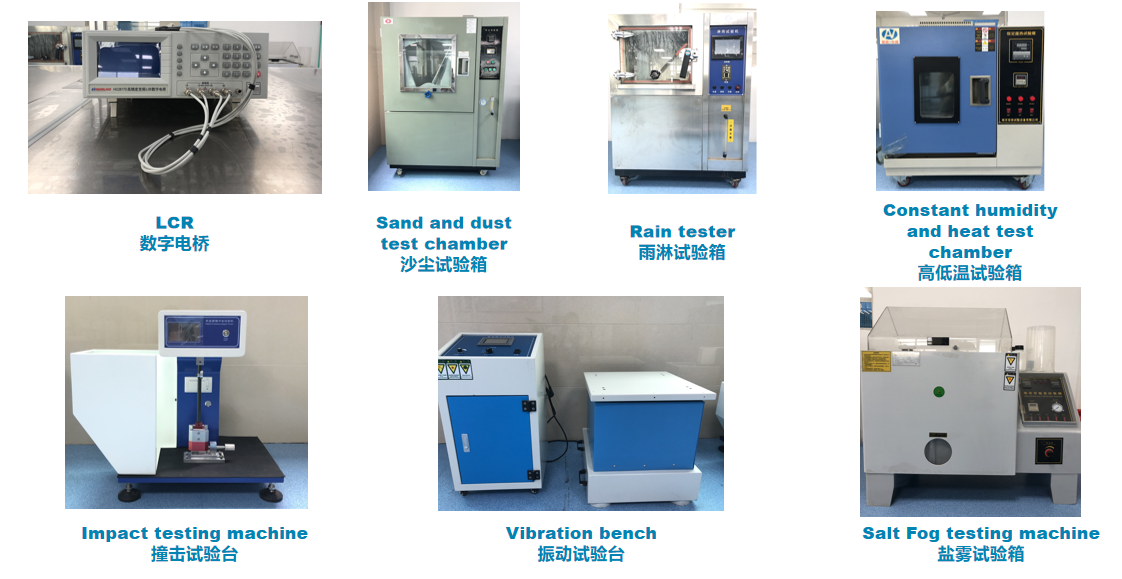

Testing & Validation
- Electrical component analysis (LCR)
- Sand and dust ingress testing
- Rain and water ingress testing
- Constant humidity and heat simulation
- Mechanical impact testing
- Vibration durability testing
- Salt fog corrosion resistance evaluation
