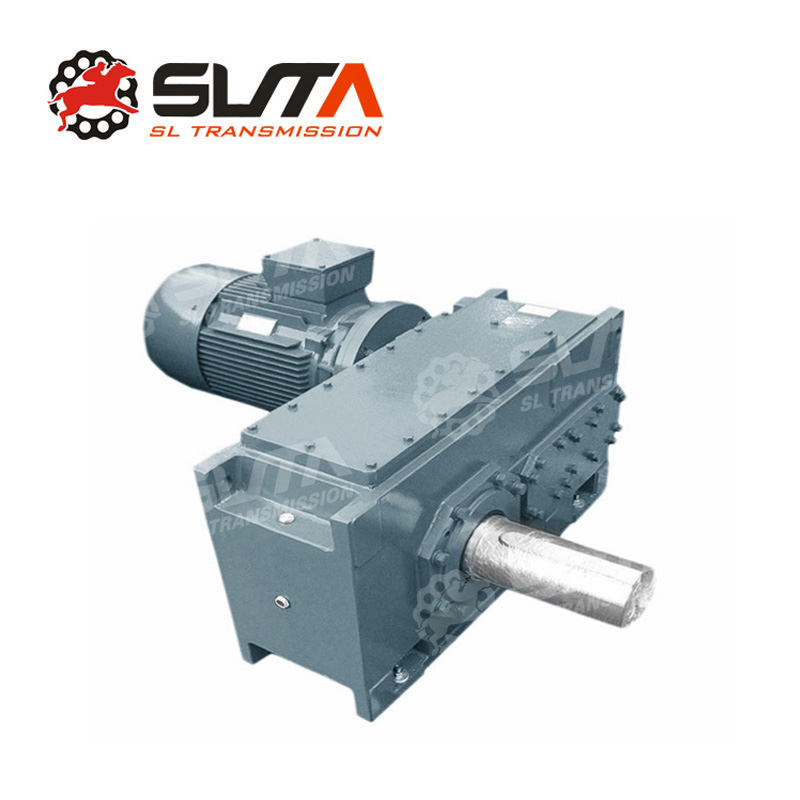

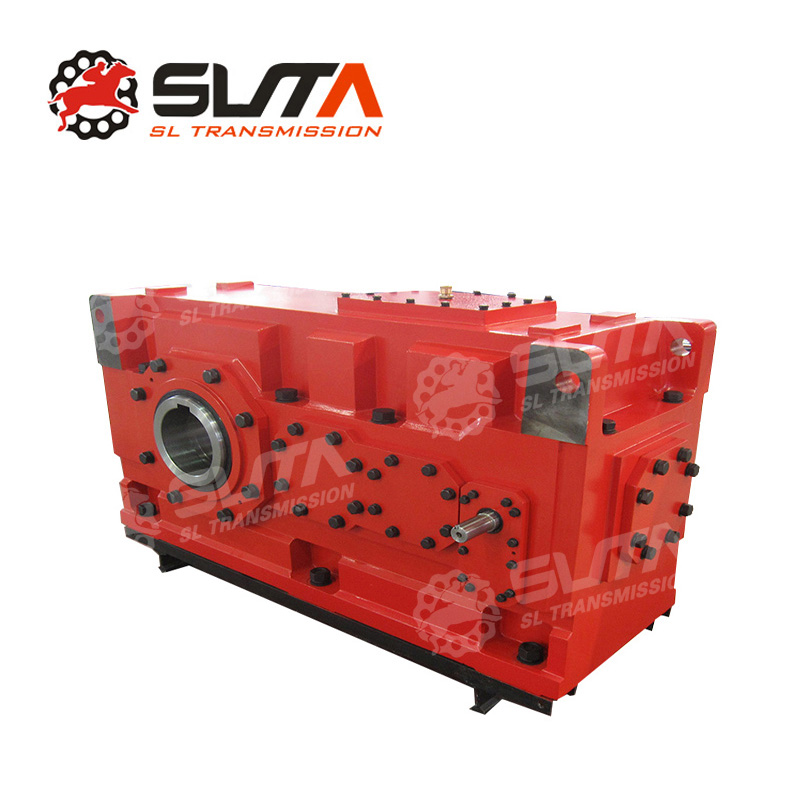

Professional H-Series Industrial Gearbox
The H-series parallel shaft industrial gearbox is engineered for demanding applications, including wind turbine energy systems. Constructed from high-strength cast iron and alloy steel, this unit ensures reliable power transmission with high torque capacity and efficiency levels ranging from 92% to 98%. It features precision-ground gears and advanced heat treatment processes for extended service life and consistent performance in harsh environments.
Performance Metrics
Efficiency
92 %
Min Efficiency
98 %
Max Efficiency
- Operating Noise
- 60-68 dB
Technical Specifications
Transmission Ratios
| Stage | Ratio Range |
|---|---|
| BC2 | 5~18 |
| BC3 | 12.5~90 |
| BC4 | 80~400 |
| HC1 | 1.25~5.6 |
| HC2 | 6.3~28 |
| HC3 | 22.4~112 |
| HC4 | 100~450 |
- Core Materials
- HT250 Cast Iron Housing20CrMnTi Alloy Steel Gears42CrMo Alloy Steel Shafts
- Gear Precision Grade
- 6~5 Grade
Environmental Limits
- Max Temperature Rise
- 40 °C
- Max Oil Temp Rise
- 50 °C
Mechanical Tolerances
- Vibration Limit
- ≤20μm
- Backlash
- ≤20 Arcmin
