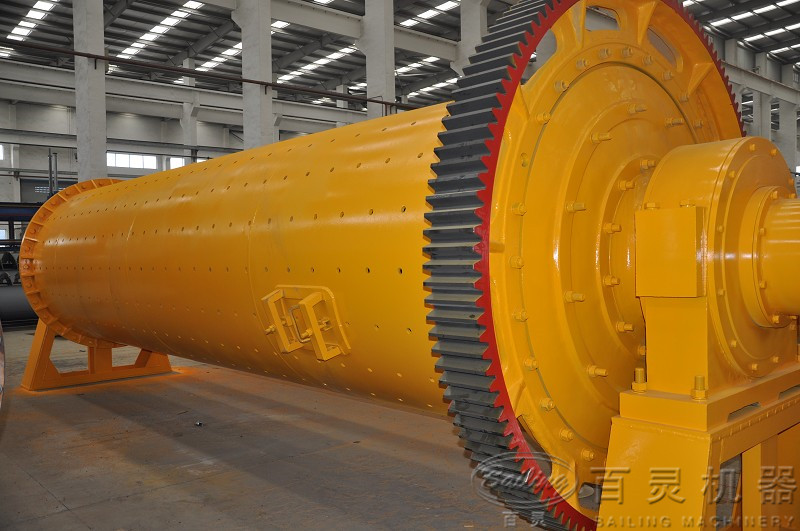

Overflow Ball Mill for Wet Grinding
The overflow type ball mill is designed for grinding materials in wet conditions. Its end cover features a cone shape, which distinguishes it from dry process ball mills.
Technical Specifications
Overview
High-Efficiency Wet Grinding Solution
The overflow ball mill is an essential piece of equipment for wet grinding processes, specifically designed for applications in cement, silicate, refractory materials, and ore dressing. Featuring a unique cone-shaped end cover and high-chrome lining plates, this mill ensures efficient, low-noise operation while maintaining durability. Its advanced oil lubrication system reduces bearing wear and maintenance frequency, making it a robust solution for continuous industrial production.
Key Features
Design Advantages
- Large diameter double biserial roller bearings for easy maintenance and efficiency
- Cone-shaped discharge end forces steel ball grading for finer particle output
- Overall steel chassis for high precision and simplified installation
- Drum feeder design eliminates impact force for smoother, more efficient operation
Technical Specifications
Model Performance Data
| Model | Speed (r/min) | Balls Weight (t) | Capacity (t/h) |
|---|---|---|---|
| Ф900×1800 | 36 | 1.5 | 0.65-2 |
| Ф1200×2400 | 36 | 3 | 1.5-4.8 |
| Ф1500×3000 | 29.7 | 7.5 | 2-5 |
| Ф1830×3000 | 25.4 | 11 | 4-10 |
| Ф2100×3000 | 23.7 | 15 | 6.5-36 |
| Ф2400×4500 | 21 | 30 | 8.5-60 |
| Ф3200×4500 | 18 | 65 | Variable |
Input & Output Requirements
25 mm
Max Feeding Size
0.074 mm
Min Particle Size
Materials & Components
- Construction Materials
- High Chrome Steel LiningHigh Chrome Steel BallsSteel Chassis
