Technical Specifications
Product Overview
Compact Power Distribution Solution

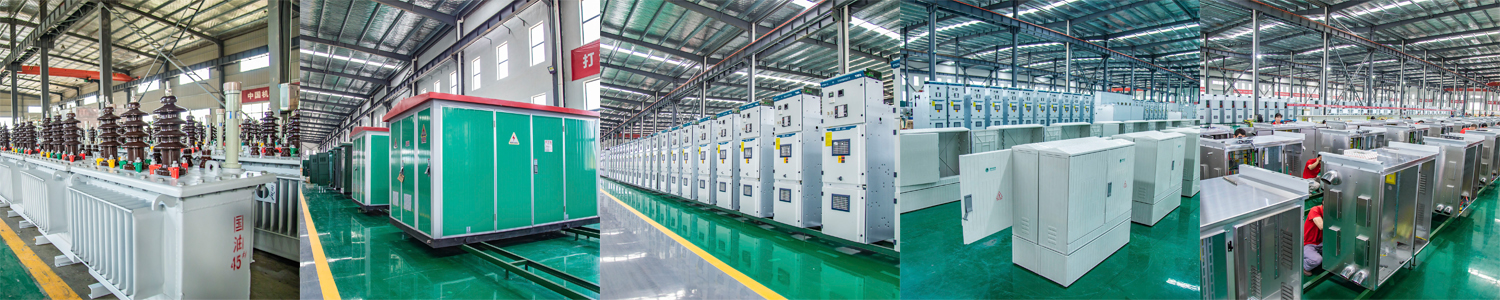

This outdoor stainless steel power distribution substation features a compact, European-style architectural design ideal for modern urban and rural landscapes. It integrates high-voltage equipment, a transformer, and low-voltage systems into a single, reliable, and easily maintained unit. Engineered for versatility, it is suitable for residential districts, industrial parks, commercial centers, and temporary power applications on construction sites.
Technical Specifications
Performance Metrics
50 Hz
Rated Frequency
1,250 kVA
Max Rated Capacity
6,300 A
Max Rated Current (HV)
Rating Breakdown
| Item | HV Equipment | Transformer | LV Equipment |
|---|---|---|---|
| Rated Voltage (kV) | 7.2, 12 | 6/0.4, 10/0.4 | 0.4 |
| Rated Current (A) | 200-6300 | - | 100-3000 |
| Breaking Current (kA) | 0.4-0.63 | - | 15-63 |
Application Areas
- Primary Applications
- Residential DistrictsIndustrial ParksCommercial CentersUrban InfrastructureRural Power GridsConstruction SitesMining & Oil Fields
Design & Construction
Construction Details
- Stainless steel enclosure for corrosion resistance
- Compact architectural design
- Modular configuration for easy expansion
- Multiple access points for maintenance
- Integrated ventilation system
