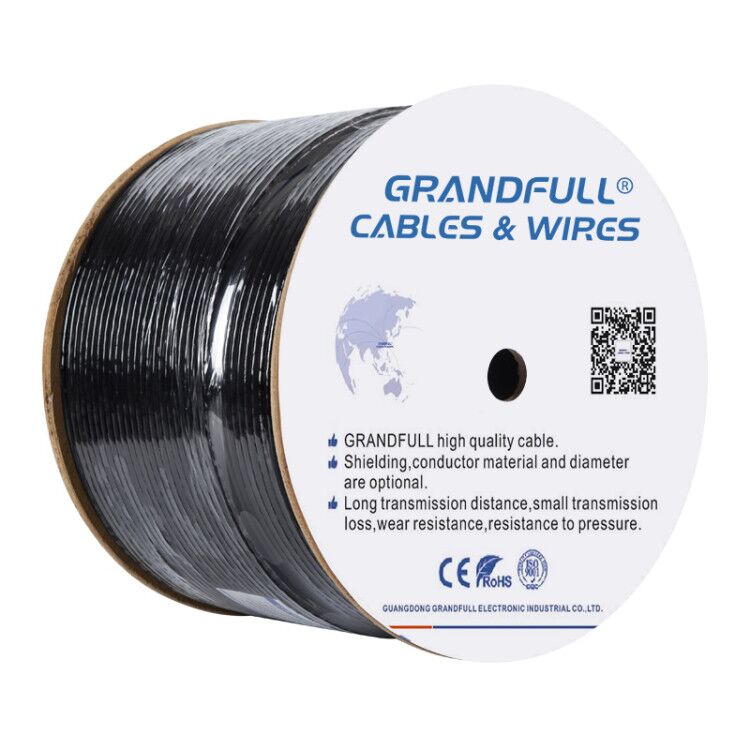

Outdoor Cat5e LAN Cable
This outdoor Cat5e LAN cable is designed for reliable data transmission in demanding environments. It features a weather-resistant jacket for protection against UV radiation, moisture, and extreme temperatures.
Technical Specifications
Overview
High-Performance Outdoor Connectivity
This Cat5e LAN cable is engineered for reliable data transmission in demanding outdoor environments, featuring a durable double-jacket construction for enhanced weather resistance. It supports long-distance networking with minimal signal loss, making it ideal for outdoor security monitoring and waterproof LAN installations. With multiple shielding and conductor options available, it provides a versatile solution for professional networking infrastructure.
Technical Specifications
Transmission Performance
9.5 Ω/100m
Max DC Resistance
5.4 nF/100m
Max Capacitance
305 m
Standard Length
Construction Details
Conductor & Shielding
| Feature | Available Options |
|---|---|
| Conductor Gauge | 23AWG, 24AWG, 25AWG |
| Conductor Material | Oxygen-free Copper (BC) or Copper Clad Aluminum (CCA) |
| Shielding Type | UTP (Unshielded), FTP (Single Shielded), SFTP (Double Shielded) |

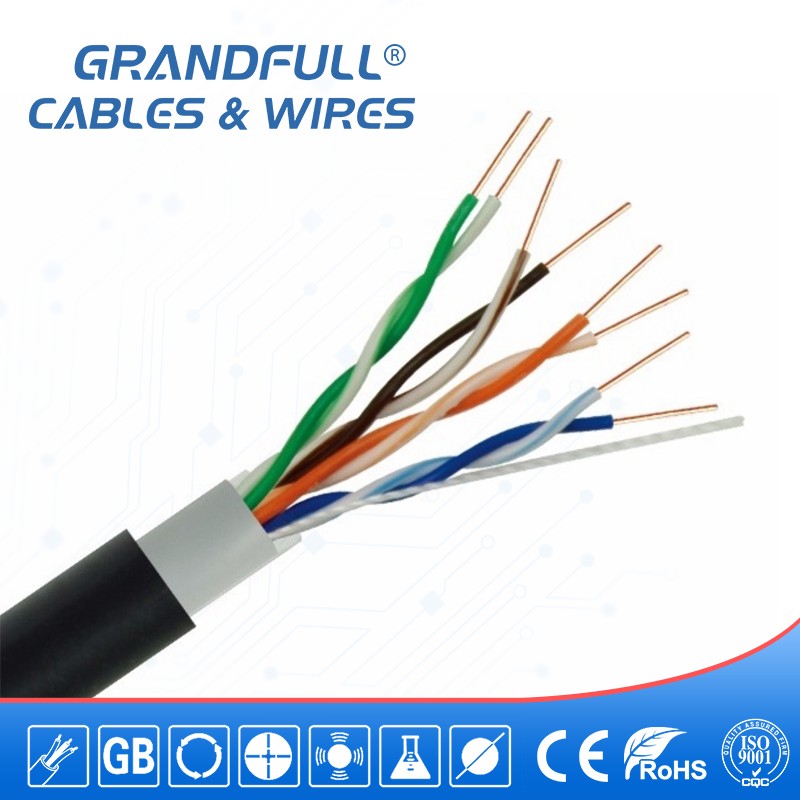

| Structure | 4 Twisted Pairs (8 Cores) |
Physical Properties
Jacket & Insulation
- Outer Jacket: PVC or LSZH (Low Smoke Zero Halogen)
- Insulation: PE or HDPE
- Jacket Thickness: 0.95mm - 0.98mm

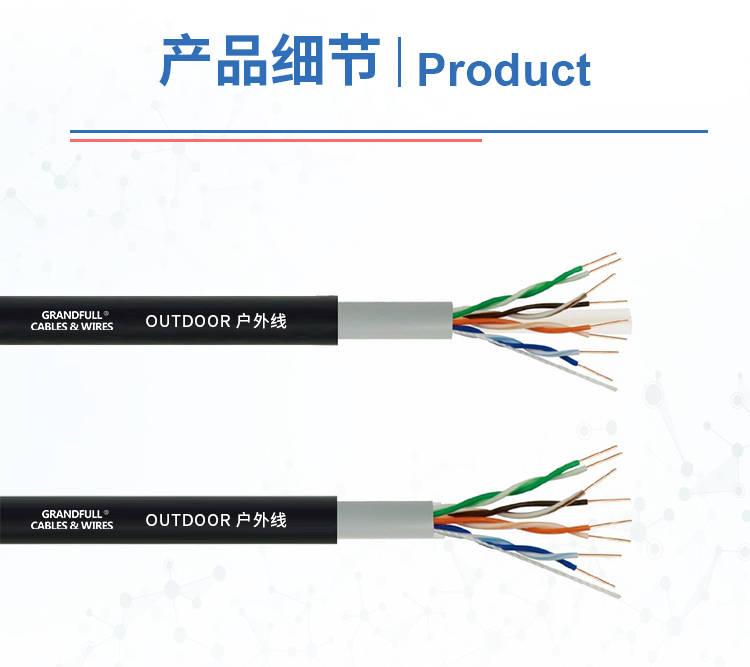

- Design: Double Jacket for outdoor protection
Environmental & Standards
- Operating Temperature
- -20 °C to +70°C
- Compliance & Testing
- CERoHSISO 9001ISO 14001ISO 18001Fluke Tested
Applications
Primary Applications
Outdoor LAN WiringWaterproof NetworkingSecurity MonitoringCCTV Installations
Packaging

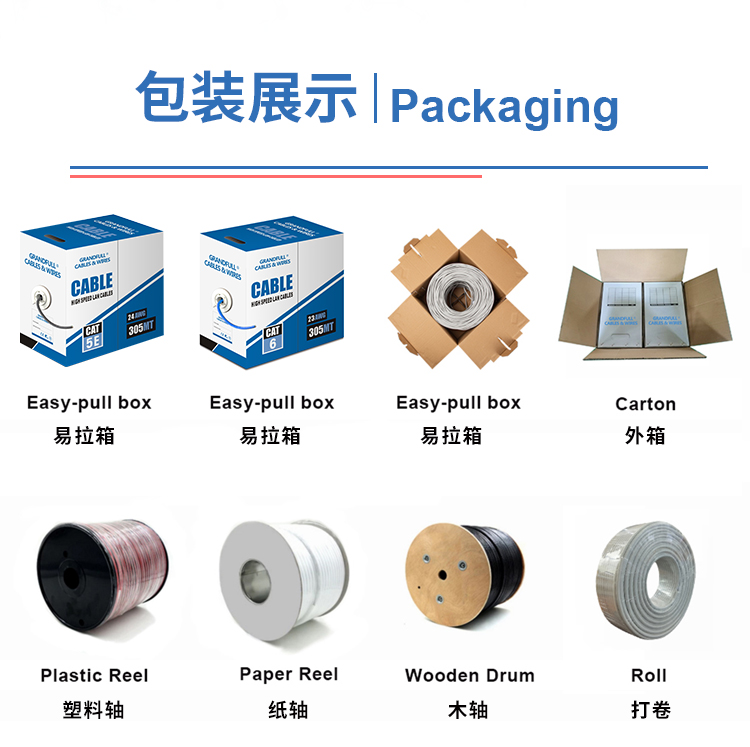

Available Packaging
- Easy-pull box
- Wooden Drum / Spool
- Plastic Reel
- Paper Reel
- Carton
- Roll
Service Options
- Customization Services
- Yes
