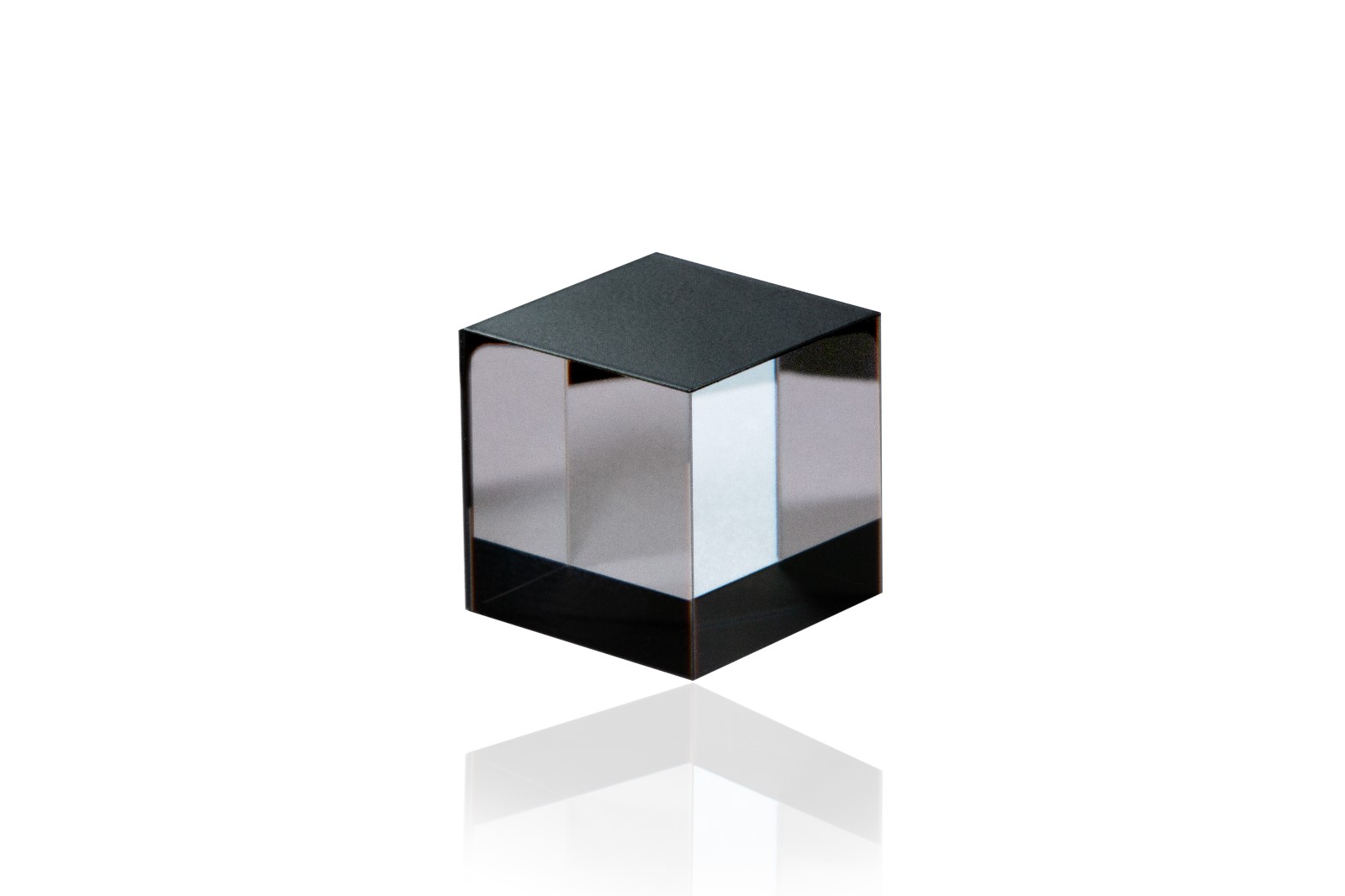

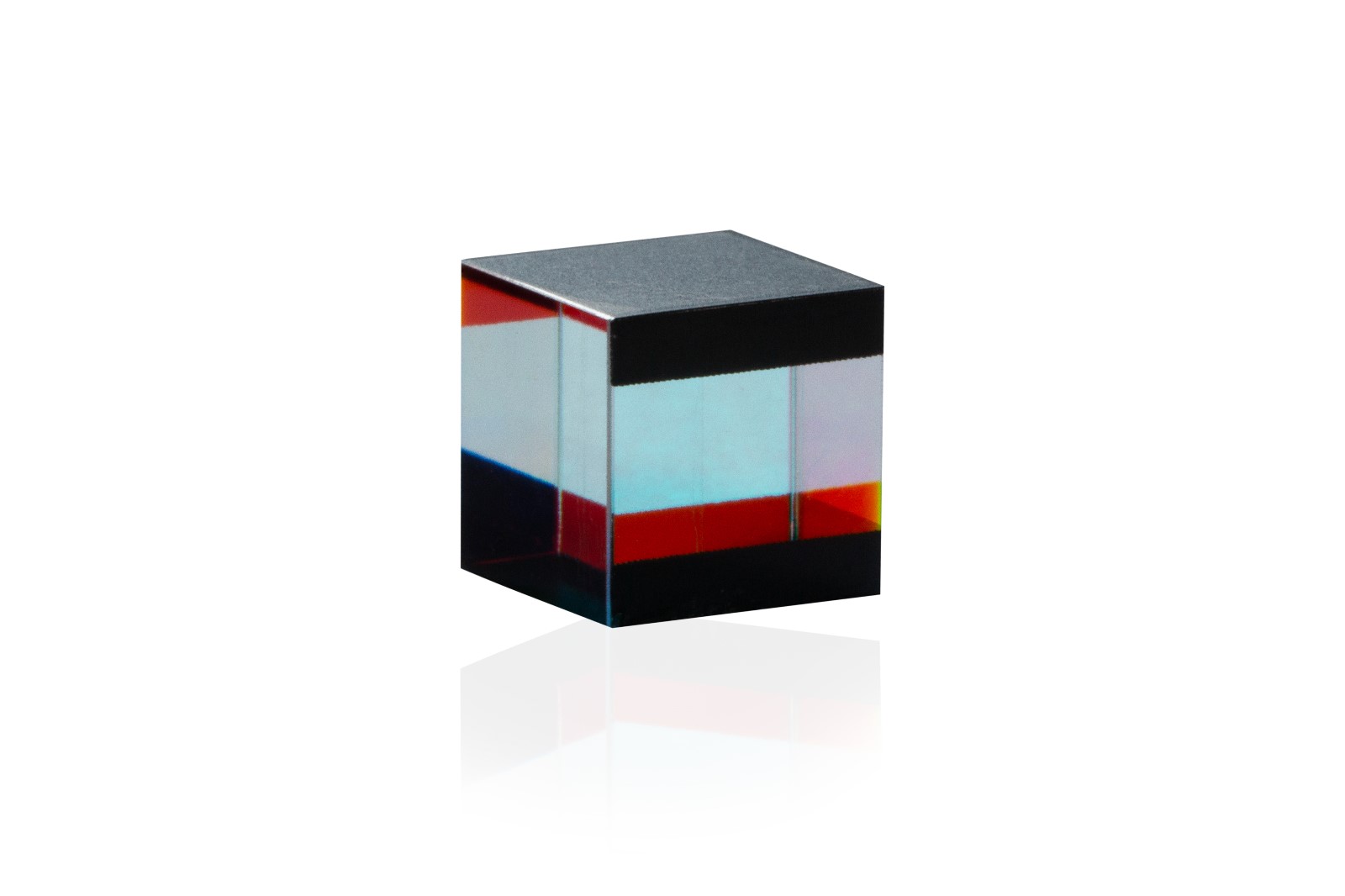

Optical Prism for Beam Splitting
This optical prism is designed for beam splitting applications. It features high precision and undergoes 100% quality inspection during the production process.
Technical Specifications
Product Overview
High-Precision Beam Splitting Prism

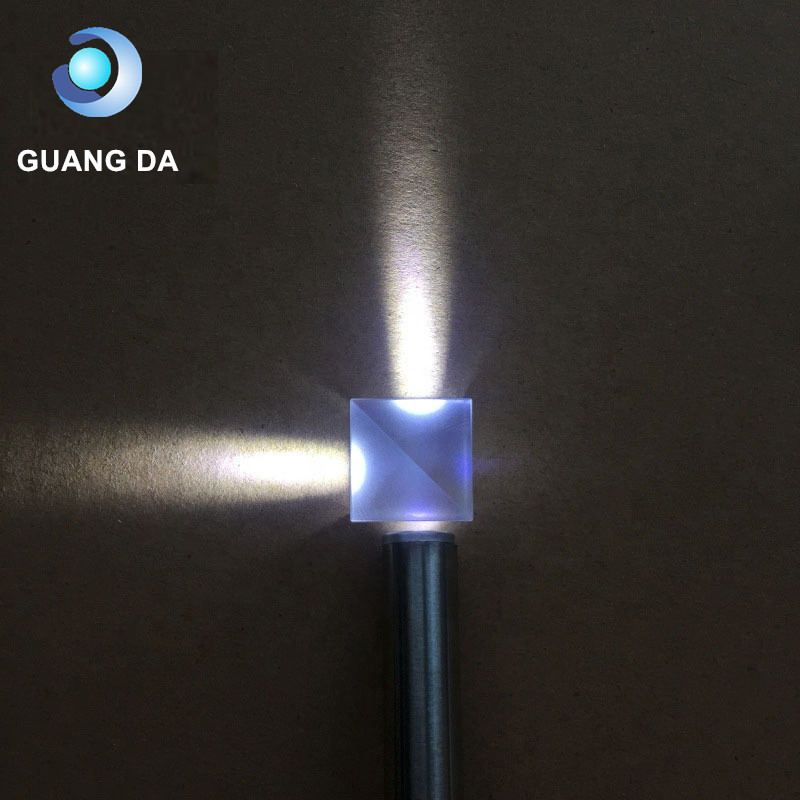

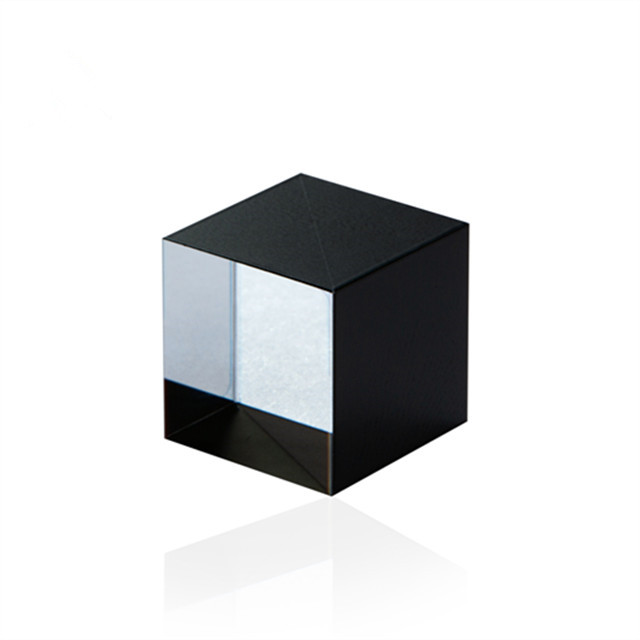

This optical prism is engineered for high-precision beam splitting, polarization control, and spectral analysis. Constructed from high-quality optical colourless glass, it features precise angular tolerances and superior surface quality to ensure minimal distortion and maximum light transmission. Designed for versatility, this component is suitable for a wide range of demanding applications, from laser systems and medical equipment to imaging and rangefinding devices.
Technical Specifications
- Material
- Optical colourless glass
- Clear Aperture
- >90%
- Surface Quality
- 40/20
- Surface Accuracy
- λ/5
- Angle Tolerance
- ±1′～±5′
- Dimensional Tolerance
- 0.1 mm
- Splitting Ratio Accuracy
- T/R: ±5%
Applications
Application Fields
- Projectors
- Optical Instruments
- Fingerprint Devices
- Collimators
- Rangefinders
- Imagers
- Mechanical Sights
- Solar Converters
- Laser Treatment Equipment
- Laser Measurement Systems
Quality Assurance
- Quality Commitment
- High Precision100% Quality InspectionEnd-to-End Production
