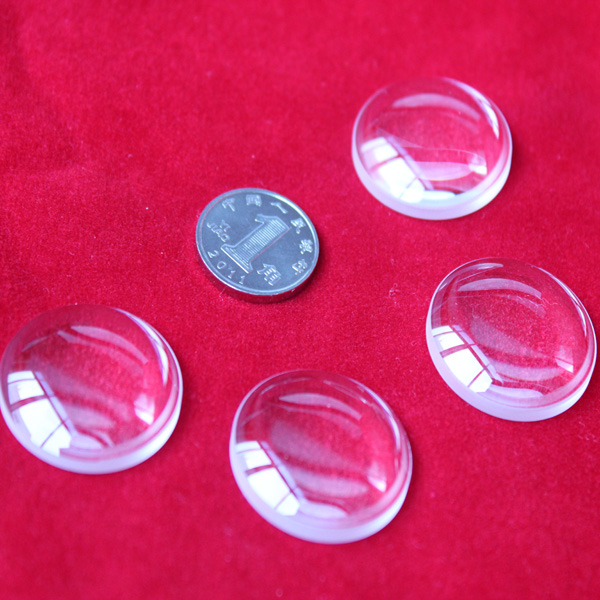

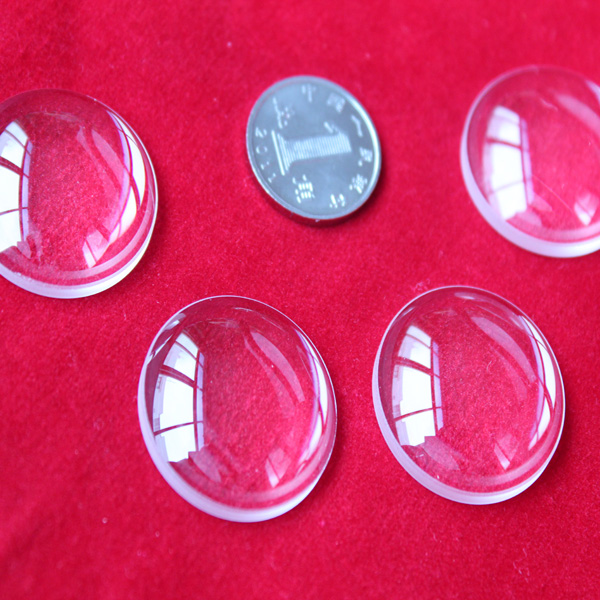

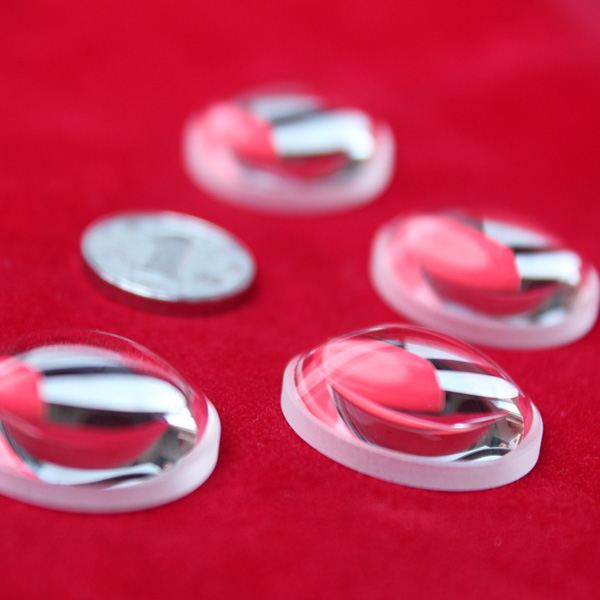

Plano-Convex Optical Lens
This plano-convex lens is designed with one flat surface and one convex surface. It is suitable for use in imaging systems, telescopes, collimators, and condensers.
Technical Specifications
Overview
Precision Plano-Convex Lens
These high-quality plano-convex lenses are designed for a wide range of optical applications, featuring a flat surface on one side and a convex surface on the other. They provide positive focal length and excellent light-gathering capabilities, making them ideal for focusing, collimating, and magnifying light. Manufactured from precision optical glass or fused silica, these lenses ensure minimal distortion and optimal performance for imaging systems, telescopes, and condensers.
Material & Construction
- Material
- Grade A optical glass or Fused Silica
Optical Performance
- Clear Aperture
- >85% of diameter
- Paraxial Focal Length Tolerance
- +/-2%
- Centration
- 3 arc minutes
Surface Quality
- Surface Figure
- lambda/4 at 632.8nm
- Surface Quality (S/D)
- 60-40
Mechanical Specifications
- Diameter Tolerance (Standard)
- +0.0, -0.15mm
- Diameter Tolerance (Precision)
- +0.0, -0.02mm
- Bevel
- 0.25x45deg
Applications
- Ideal Applications
- Imaging SystemsBeam FocusingLight CollimationTelescopesCondensers
