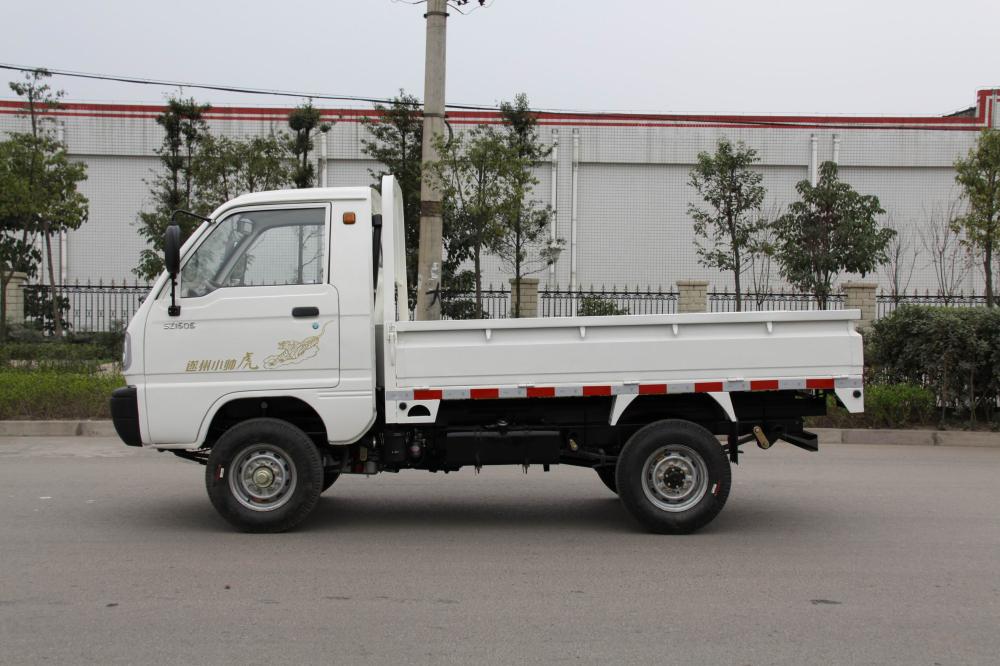

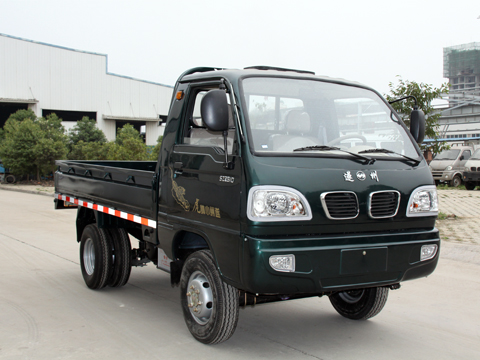

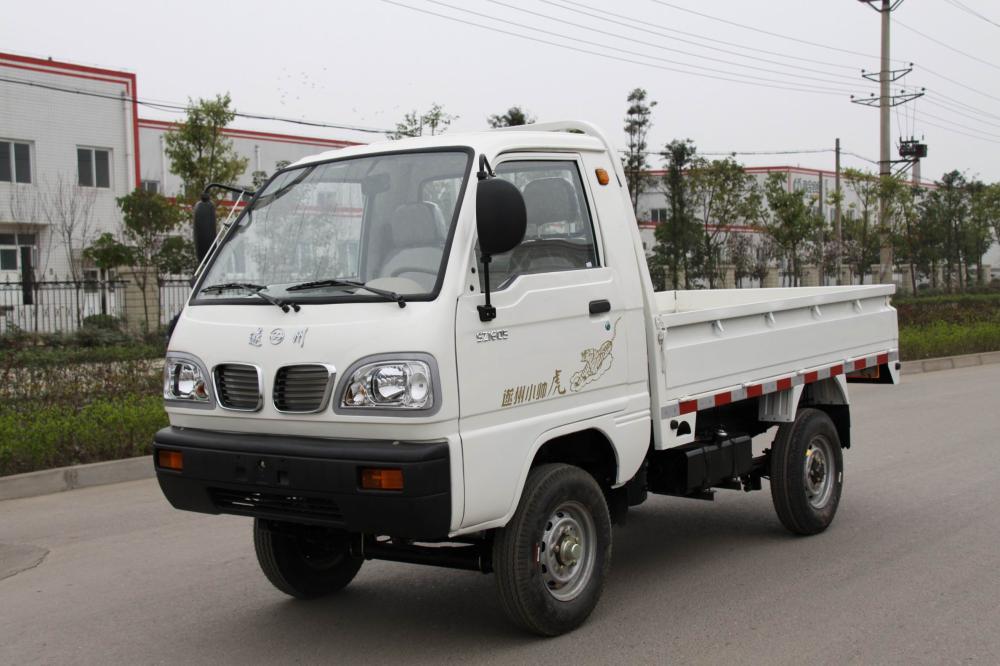

Open Body Diesel Mini Truck
This open body diesel mini truck is equipped with a drum brake and MP3 player. Optional features include A/C, a heater, and right-hand drive.
Technical Specifications
Overview
Compact Utility Diesel Mini Truck
This robust open body diesel mini truck is engineered for efficient cargo transport in both urban and rural environments. It features a reliable 1360ml diesel engine paired with a durable chassis and heavy-duty suspension for superior load-bearing performance. With its compact footprint and impressive climbing ability, this vehicle is an ideal solution for small businesses and industrial logistics requiring agility in confined spaces.
Performance
Key Performance Indicators
600 kg
Rated Load Capacity
62 km/h
Max Speed
30 %
Climbing Ability
Technical Specifications
Engine & Powertrain
| Parameter | Value |
|---|---|
| Model | LL380 |
| Fuel Type | Diesel |
| Displacement | 1360 ml |
| Rated Power | 22 kw @ 3000 r/min |
| Max Torque | 78.4 N.m @ 1900~2100 r/min |
Dimensions
Vehicle Dimensions
- Overall Length: 3920 mm
- Overall Width: 1420 mm
- Overall Height: 1880 mm
- Wheelbase: 2200 mm
- Ground Clearance: ≥ 165 mm
Cargo & Capacity
Cargo Area Dimensions
- Cargo Length: 2485 mm
- Cargo Width: 1325 mm
- Cargo Height: 350 mm
General Info
- Weight Parameters
- Gross Weight: 1780 kgCurb Weight: 1050 kg
