One-Way Disc Plough
The one-way disc plough is designed to prevent grass winding, blockages, and hip building. Its adjustable angle allows for easy cutting of crop stalks.
Technical Specifications
Overview
Robust Soil Preparation Solution

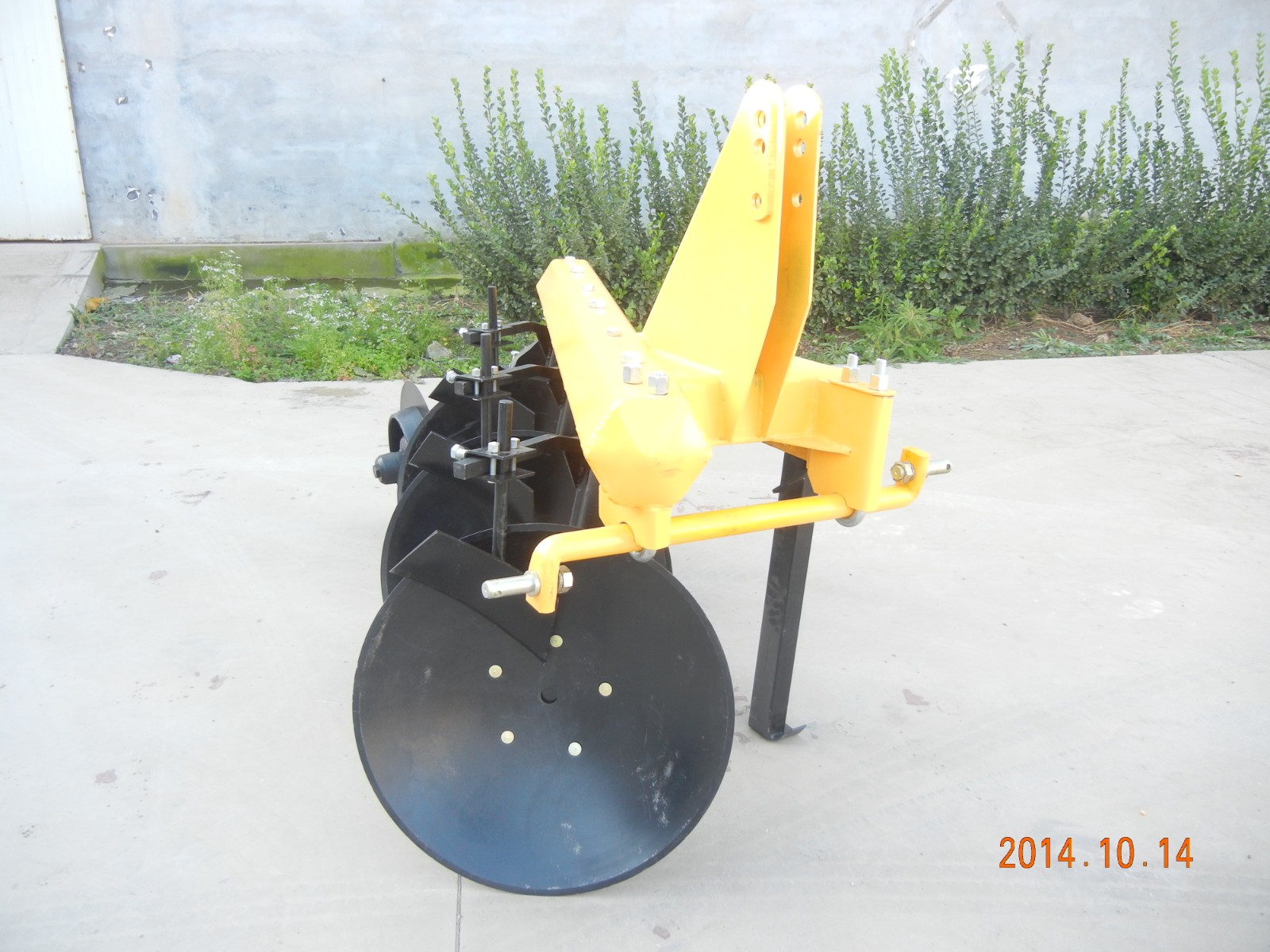

This one-way disc plough is engineered for efficient soil preparation and cultivation, featuring a fully-suspended design compatible with four-wheel tractors. Its rotary disc motion ensures effective soil inversion, making it particularly suitable for challenging land conditions including those with weeds, stems, and frictional soil containing bricks. The design prevents grass winding and blockages while allowing for adjustable working angles to optimize performance.
Technical Specifications
Performance Metrics
250 mm
Working Depth (Min)
300 mm
Working Depth (Max)
40 hp
Min Matched Power
Model Comparison
| Model | Working Width (mm) | No. of Discs | Total Weight (kg) | Matched Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
Design & Features
Key Features
- Fully-suspended three-point linkage (Type II)
- Anti-clogging design prevents grass winding and blockages
- Adjustable disc angle for customized tillage
- Effective crop stalk cutting capability
- Suitable for heavy-duty soil with debris
- Design Characteristics
- One-WayFish PloughTractor MountedRotary MotionAgricultural
