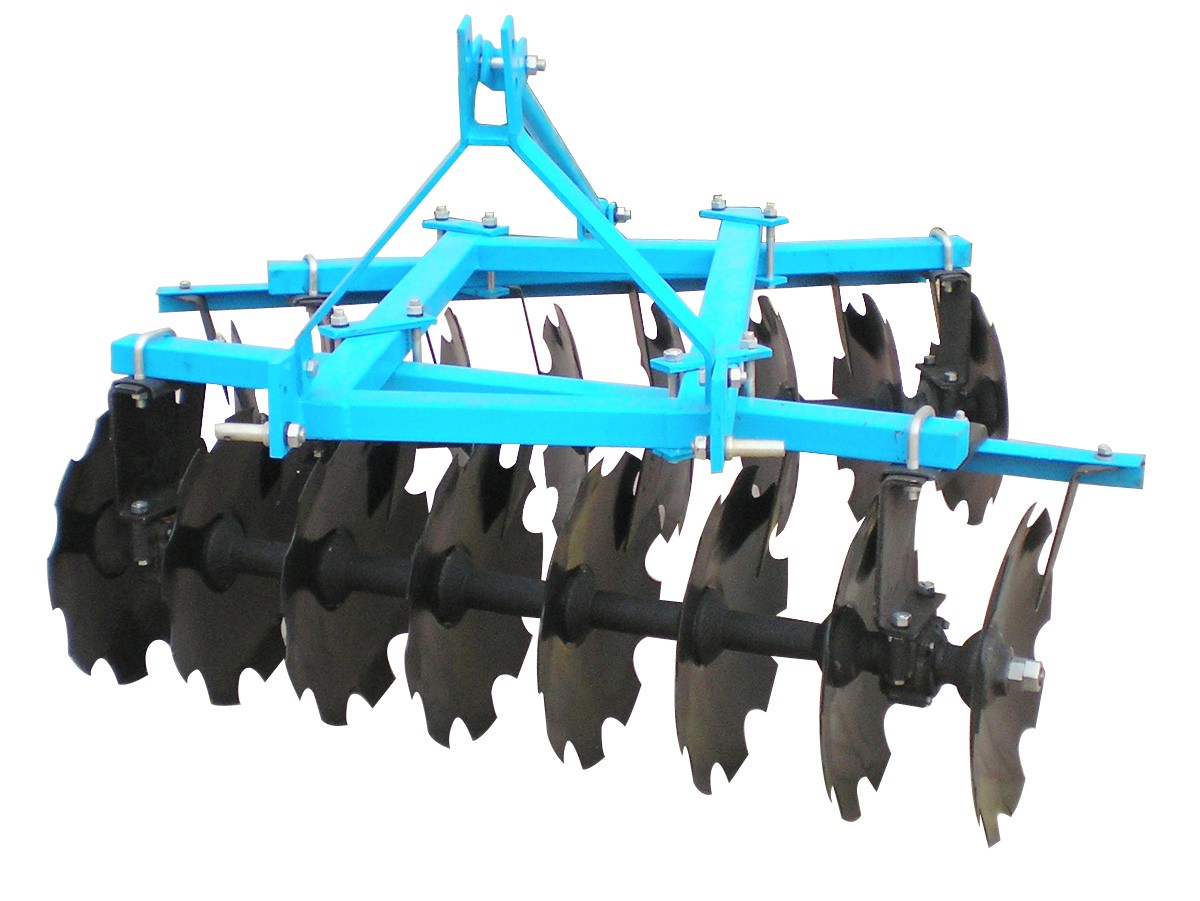

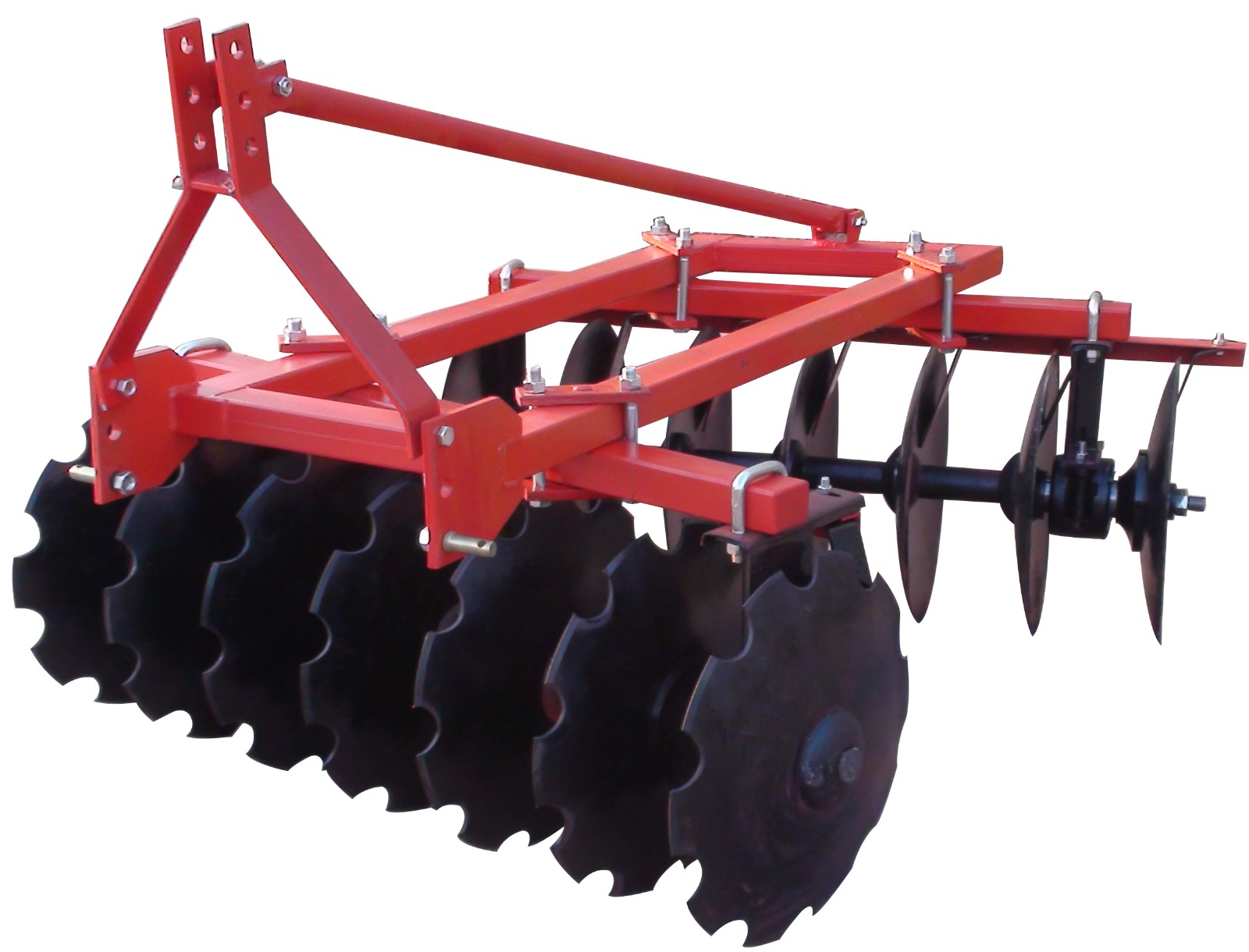

Offset Disc Harrow for Compact Tractors
This tractor-mounted light disc harrow is suitable for 15-60hp tractors. The tractor offset disc harrow is designed for soil preparation and cultivation.
Technical Specifications
Overview
Efficient Soil Cultivation
This offset disc harrow is specifically engineered for compact tractors, offering an ideal solution for primary and secondary tillage. It excels at breaking hardened soil, incorporating crop residue, and leveling seedbeds, making it versatile for heavy clay soils, waste land, and weedy fields. Built with 65Mn spring steel discs and a durable bearing assembly, this implement ensures reliable performance and longevity in demanding agricultural environments.
Technical Specifications
Key Features
- Adjustable working depth
- Scraper fitted for each disc blade
- Strong and durable bearing assembly
- Offset design for aggressive soil mixing
- Working Depth
- 120 mm
- Linkage Compatibility
- Three-point suspension I typeThree-point suspension II type
- Disc Material
- 65Mn spring steel
Model Comparison
Model Specifications
| Model | Width (mm) | Disc Qty | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
