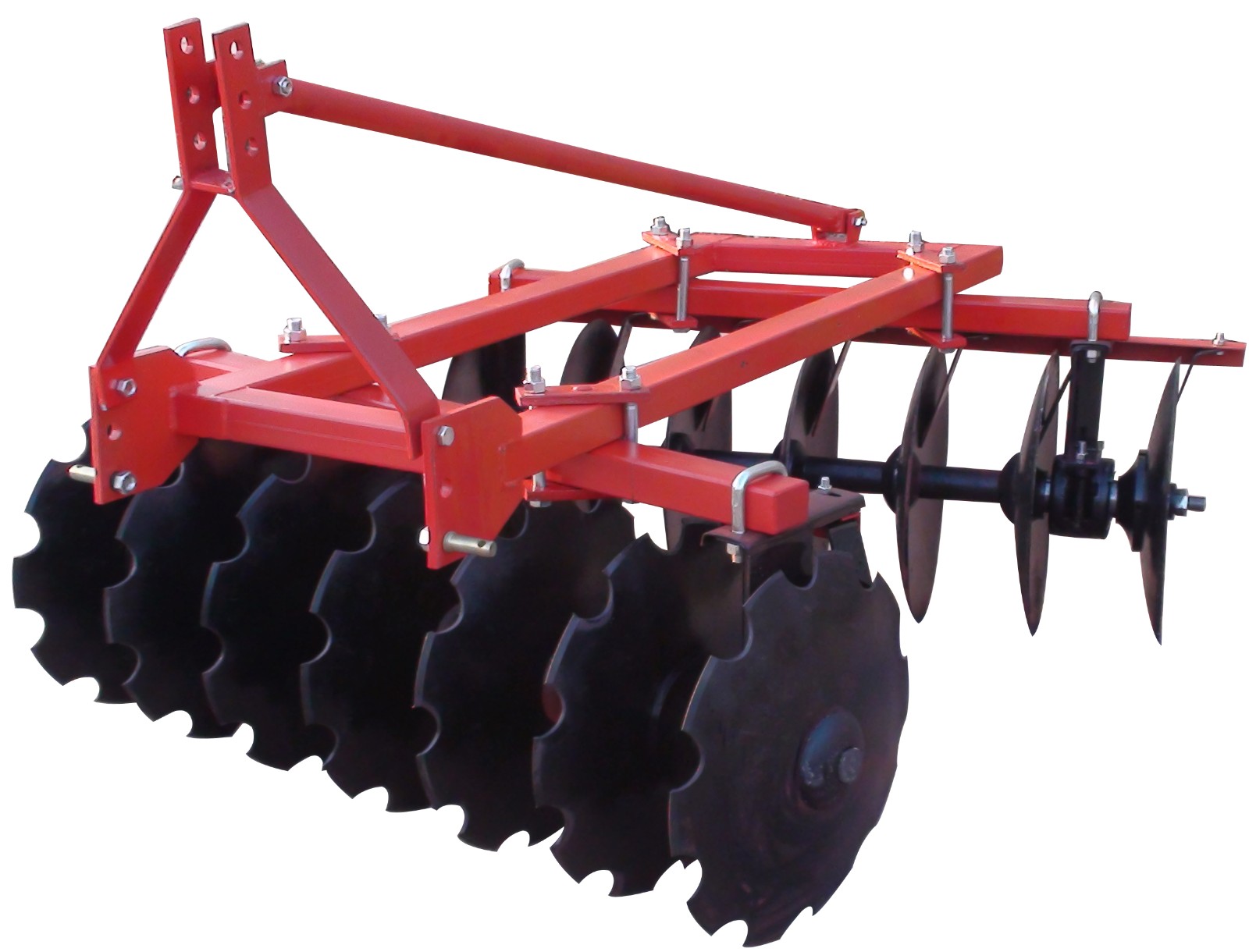

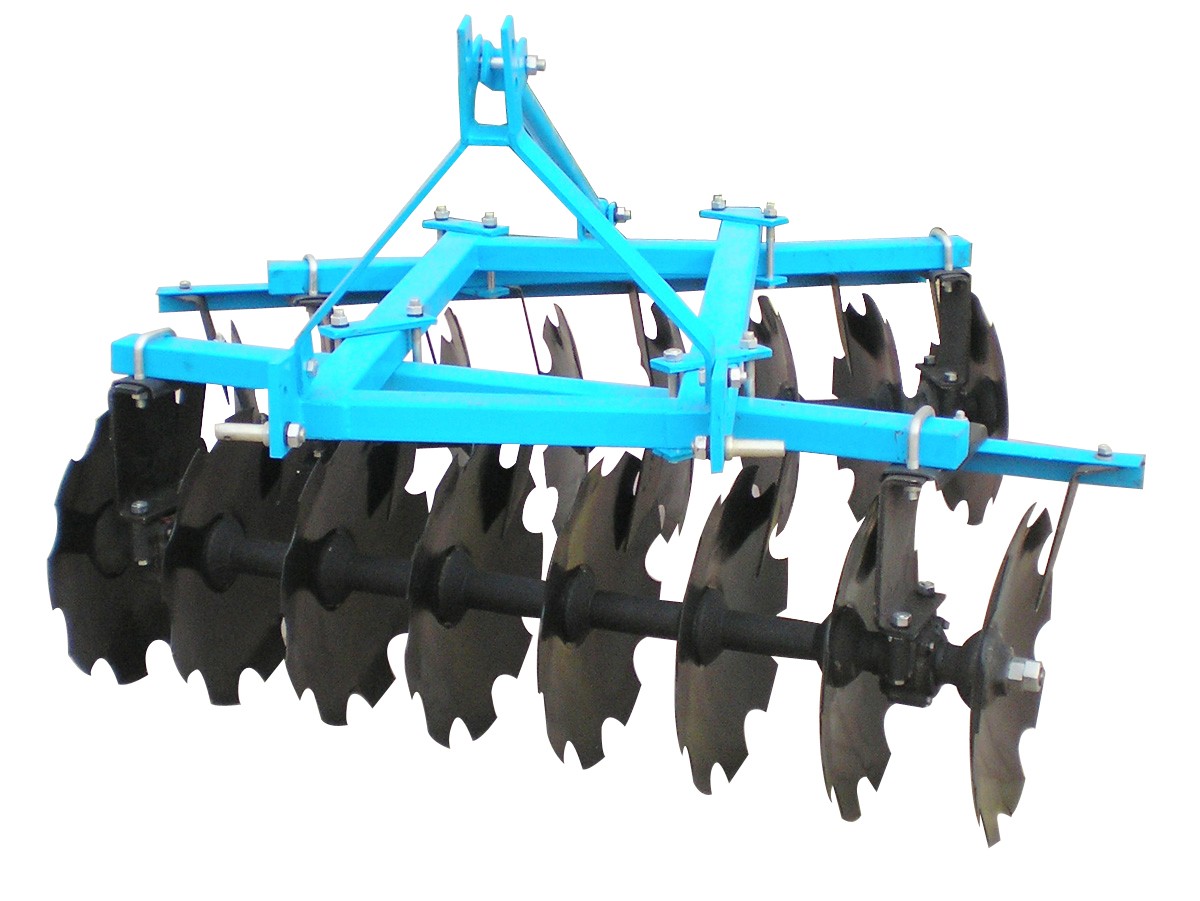

Offset Disc Harrow for Compact Tractors
This tractor-mounted disc harrow is designed for light soil cultivation. It is compatible with 15-60hp tractors.
Technical Specifications
Product Overview
Efficient Soil Preparation
This offset disc harrow is specifically engineered for compact tractors, making it an ideal solution for small-scale farming and land management. It excels at clearing crop residue, breaking up hardened soil, and leveling land post-tillage, ensuring a smooth and well-prepared seedbed. Constructed with high-quality 65Mn spring steel blades and a durable bearing assembly, this implement offers reliable performance even in challenging heavy clay or weedy conditions.
Technical Specifications
Model Performance Data
| Model | Width (mm) | Disc Qty | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
- Blade Material
- 65Mn spring steel
- Working Depth
- 120 mm
- Compatible Linkage
- Three-point suspension I typeThree-point suspension II type
Key Features
Design Highlights
- Offset disc arrangement for improved soil coverage
- Includes scrapers for each disc blade to prevent clogging
- Adjustable working depth
- Robust and durable bearing assembly
- Suitable for heavy clay, waste land, and weedy fields
