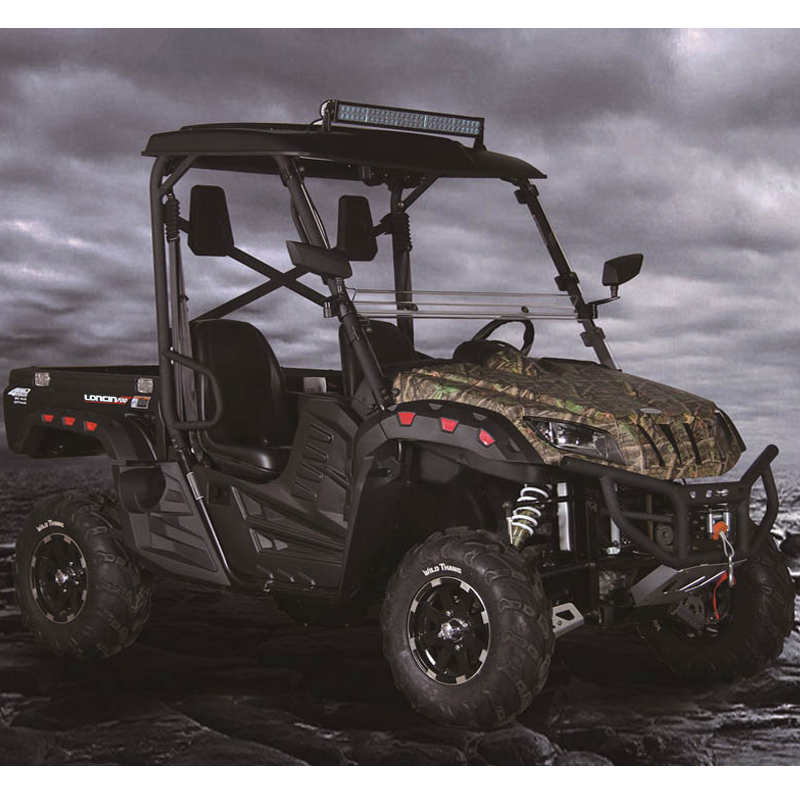

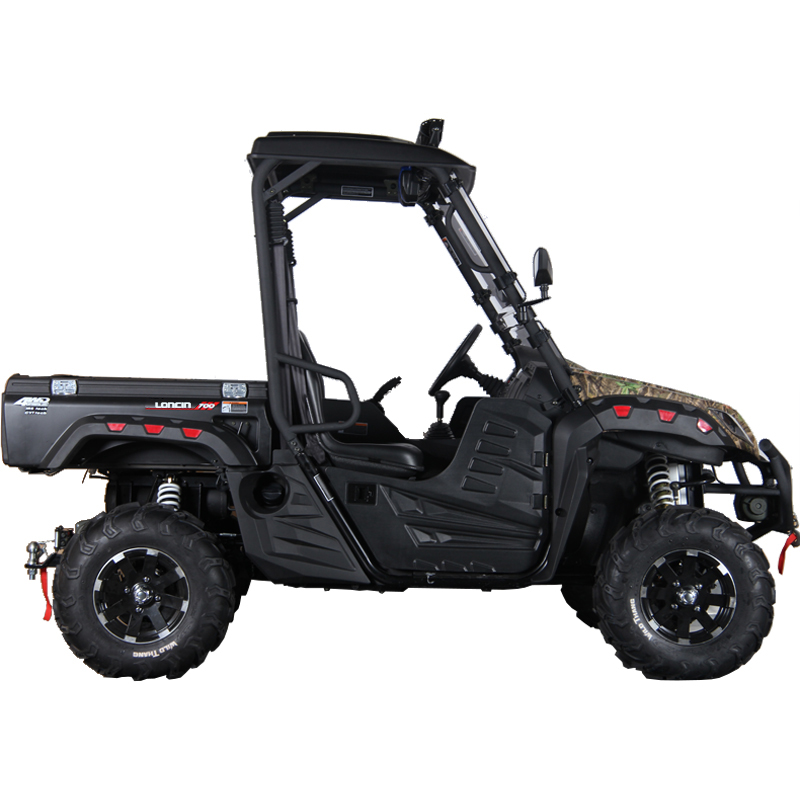

Off-Road Utility Task Vehicle with Roll Cage
This utility task vehicle is equipped with a roll cage, off-road tires, and a cargo bed for hauling. It is designed for both utility and recreational use in various terrains.
Technical Specifications
Overview
Rugged Off-Road Performance
This off-road utility task vehicle is engineered for both demanding utility work and recreational off-road adventures. Equipped with a powerful 686cc liquid-cooled engine and a versatile 4WD system, it ensures reliable performance across challenging terrains. The vehicle features a robust roll cage and independent suspension, prioritizing operator safety and handling comfort.
Engine & Performance
Key Performance Metrics
102 mm
Bore
84 mm
Stroke
9.7 :1
Compression Ratio
- Displacement
- 686 cc
- Engine Configuration
- Liquid cooled 4-stroke, SOHC, Forward-inclined single cylinder
Drivetrain & Transmission
Gear Ranges
| Gear Mode | Ratio Range |
|---|---|
| Reverse | 11.16 ~ 37.26 |
| Low Range | 13.95 ~ 46.57 |
| High Range | 8.39 ~ 28.01 |
- Drivetrain Capabilities
- 2WD4WDDifferential LockShaft Drive
Chassis & Suspension
Tire Dimensions
- Front: 25x8-12
- Rear: 25x10-12
- Suspension Type
- Independent suspension with coil spring and gas-oil damper
Specifications
- Passenger Capacity
- 2
