Technical Specifications
Product Overview
Safety-First Valve Operation
Designed for demanding environments where flammable or combustible vapors, liquids, and dust are present, this non-sparking valve wheel wrench ensures safe operation in volatile conditions. It provides the necessary leverage to tighten or loosen stuck valves, protecting against mechanical sparks, friction, and impact hazards. Engineered with precision casting, it combines durability with specialized material properties for reliable performance in oil, gas, and chemical industries.
Technical Specifications
Key Properties
Non-SparkingCorrosion ResistantAntimagnetic (BeCu)
- Material Options
- Beryllium Copper (BeCu)Aluminum Bronze (AlBr)
- Manufacturing
- Precision Casting

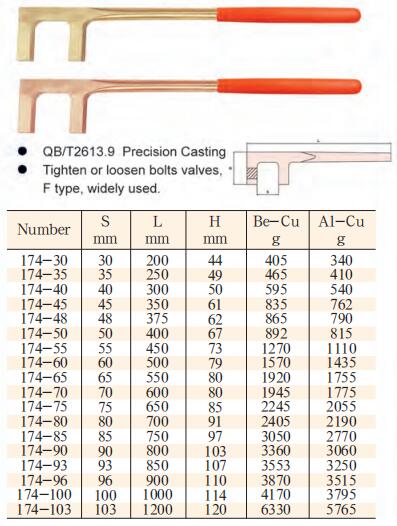

Size & Weight Data
Available Dimensions
| Model | S (mm) | L (mm) | H (mm) |
|---|---|---|---|
| 174-30 | 30 | 200 | 44 |
| 174-35 | 35 | 250 | 49 |
| 174-40 | 40 | 300 | 50 |
| 174-45 | 45 | 350 | 61 |
| 174-50 | 50 | 400 | 67 |
| 174-60 | 60 | 500 | 79 |
| 174-70 | 70 | 600 | 80 |
| 174-80 | 80 | 700 | 91 |
| 174-90 | 90 | 800 | 103 |
| 174-100 | 100 | 1,000 | 114 |
