Technical Specifications
Product Overview
Professional Non-Sparking Tool Solution

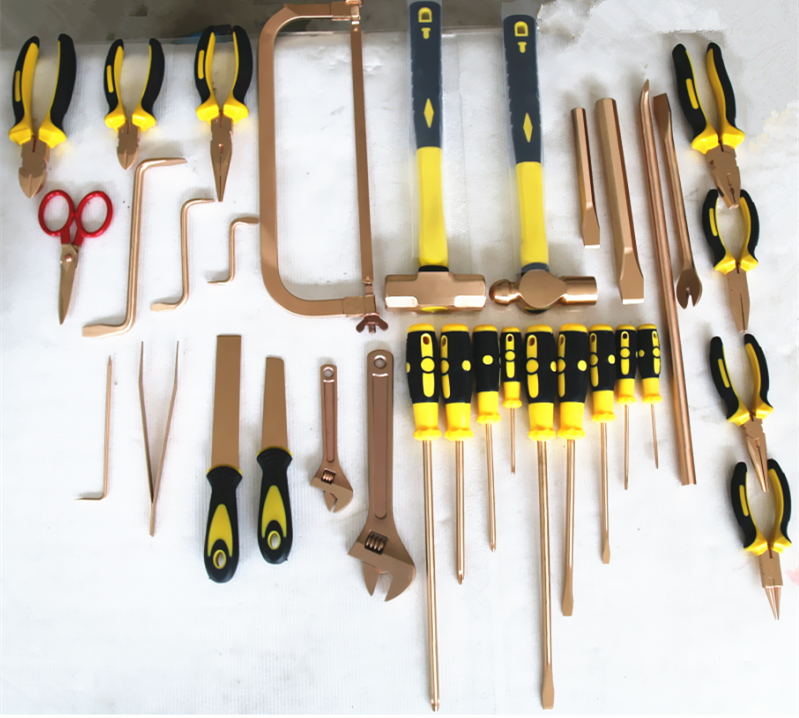

This comprehensive hand tool set is engineered specifically for hazardous environments where flammable liquids, gases, or dust are present. Utilizing advanced die-forged processing, these tools are designed to eliminate the risk of sparks during operation, ensuring maximum safety for industrial applications. The set is available in high-performance material options, including Beryllium Copper and Aluminum Bronze, to meet specific operational requirements.
Certifications & Quality
- Certifications
- ISO9001
- Manufacturing Process
- Die forged
Material Composition
Material Specifications
| Material Type | Composition Details | Hardness | Tensile Strength |
|---|---|---|---|
| Beryllium Copper (GBEx ⅡC) | Be: 1.8-2.3%, Ni: 0.2-0.5%, Cu: Rest | 35-40 HRC | 1117-1326 N/mm2 |
| Aluminum Bronze (GBEx ⅡB) | Al: 10-12%, Ni: 4-6%, Cu: Rest | 20-30 HRC | 782-989 N/mm2 |
