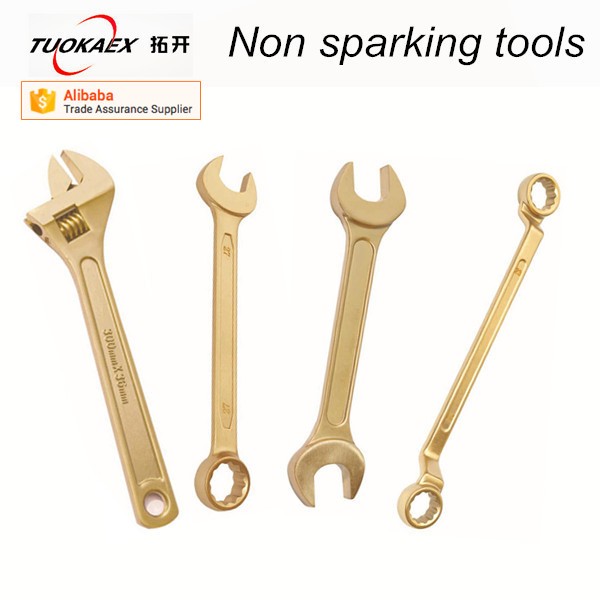

Non-Sparking Combination Wrench Set
These combination wrenches are manufactured from non-sparking materials. They are suitable for use in environments where flammable or explosive materials are present.
Technical Specifications
Product Overview
Safety-First Engineering
These non-sparking combination wrenches are engineered for safety in hazardous environments where flammable vapors, liquids, or dusts are present. Constructed from high-quality aluminum bronze or beryllium copper alloys, these tools eliminate the risk of sparks, making them essential for oil, gas, chemical processing, and mining operations. Each tool undergoes precise die-forged processing to ensure durability and reliability in demanding industrial applications.
Quality & Standards
- Certifications
- ISO 9001:2008
- Manufacturing Process
- Die forged
Technical Specifications
Dimensions and Weight Table
| Model | Length (mm) | K (min) | Be-Cu Weight (g) | Al-Cu Weight (g) |
|---|---|---|---|---|
| TK125-02 | 100 | 13 | 33 | 30 |
| TK125-04 | 150 | 18 | 135 | 120 |
| TK125-06 | 200 | 24 | 281 | 255 |
| TK125-08 | 250 | 30 | 440 | 401 |
| TK125-10 | 300 | 36 | 720 | 655 |
| TK125-12 | 375 | 46 | 1,410 | 1,290 |
| TK125-14 | 450 | 55 | 2,261 | 2,065 |
| TK125-16 | 600 | 65 | 4,705 | 4,301 |
