Technical Specifications
Product Overview

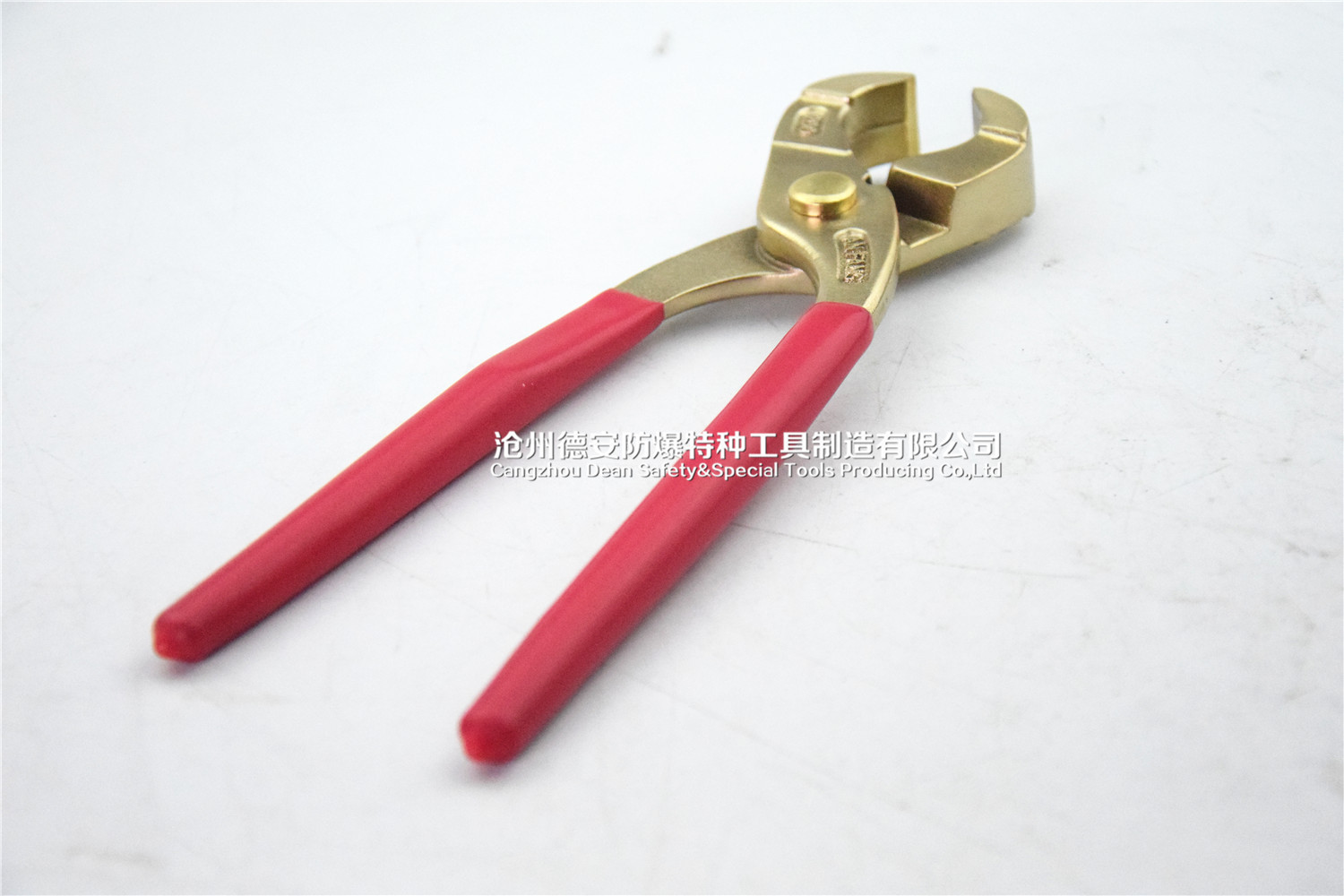

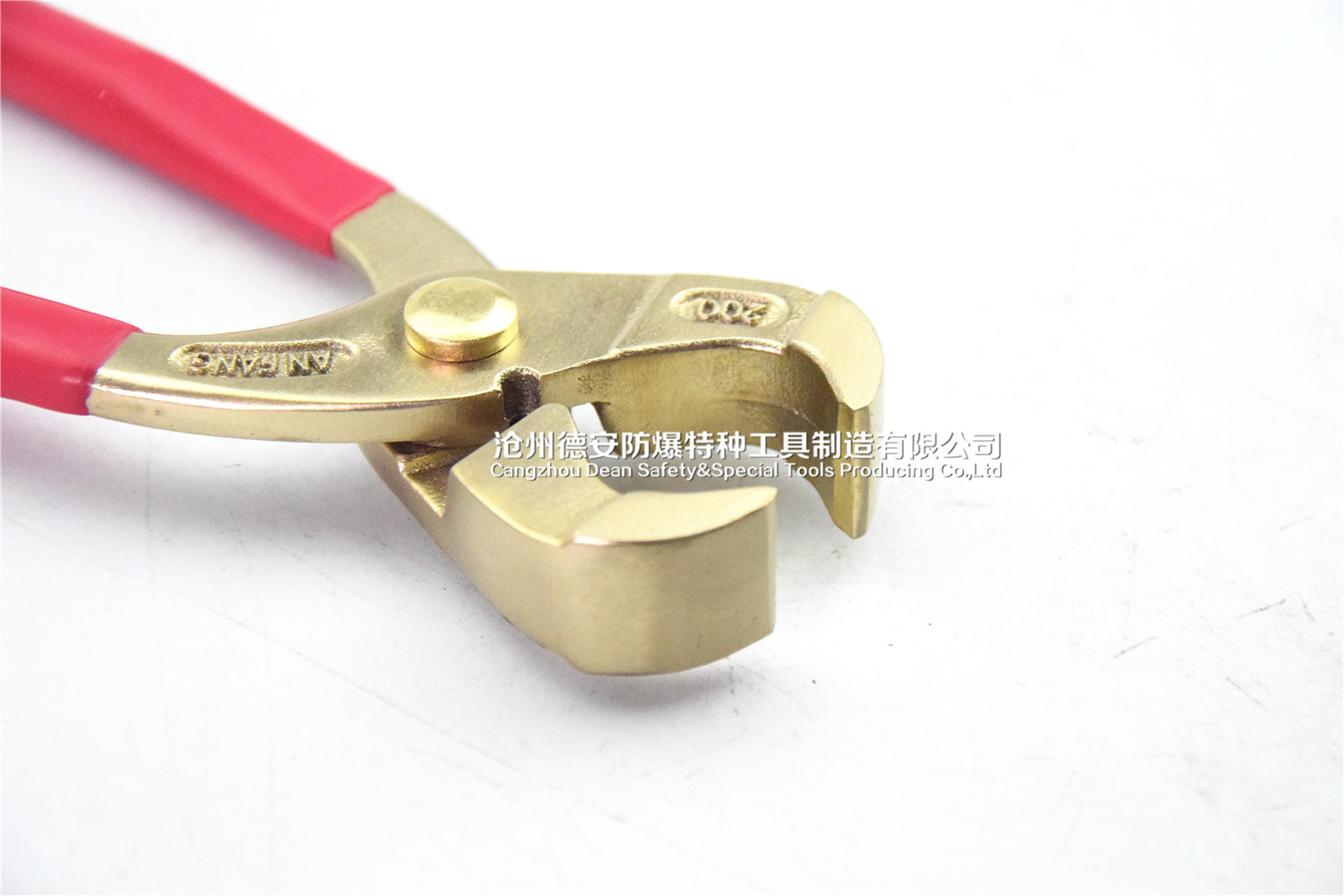

Professional Non-Sparking Pincer
This specialized pincer is engineered from high-grade Beryllium Copper alloy, specifically designed for use in hazardous environments where flammable or explosive atmospheres are present. It combines the functionality of a traditional tower pincer or carpenter's pincer with critical safety features, including non-sparking, non-magnetic, and rust-resistant properties. Ideal for professionals in petrochemical, mining, and aerospace industries.
Material Composition
Material Breakdown
| Component | Percentage |
|---|---|
| Beryllium (Be) | 1.8% - 2% |
| Nickel (Ni) | 0.1% - 0.6% |
| Other elements | < 0.6% |
| Copper (Cu) | Rest |
Technical Specifications
Mechanical Properties
283 HB
Hardness (Min)
365 HB
Hardness (Max)
105 kgf/mm2
Breaking Strength (Min)
120 kgf/mm2
Breaking Strength (Max)
Key Features
Safety Attributes
Spark ProofNon-MagneticRust Resistant
Applications
Suitable Industries
- Petrochemical Industry
- Mining Operations
- Gas Stations
- Railway Maintenance
- Aerospace Industries
- Clean Rooms
- Pharmaceutical Manufacturing
- Shipyards
- Laboratories
- Desalination Plants
