NiMH Rechargeable Battery 1.2V
This NiMH rechargeable battery has a voltage of 1.2V. It is suitable for various electronic devices needing a compact and reliable power source.
Technical Specifications
Overview
Compact Power Solution

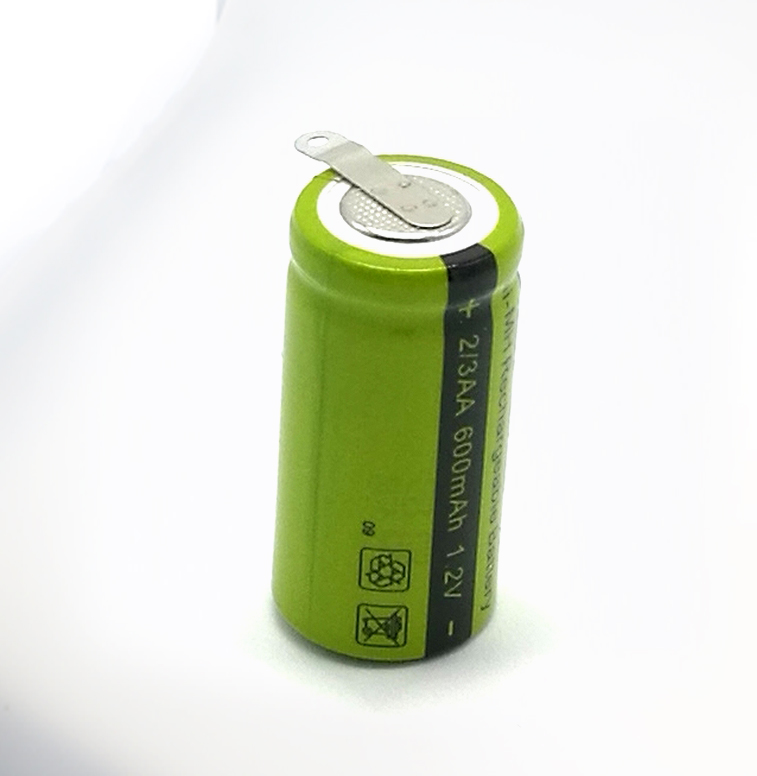

This 2/3AA NiMH rechargeable battery offers a reliable power solution for compact electronic devices. With a nominal capacity of 600mAh and a 1.2V output, it is designed for consistent performance in various applications. The robust construction and flexible charging options make it a versatile choice for portable electronics and energy storage needs.
Electrical Specifications
Voltage Metrics
1.5 V
Charging Voltage
1 V
Discharge Termination
- Nominal Voltage
- 1.2 V
- Nominal Capacity
- 600 mah
- Internal Resistance
- 40 mΩ
Charging & Performance
Charging & Discharge Modes
| Mode | Specification |
|---|---|
| Standard Charge | 0.1C for 16 hours |
| Fast Charge | 0.5C for 2.4 hours |
| Standard Discharge | 0.2C to 1.0V |
| Fast Discharge | 5C to 0.8V |
Environmental & Physical
Operating Temperature
- Charging: 0 to 45 °C
- Discharge: -10 to 60 °C
Storage Temperature Range
| Duration | Range |
|---|---|
| 1 Year | -20 to +25 °C |
| 6 Months | -20 to +35 °C |
| 3 Months | -20 to +45 °C |
Physical Characteristics
12 g
Weight
- Casing Material
- PVC
