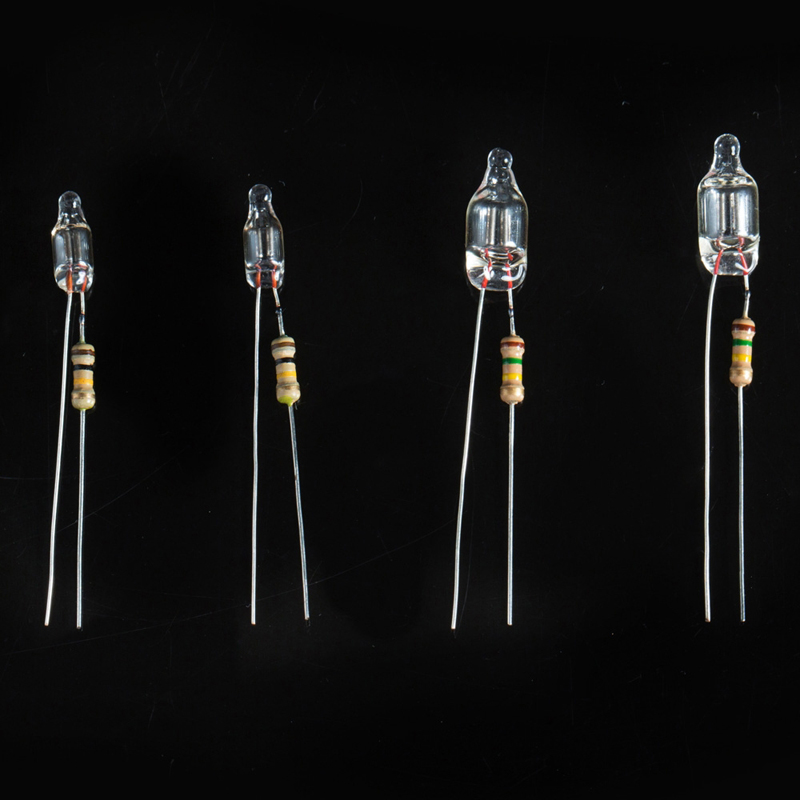

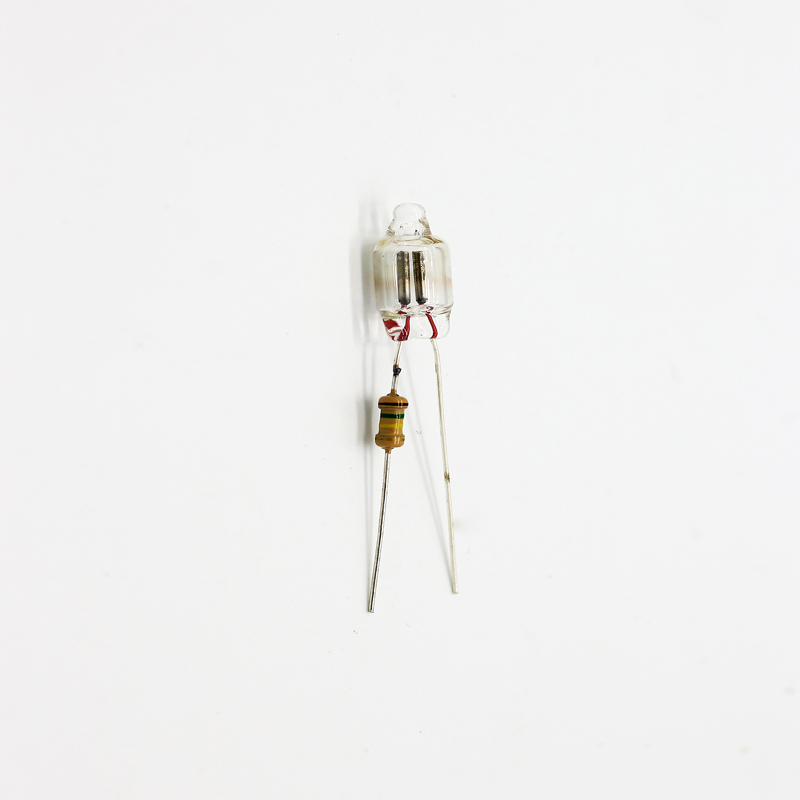

Neon Indicator Lamp with Integrated Resistor
Miniature neon lamps are pre-wired with a resistor attached using a butt-welding technique. These lamps are commonly used as indicator lights in electronic circuits and appliances.
Technical Specifications
Overview
Neon Indicator Lamp with Integrated Resistor
These neon indicator lamps feature an integrated resistor, offering a ready-to-use solution for home appliances and electronic equipment. Utilizing reliable butt-welding technology, the assembly ensures a secure electrical connection between the lamp and the current-limiting resistor. Available in various sizes and brightness levels, these components are designed for high-volume, professional-grade applications.
Technical Specifications
Available Lamp Sizes (mm)
- 3x10
- 4x10
- 5x13
- 6x13
- 6x16
- 6x18
- 6x20
- 6x22
- Brightness & Color Options
- Orange (Standard)Orange (Medium)Red (High)Red (Super High)GreenBlue
- Integrated Resistor
- 1/4W 150k, 1/4W 180K (custom values available)
- Welding Method
- Butt welding
Compliance & Quality
Certifications
CEROHSREACH
Logistics & Supply
Supply Ability
2,500,000 pcs
Daily Production Capacity
Order Quantities
| Type | Quantity |
|---|---|
| MOQ (Minimum Order Quantity) | 10,000 PCS |
| MPQ (Minimum Package Quantity) | 100, 200, or 500 PCS |
- Shipping Information
- Nearest port: Shanghai
