Natural Gas Processing and Distribution Equipment
This equipment provides a comprehensive solution for natural gas processing and distribution. The modular system supports gas compression, processing, and distribution for industrial environments.
Technical Specifications
Overview
Integrated Natural Gas Industrial Solutions
This comprehensive equipment suite covers the complete natural gas value chain, from wellhead conditioning and processing to distribution and power generation. Designed for high reliability and efficiency, these modular systems include advanced filtration, separation, and compression technologies suitable for demanding industrial environments. Our solutions support various applications, including gas gathering, storage, and filling stations, ensuring optimal performance and safety standards.
Gas Processing & Separation

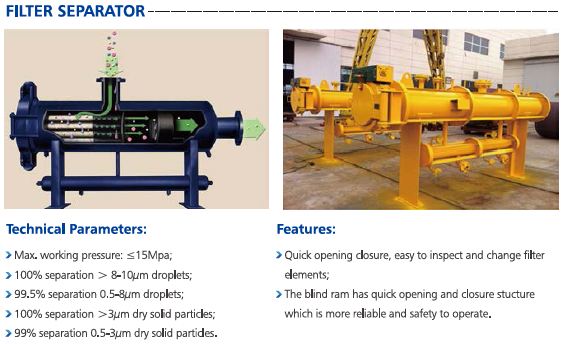

Filter Separator Performance
| Metric | Specification |
|---|---|
| Max Working Pressure | ≤15 MPa |
| Droplet Separation (>8-10µm) | 100% |
| Droplet Separation (0.5-8µm) | 99.5% |
| Solid Particle Separation (>3µm) | 100% |
| Solid Particle Separation (0.5-3µm) | 99% |

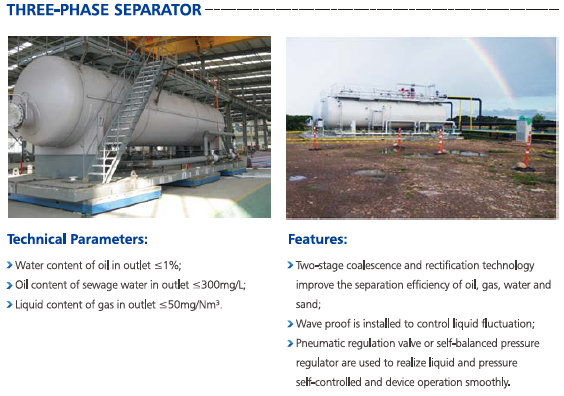

Three-Phase Separator Efficiency
1 %
Max Water Content in Oil Outlet
300 mg/L
Max Oil Content in Sewage Water
50 mg/Nm³
Max Liquid Content in Gas Outlet
Power Generation

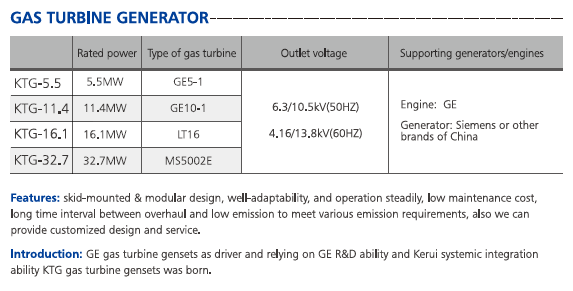

Gas Turbine Generator Range
- 5.5 MW Output
- 11.4 MW Output
- 16.1 MW Output
- 32.7 MW Output

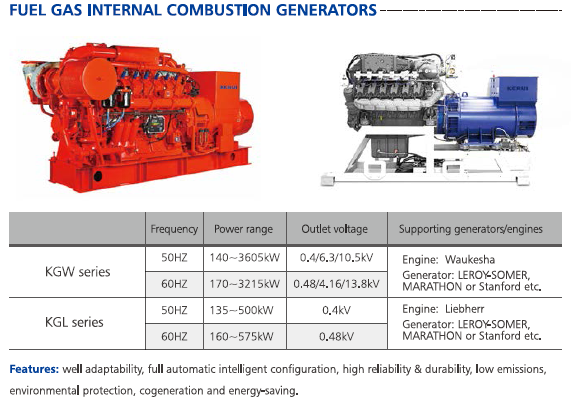

Fuel Gas Internal Combustion Series
| Series | Power Range (50Hz) | Power Range (60Hz) |
|---|---|---|
| KGW Series | 140-3605 kW | 170-3215 kW |
| KGL Series | 135-500 kW | 160-575 kW |
Station Equipment
Filling Station Equipment
CNG Compressor (L-type)CNG Compressor (D-type)LNG Filling StationL-CNG Filling StationGasification Station
- Skid-Mounted Systems
- Wellhead Gas TreatmentTEG DehydrationMolecular Sieve DehydrationDesulphurization
Pressure Vessels & Infrastructure
Pressure Vessels
- Storage Tank
- Filter Separator
- Pig Receiving/Serving Barrel
- CNG Tube Bundle Container
- Tank Container
Transportation & Distribution Support
- Pressure Regulating Units
- Natural Gas Valves
- Natural Gas Pipe Fittings
- Gas Alarm Apparatus
- Gas Meters
