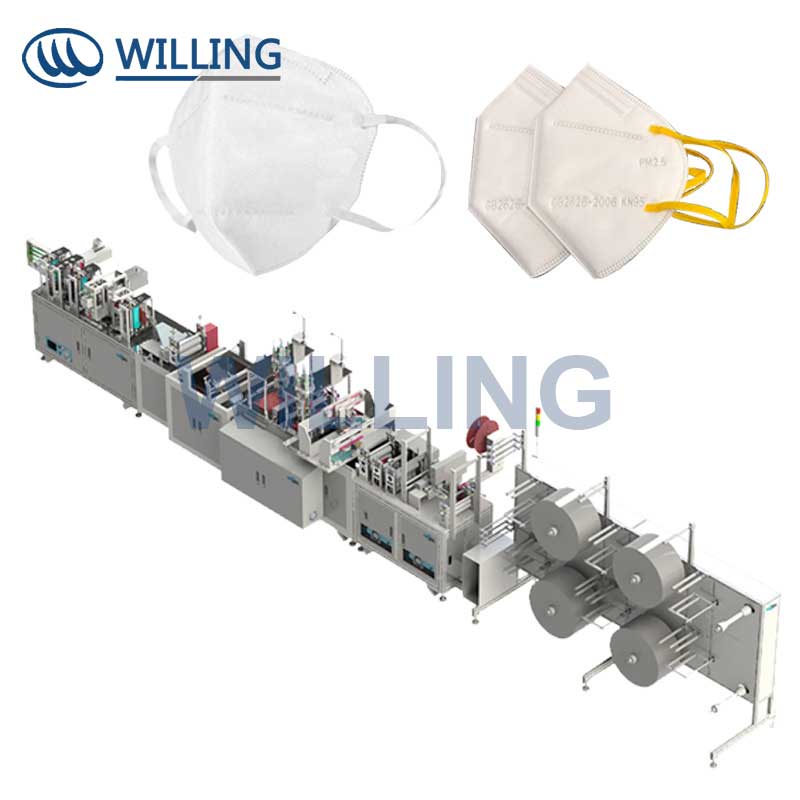

N95 Respirator Production Machine
This machine is designed for the automated production of N95 respirators. Its features include material feeding, folding, nose clip insertion, ear loop welding, and mask forming.
Technical Specifications
Overview
High-Efficiency N95 Production Line
This fully automatic folding mask production line is engineered for the high-speed manufacturing of N95 respirators. Utilizing advanced PLC and touch-screen controls, the system manages the entire process from multi-layer non-woven fabric feeding to final ultrasonic welding and cutting. Designed for precision and stability, it ensures consistent output with minimal defect rates, making it an ideal solution for medical, electronic, and industrial PPE manufacturing.
Performance Metrics
Production Speed
60 pcs/min
Max Speed
2 %
Defect Rate
Technical Specifications
- Machine Dimensions
- 12000 x 1500 x 1900 mm
- Machine Weight
- 2500 kg
- Power Requirements
- AC380V, 3phase, 50/60Hz
- Power Consumption
- 15 Kw
- Demand Pressure
- 0.7 Mpa
Product Capability
- Supported Mask Types
- N954-5 LayersFolding Mask
- Finished Mask Size
- 155 x 106 mm
Operating Environment
Environment Requirements
| Parameter | Value |
|---|---|
| Temperature | 10-35°C |
| Humidity | 5-35% HR |
| Cleanliness | ≥ 100,000 |
