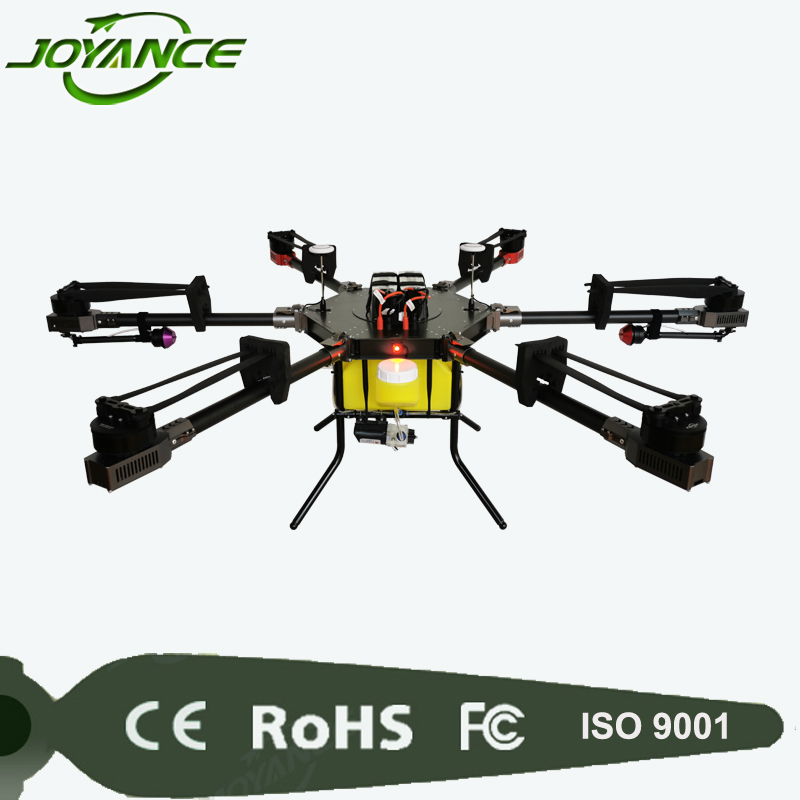

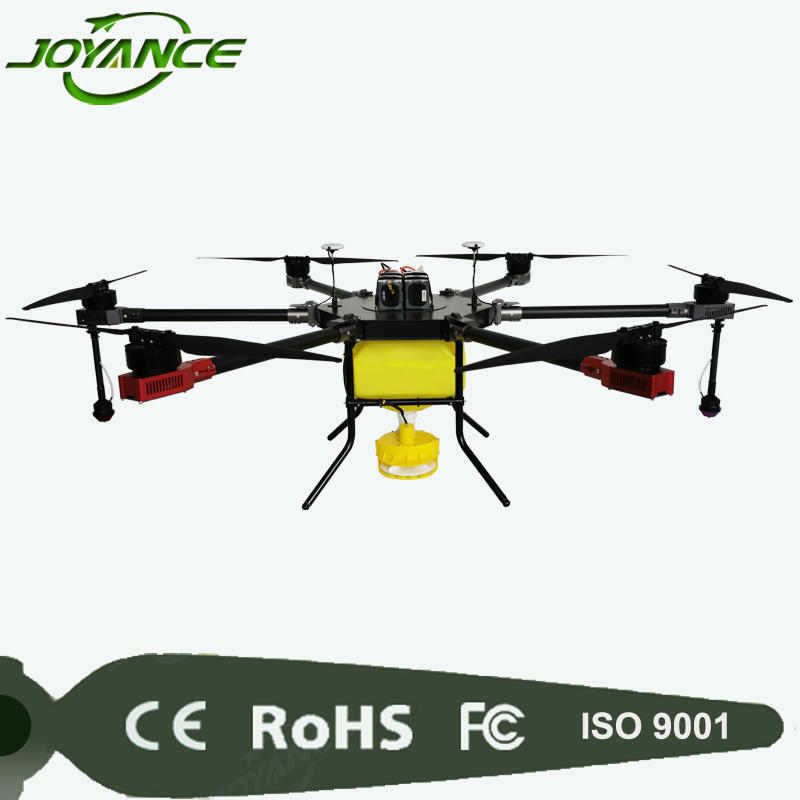

Multi-Rotor Agricultural Spraying Drone
This multi-rotor drone is designed for precise spraying applications in agriculture. It features autonomous flight capabilities and GPS-guided navigation to ensure uniform coverage of pesticides, herbicides, and fertilizers.
Technical Specifications
Overview
High-Efficiency Agricultural Spraying Drone
This multi-rotor agricultural drone is engineered for precision crop management, offering a 15-liter pesticide load capacity and impressive spraying efficiency of up to 8 hectares per hour. Designed for durability and ease of transport, the unit features a foldable frame and robust construction capable of operating in diverse environmental conditions. It is a fully assembled, ready-to-fly solution that integrates advanced autonomous flight capabilities to optimize chemical application and improve crop yields.
Performance Metrics
Key Performance Indicators
15 L
Pesticide Load
8 Hectares/hour
Max Spraying Efficiency
15 Min
Max Flight Time
1,000 M
Flying Radius
Technical Specifications
Weight & Dimensions
| Parameter | Value |
|---|---|
| Self Weight | 13.5 KG |
| Take-off Weight | 31 KG |
| Spread Size | W1.8 * L1.8 * H0.48 M |
| Folded Size | W0.7 * L0.7 * H0.63 M |
Operational Environment
- Work Temperature: -10 to 70 ℃
- Work Humidity: 0 to 90%
- Wind Resistance: 10 m/s
- Flying Height: 0 to 30 M
Spraying System
Spraying Capabilities
- Spray Width: 6-7 M
- Spray Speed: 0-8 M/S
- Spray Flow: 2-2.5 L/Min
- Nozzles: 2 centrifugal nozzles
Certifications & Compliance
- Certifications
- CEFCCRoHSISO 9001
