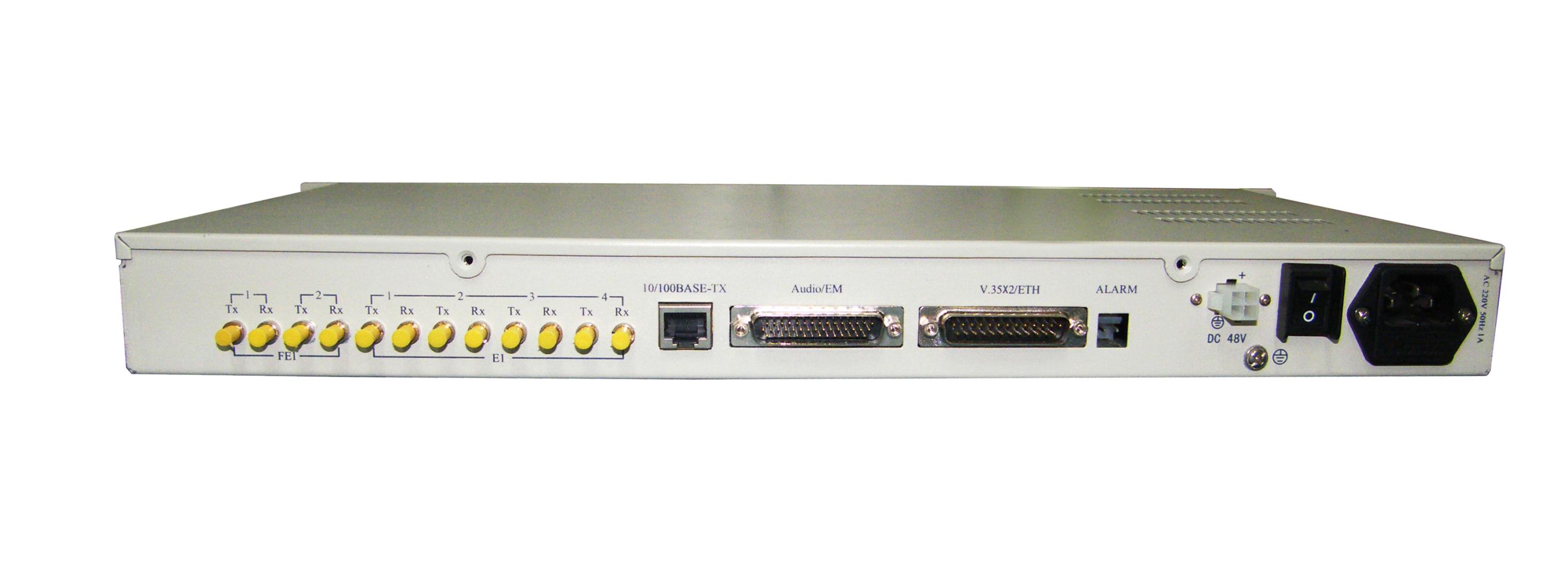

Multi-Functional Integrated Service Multiplexer
This multi-functional integrated service multiplexer serves as subscriber-side equipment. It integrates voice, data, and Ethernet services into a single platform, with multiple interfaces including FXO, FXS, and V.35.
Technical Specifications
Product Overview
Integrated Service Multiplexer
This multi-functional integrated service multiplexer is designed to consolidate audio, data, and video transmission into a single, high-efficiency system. It supports a wide array of international standard interfaces, ensuring seamless compatibility across diverse telecommunication infrastructures. With flexible software-based video configuration and a unified network management platform, it offers a reliable and manageable solution for complex network environments.
Technical Capabilities
Maximum Capacity
4 2M
Max 2M Capacity
16 channels
Max Voice Channels
- Supported Interfaces
- E110/100Base-TxV.35AudioVideo64KbpsV.35(N*64K)RS232/RS485FXO/FXSMagnet TelephoneHot Line TelephoneE&M
System Features
Redundancy Support
- Power supply card 1+1 redundancy
- Cross connection card 1+1 redundancy
Video Configuration
MPEGIIMPEGIVSoftware Configurable
- Management Platform
- Unified H7GMSW network management platform
Electrical Specifications
- Power Input Options
- AC 220VDC 48V
- Ethernet Service Capacity
- 2 channels
Monitoring and Indicators
System Status Indicators
- Power (PWR)
- Carrier/Remote (C/R)
- Loss of Signal/AIS (LOS/AIS)
- Loss of Frame/Multiframe (LOF/LOM)
- Remote Alarm (RA)
- Line Back (RLB/LLB)
- Channel Active
- Transmit/Receive Data (TD/RD)
- Power Alarm (PWR-ALM)
