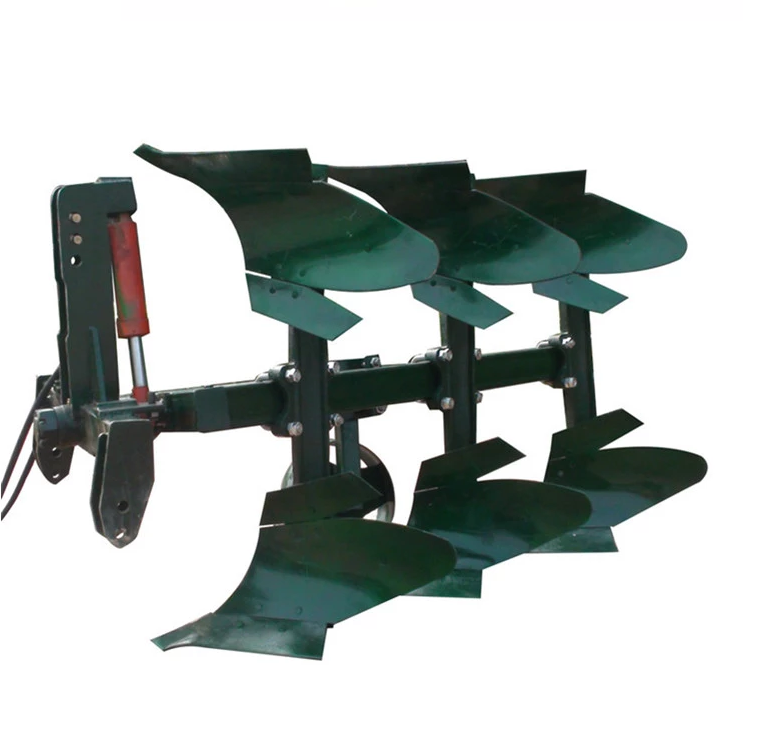

Multi-Bottom Agricultural Plow
This multi-bottom plow is designed for efficient soil preparation and cultivation. It cuts, lifts, and inverts soil, improving seedbed preparation and promoting optimal soil tilth.
Technical Specifications
Product Overview
Robust Soil Preparation
The Multi-Bottom Agricultural Plow is a heavy-duty implement engineered for efficient soil cultivation and seedbed preparation. It features a multi-bottom configuration that effectively cuts, lifts, and inverts soil, burying crop residue to promote optimal soil tilth. Designed for durability and performance, this plow is equipped with a hydraulic system for easy lifting and transport, making it a reliable choice for medium to large-scale farming operations.
Performance Metrics
Key Performance Indicators
270 mm
Max Working Depth
1,750 mm
Max Working Width
90 HP
Max Tractor Power
Technical Specifications

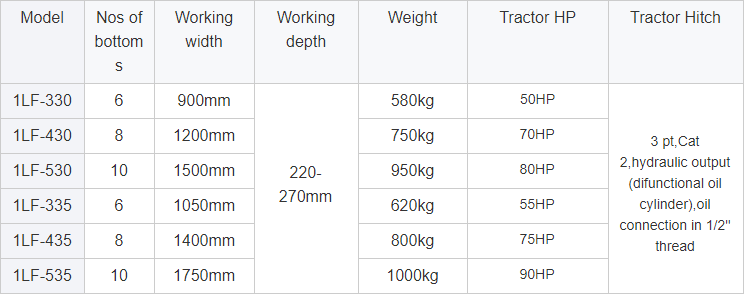

Model Specifications
| Model | Bottoms | Working Width | Weight | Tractor HP |
|---|---|---|---|---|
| 1LF-330 | 6 | 900mm | 580kg | 50HP |
| 1LF-430 | 8 | 1200mm | 750kg | 70HP |
| 1LF-530 | 10 | 1500mm | 950kg | 80HP |
| 1LF-335 | 6 | 1050mm | 620kg | 55HP |
| 1LF-435 | 8 | 1400mm | 800kg | 75HP |
| 1LF-535 | 10 | 1750mm | 1000kg | 90HP |
- Tractor Compatibility
- 3-point Cat 2 HitchHydraulic Output1/2" Thread Connection
- Working Depth Range
- 220-270mm
