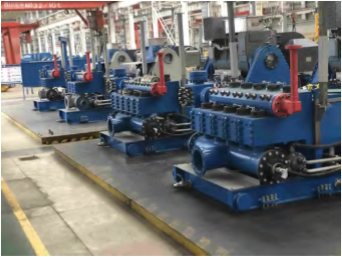

Mud Pump Unit with Direct Drive
This mud pump unit features AC motor direct drive, slide bearings, and compressor cooling technology. It is suitable for installation in various pump houses, trailers, and offshore drilling platforms.
Technical Specifications
Product Overview
Advanced Mud Pump Technology
These mud pump units feature AC motor direct drive technology, slide bearings, and compressor cooling for superior operational efficiency. Designed for demanding petroleum prospecting, they offer a 10-year lifespan for crossheads and slides, ensuring reduced long-term maintenance costs. The system includes a unique two-piece piston rod for easy maintenance and a comprehensive monitoring system for equipment and personnel safety.
- Key Advantages
- AC Motor Direct DriveCompressor Cooling10-Year Crosshead LifeHydraulic Valve Seat PullerLightweight DesignIntegrated Monitoring System
Performance Specifications
Technical Parameters by Model
| Parameter | 1600HP | 2200HP | 2400HP | 3000HP |
|---|---|---|---|---|
| Rated Power (HP) | 1600 | 2200 | 2400 | 3000 |
| Max Stroke (SPM) | 188 | 188 | 188 | 188 |
| Max Displacement (GPM) | 1127 | 1878 | 1878 | 1878 |
| Max Discharge Pressure (psi) | 7500 | 7500 | 7500 | 7500 |
| Weight (kg) | 27000 | 36500 | 37000 | 38000 |
Technical Details
- Fluid End Form
- L split type cylinder
- Max Liner Diameter
- 177.8 mm
- Valve Chamber Size
- API 6#
- Suction Inlet Size
- 12 inch
Lube System Options
Available Lube System Plans
- Plan 1: With chiller unit (recommended for superior cooling and compact footprint)

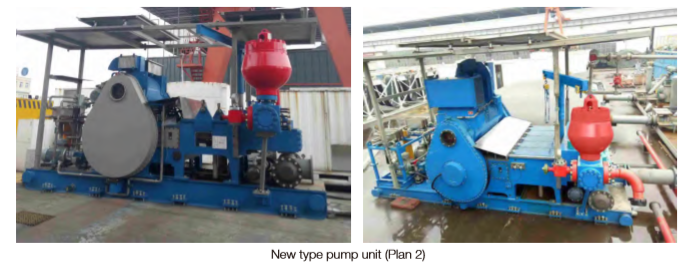

- Plan 2: Without chiller unit (flexible cooling options)
