Technical Specifications
Overview

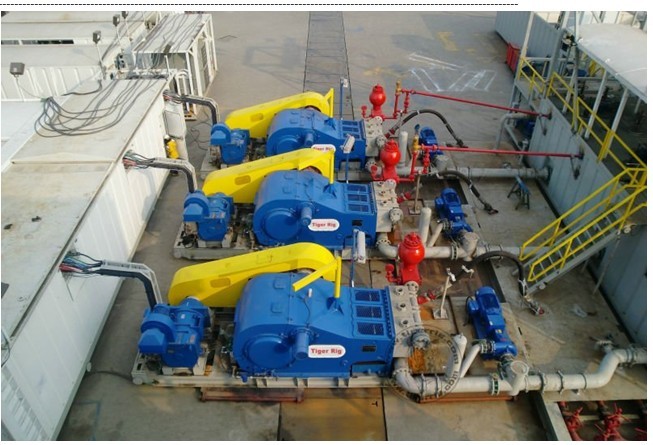

High-Performance Mud Pump Package
This complete mud pump package is engineered for demanding oilfield applications, featuring an F-1600 mud pump built to API 7K standards. The system includes a robust master skid design with extended protection and a specialized loading hitch for efficient transport. It is fully integrated with a high-capacity electric motor, belt transmission, and charging pump to ensure reliable fluid circulation during drilling operations.
Mud Pump Specifications
Performance Metrics
1,193 kW
Rated Power
120 spm
Rated Stroke
45.42 L/s
Max Displacement
Pump Details
| Feature | Specification |
|---|---|
| Model | F-1600 |
| Max Working Pressure | 34.5 MPa |
Motor Specifications
Electrical Performance
800 kW
Rated Power
750 V
Rated Voltage
1,150 A
Rated Current
Technical Data
- Model: YZ10
- Cooling: Forced air
- Excitation: Separately
- Rated Rotating Speed: 1060/min
- Max Rotating Speed: 1500 r/min
- Max Torque: 9450 N.m
- Efficiency: 92.7%
Transmission & Auxiliaries
Belt Transmission
- Belt Type: 25J(5)-8000
- Transmission Ratio: 2.377
- Small Pulley Diameter: 500m
- Big Pulley Diameter: 1182m
- Charging Pump
- Model SB6”x8”x12 1/2”, Rated Power 55KW
Design & Logistics
Skid & Transport
- Skid Type: Three runner oilfield skid
- Loading Hitch Length: 7'-10"
- Total Weight: 45079 kg
- Compliance
- API 7K
