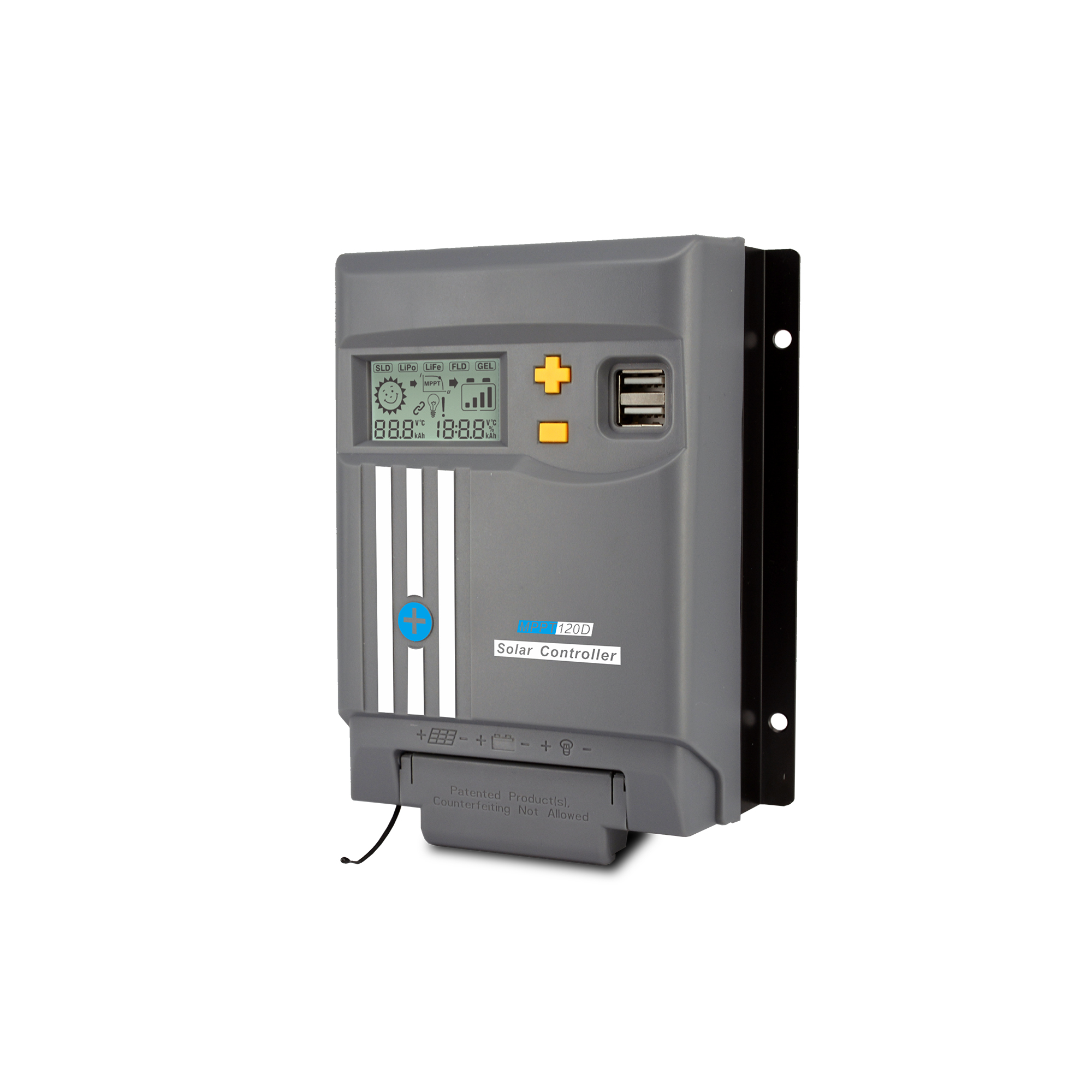

MPPT Solar Charge Controller with LCD and USB
This MPPT solar charge controller optimizes battery charging from solar panels, featuring an LCD display for monitoring. It includes a USB output for charging devices and offers multi-stage charging.
Technical Specifications
Overview
Intelligent MPPT Solar Charge Controller
This advanced MPPT solar charge controller utilizes high-efficiency DC/DC conversion and MCU technology to intelligently adjust the solar array's working point. By continuously tracking the maximum power point, it improves solar panel efficiency by 5% to 30% compared to traditional PWM controllers. Designed for reliability, it features a clear LCD display for real-time monitoring and integrated USB output for convenient device charging.
Technical Specifications
Max Charging Current
- 10
- 20
- 30
- 40
- System Rated Voltage
- 12V/24V Auto recognized
- Battery Voltage Range
- 8V-32V
- Max PV Input Voltage
- 100 V
Performance
Efficiency Metrics
99 %
MPPT Efficiency
98 %
Peak Conversion
Features
Charging Modes
MPPTAbsorptionFloatEqualization
- Compatible Battery Types
- SealedFloodedGELLiFePO4Li(NiCoMn)O2
Protection
Safety Protections
- High/Low voltage disconnection & recovery
- Overload protection
- Short circuit protection
- Solar panel reverse polarity protection
- Battery reverse polarity protection
- Reverse current protection at night
- USB output overheat & short circuit protection
