Mounted Disc Plow for Tractors
This disc plow is designed for efficient soil cultivation, fully suspended and compatible with four-wheel tractors. The discs rotate to effectively till the soil, making it suitable for land with weeds, stems, and frictional soil.





Technical Specifications
Product Overview

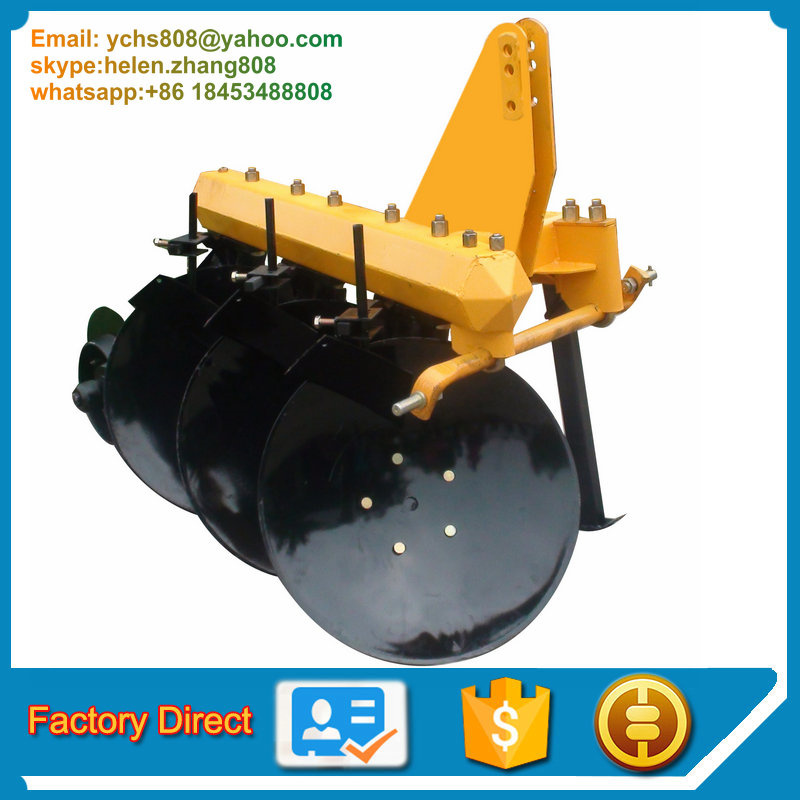

High-Efficiency Mounted Disc Plow
This mounted disc plow is a robust agricultural implement designed for efficient primary tillage and soil preparation. It features a heavy-duty frame and hardened steel discs that effectively cut through soil, weeds, and crop residue to create an optimal seedbed for planting. The adjustable design allows for precise depth and angle control, ensuring versatility across diverse soil types and farming conditions.
Technical Specifications
Model Specifications
| Model | Width (mm) | Discs | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
Operational Details
- Working Depth
- 250~300 mm
- Linkage System
- Three-point suspension II type
- Key Features
- Adjustable DepthAdjustable AngleHardened Steel DiscsHeavy-duty Frame
