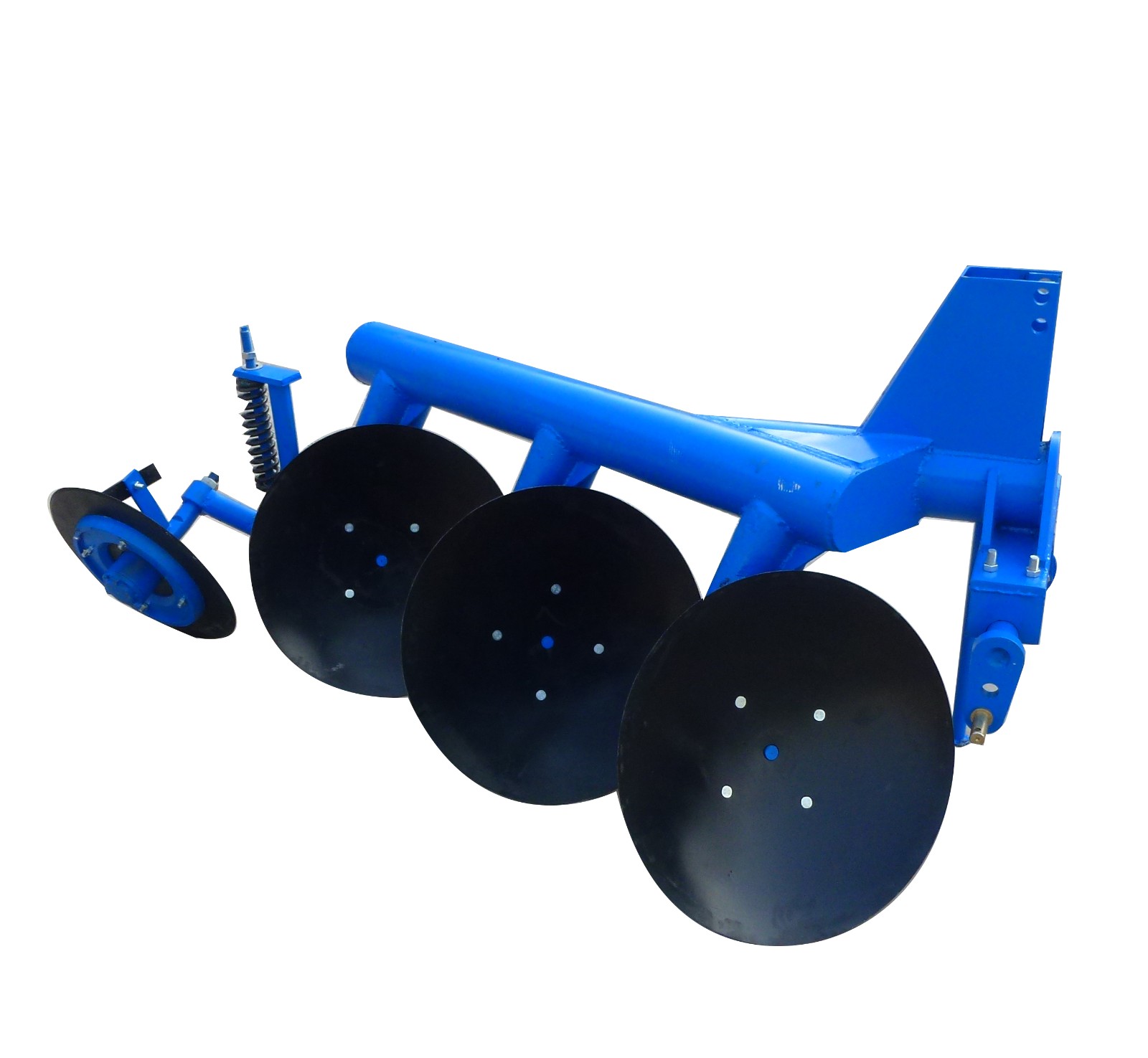

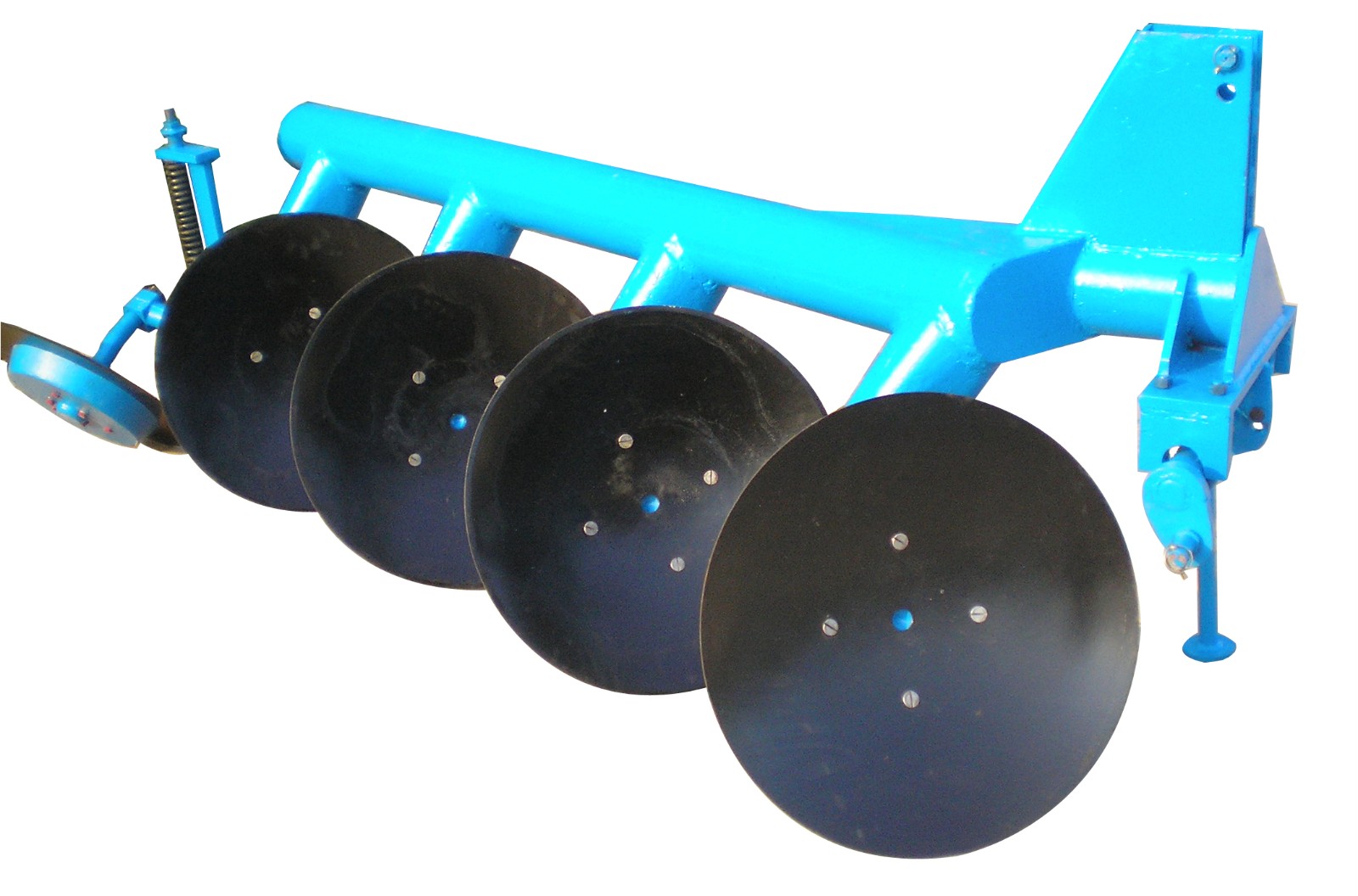

Mounted Disc Plough for Tractors
This mounted disc plough is designed to cut through stems and roots with ease. It features a round frame and is suitable for use with 4-wheel tractors.
Technical Specifications
Overview
Professional Mounted Disc Plough
This mounted disc plough is specifically engineered for four-wheel tractors, offering superior performance in challenging soil conditions. Its design effectively manages land containing weeds, stems, and frictional soil with debris, preventing blockages or grass winding. The implement features a robust round frame construction, ensuring durability and consistent soil turning with minimal resistance.
Technical Specifications
Performance Metrics
100 cm
Working Width
25 cm
Max Working Depth
450 kg
Machine Weight
0.7 ha/h
Max Productivity
Tractor Compatibility
70 hp
Max Power Required
50 hp
Min Power Required
Disc Configuration
| Feature | Specification |
|---|---|
| Number of Discs | 3 |
| Disc Diameter | 66 cm |
| Mounting Type | Three-point linkage |
Features & Benefits
Key Operational Advantages
- Anti-winding design prevents grass accumulation
- Non-blocking operation in heavy soil
- Effective at cutting stems and roots
- Reduced working resistance for fuel efficiency
- Robust round pipe frame construction
- Suitable Soil Conditions
- Sticky heavy clayHigh-yield manure landWheat stubble fieldsRice stubble fieldsFallow landTerraced plots
