Motor Protection Relay with Overload and Underload Protection

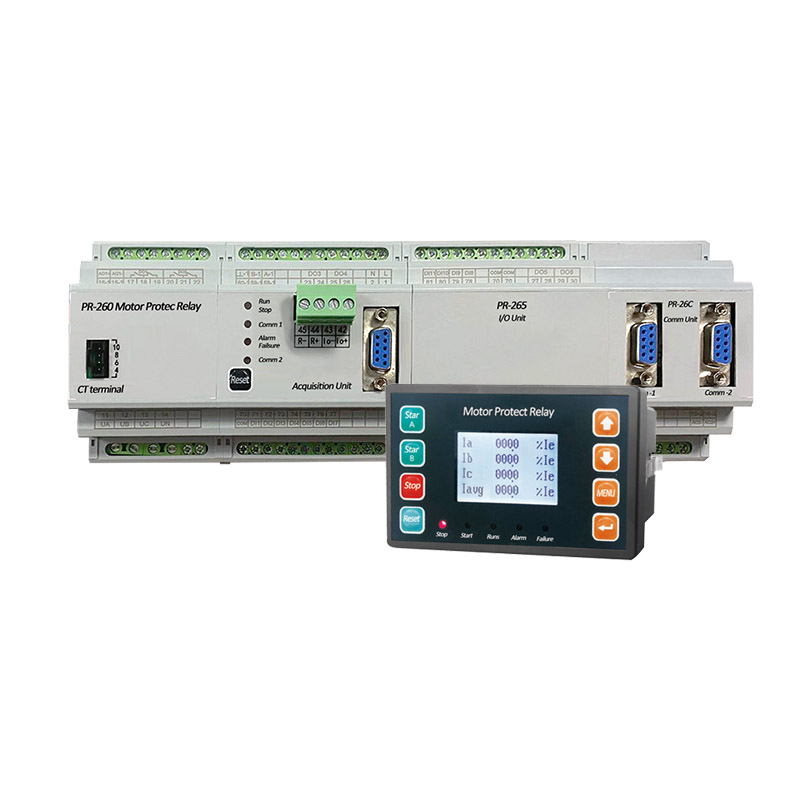

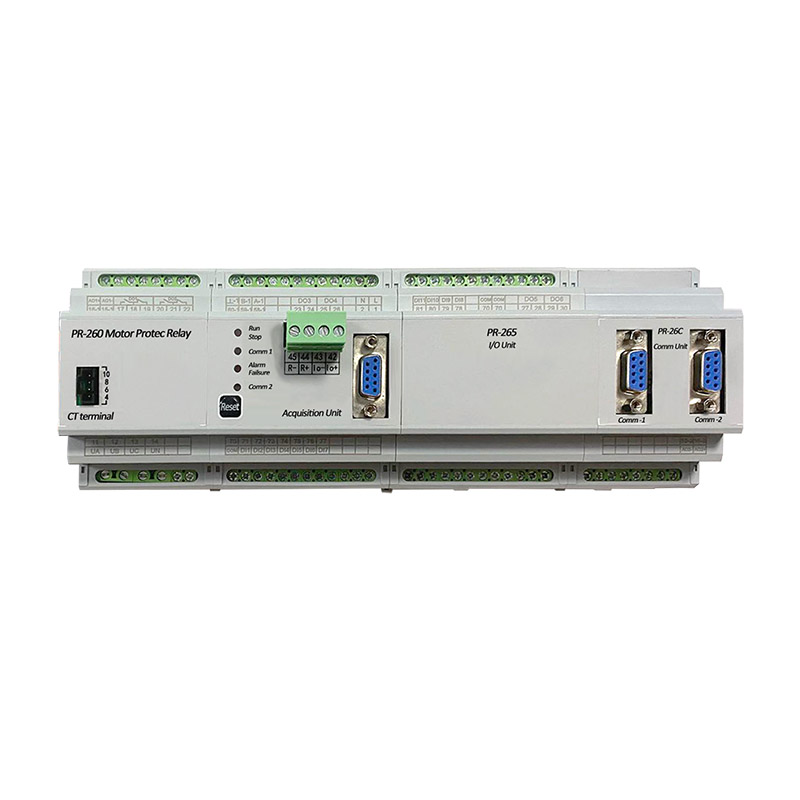

This motor protection relay provides comprehensive protection against overload, underload, single-phasing, and leakage. It features CT terminal connections for current transformer connections and LED indicators for status monitoring.
Technical Specifications
Product Overview
Comprehensive Motor Protection
The PR265 motor protector is an advanced, all-in-one solution for monitoring 3-phase power lines and protecting motors of any size. It automatically detects abnormal conditions to trigger a shutdown, ensuring operational safety and equipment longevity. With built-in current sampling and optional communication capabilities, it provides a versatile and cost-effective replacement for traditional single-function relays.
Electrical Specifications
- Auxiliary Power
- 85-265Vac/dc
- Rated Current (Internal CT)
- 200 A
- Supported Motor Voltages
- AC220VAC380VAC660V
Performance Metrics
Measurement Accuracy
0.5 %
Current Accuracy
0.5 %
Voltage Accuracy
1 %
Temp Accuracy
I/O and Communication
Input/Output Capacity
| Feature | Standard | Maximum |
|---|---|---|
| Digital Inputs | 4 | 11 |
| Digital Outputs | 2 | 6 |
Environmental Ratings
- Operating Temperature
- -10°C to +55°C
- Relative Humidity
- < 93% RH
