Modular Power Distribution Block

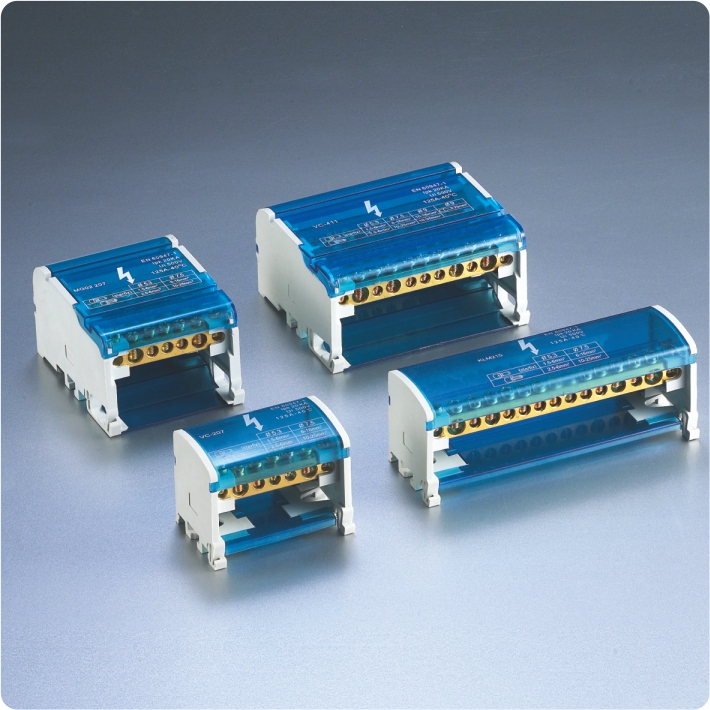

These modular distribution blocks are designed for efficient and safe electrical power distribution. They feature a transparent blue cover for easy visual inspection and accommodate a range of wire sizes with secure connections.
Technical Specifications
Overview
Modular Power Distribution Blocks
These modular power distribution blocks are designed for safe and efficient electrical power distribution in industrial control panels and distribution boards. Featuring a transparent, self-extinguishing protective cover, they allow for easy visual inspection while ensuring robust insulation protection for each bar. The flexible design supports mounting on DIN-rails or directly onto plates with screws, offering versatile installation options for various electrical setups.
Technical Specifications
Rated Voltage
690 V
Insulation Voltage (Ui)
Mounting Methods
- Fix on DIN-rail
- On plate with 2 screws
Key Features
Insulated back plateTransparent protective coverSelf-extinguishing materialLabelable bars
- Standards Compliance
- EN60947-1EN 60947-7-1
- Short Circuit Current (ICC)
- 20 kA peak
Model Selection Table
Available Configurations
| Item No. | Bus Bars | Conductors | Dimensions (LxWxH) |
|---|---|---|---|
| VC-207 | 5xφ5.3mm, 2xφ7.5mm | 2 | 65x42x50mm |
| VC-211 | 7xφ5.3mm, 2xφ7.5mm, 2xφ8.5mm | 2 | 100x42x50mm |
| VC-215 | 11xφ5.3mm, 2xφ7.5mm, 2xφ8.5mm | 2 | 133x42x50mm |
| VC-407 | 5xφ5.3mm, 2xφ7.5mm | 4 | 65x88x50mm |
| VC-411 | 7xφ5.3mm, 2xφ7.5mm, 2xφ8.5mm | 4 | 100x88x50mm |
| VC-415 | 11xφ5.3mm, 2xφ7.5mm, 2xφ8.5mm | 4 | 133x88x50mm |
