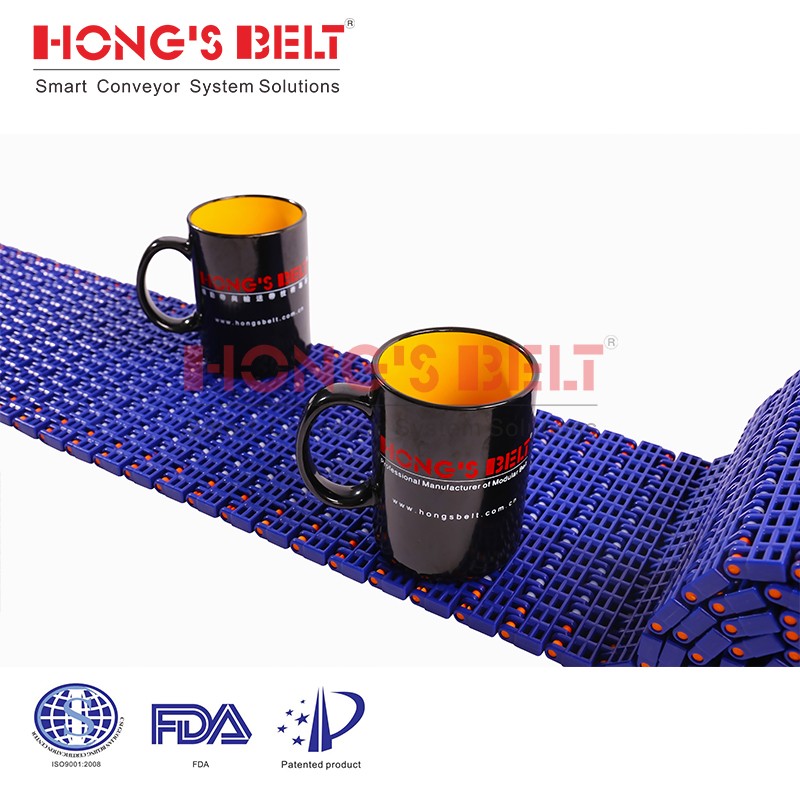

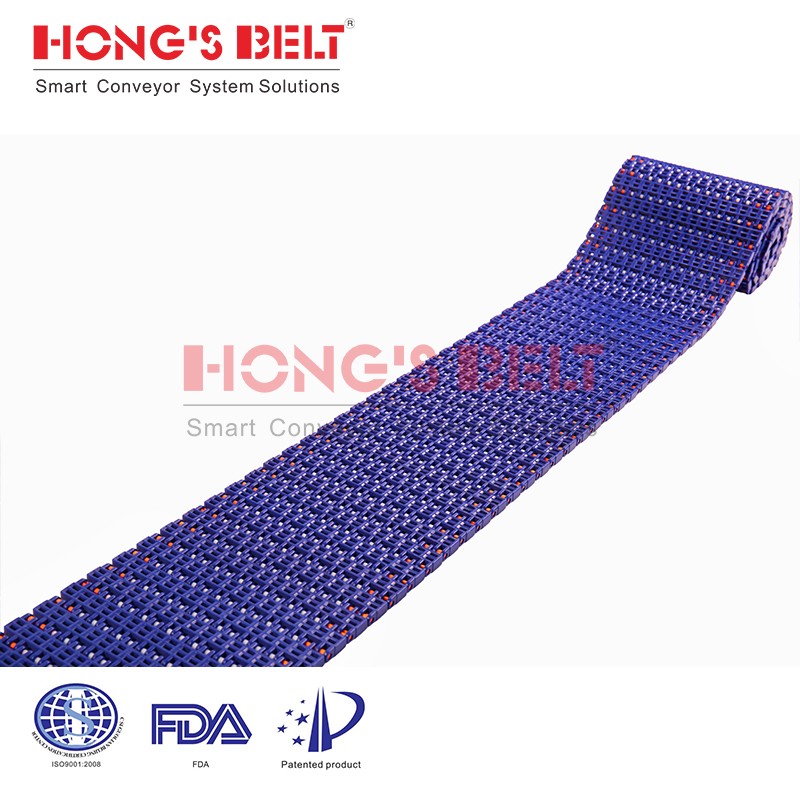

Modular Plastic Conveyor Belt for Seafood Processing
This modular plastic conveyor belt is designed for seafood processing applications. It offers easy cleaning and maintenance due to its modular design.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is specifically engineered for demanding environments like seafood and food processing. Its durable, modular design allows for easy assembly, maintenance, and repair, while the open-grid structure facilitates efficient drainage and airflow. Built to withstand harsh conditions, it offers excellent resistance to chemicals and abrasion, ensuring long-lasting reliability and operational efficiency.
Technical Specifications
Maximum Load Capacity
1.2 tons/m²
Max Load
- Model Type
- HS-3000B
- Pitch
- 25.4 mm
- Thickness
- 9.8 mm
- Minimum Width
- 100 mm
- Open Area
- 25 %
- Rod Diameter
- 4.9 mm
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Sprocket Specifications
| Feature | Specification |
|---|---|
| Sprocket Size | 20T |
| Bore Type | Square and Round |
- Material Options
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Compliance & Features
Certifications
FDA ApprovedEU Approved
Key Advantages
- Floating in water
- Suitable for food defrosting
- Maintenance-free design
- Easy to clean
- High load capacity
Applications
- Food Industry Applications
- MeatPoultrySeafoodBakerySnack FoodFruit & Vegetables
- Industrial Applications
- AutomotiveTire ManufacturingPackagingPrinting/PaperPostalCorrugated CardboardCan ManufacturingPET ManufacturingTextile
