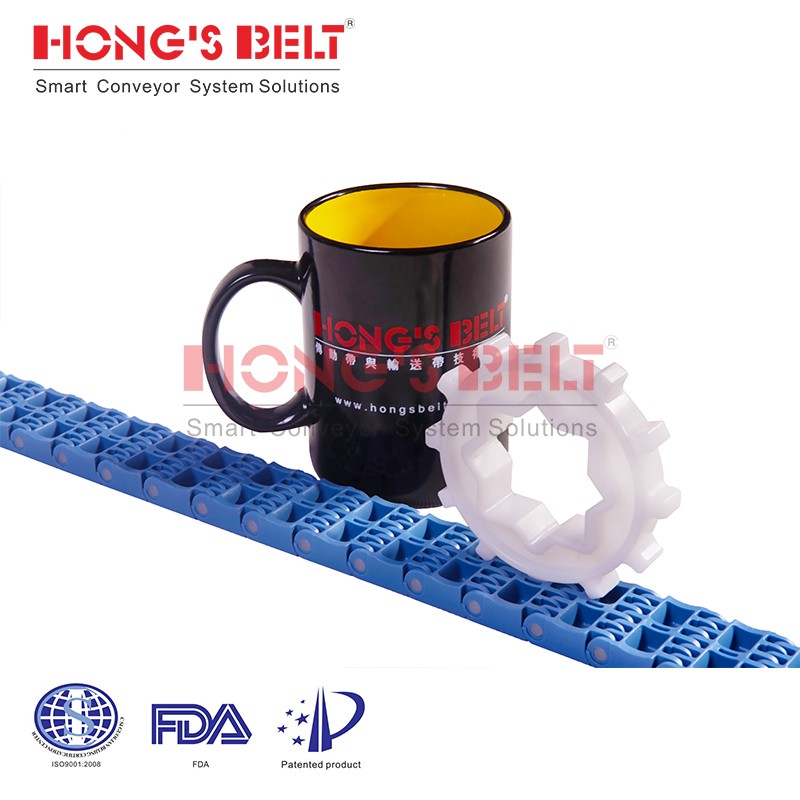

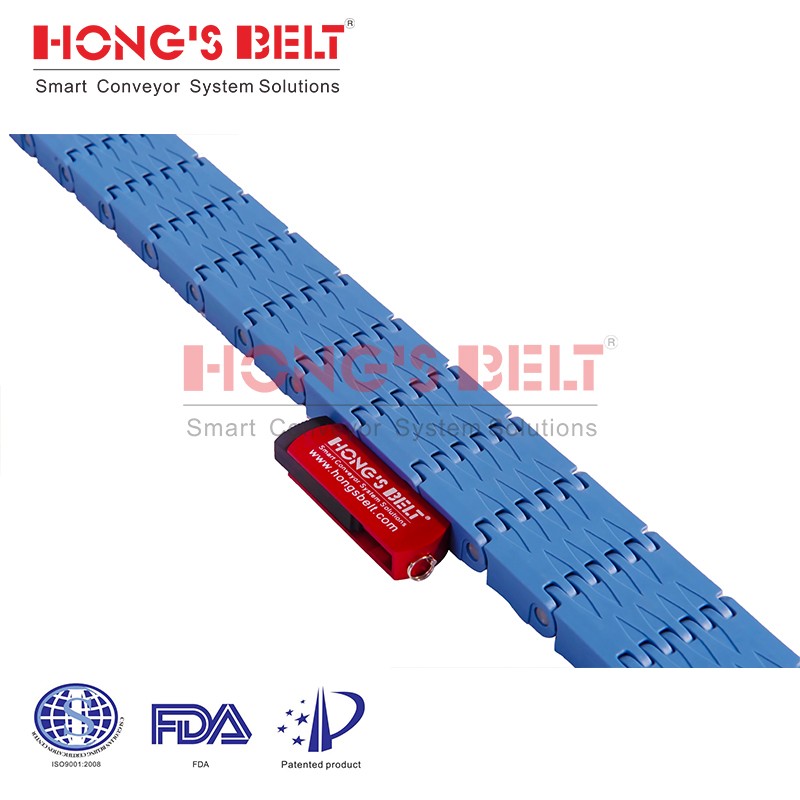

Modular Plastic Conveyor Belt 38mm Pitch for XY Systems
This modular plastic conveyor belt is designed for XY conveyor systems. It features a 38mm pitch and is constructed from durable plastic materials.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered for demanding industrial material handling, featuring a robust 38mm design suitable for XY conveyor systems. Constructed from durable materials with a 0% open area, it offers exceptional load-bearing capabilities of up to 1.2 tons per square meter. The system is designed for longevity, requiring minimal maintenance while providing versatile operation across a wide temperature range.
Technical Specifications
Maximum Load Capacity
1.2 tons/m²
Max Load
- Pitch
- 25.4 mm
- Thickness
- 12.5 mm
- Minimum Width
- 38 mm
- Rod Diameter
- 4.9 mm
- Open Area
- 0%
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Available Colors
WhiteBlueGrayNatureDark-brown
Sprocket Configuration
- Sprocket Size: 12T, 15T, 19T-Split
- Bore Type: Square and Round
- Available Materials
- PPPOMPEPA
Compliance & Features
Design Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve Capability | No |
- Regulatory Approvals
- FDAEU
Applications
Industry Applications
- Food Industry: Meat, Poultry, Sea Food, Bakery, Snacks, Fruits & Vegetables
- Automotive & Tire Manufacturing
- Packaging & Printing/Paper
- Postal & Logistics
- Corrugated Cardboard
- Can & PET Manufacturing
- Textile
