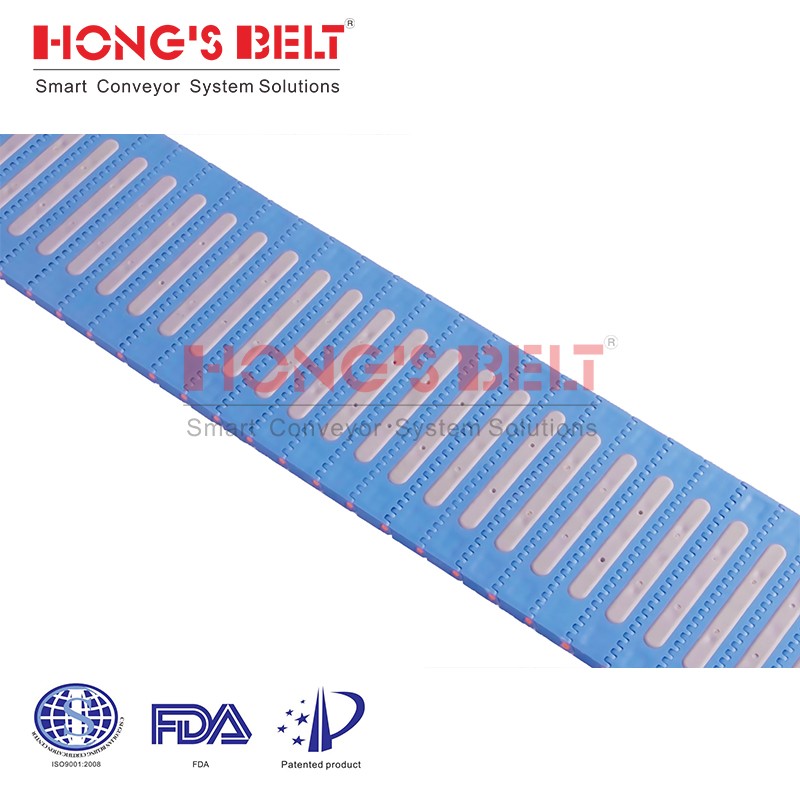

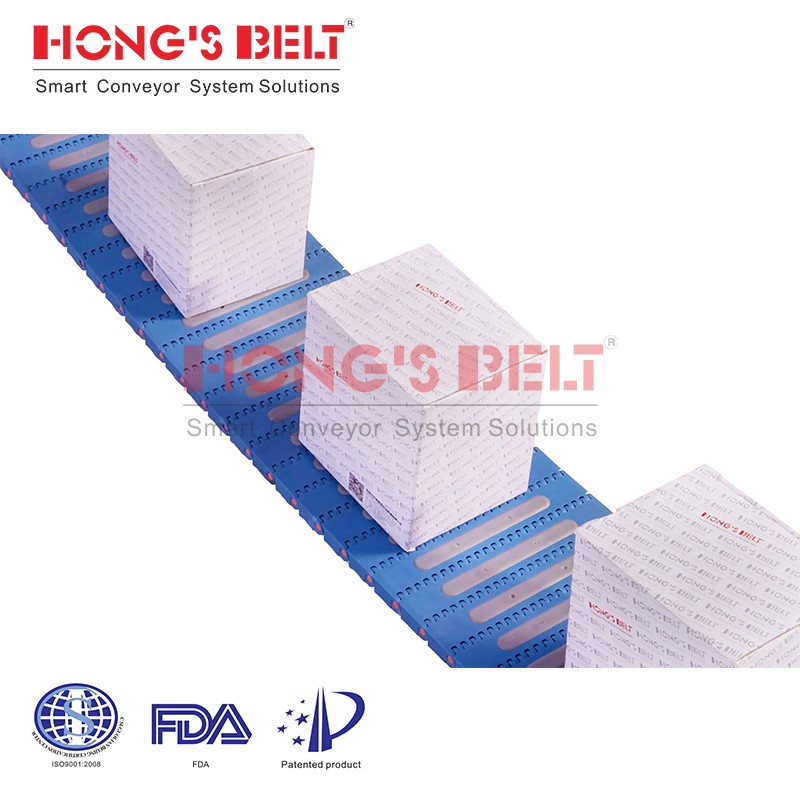

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is designed for efficient material handling. Its modular design allows for easy customization and maintenance.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered for versatile logistics and industrial applications. It features a robust, maintenance-free design that significantly extends service life compared to traditional belts. With food-grade material options and high load capacity, it is an ideal solution for both food processing and heavy-duty manufacturing environments.
Physical Dimensions
- Pitch
- 25.4 mm
- Thickness
- 12.5 mm
- Minimum Width
- 76 mm
- Rod Diameter
- 4.9 mm
Technical Specifications
Max Load Capacity
1.2 tons/m²
Max Load
- Open Area
- 0 %
- Working Temperature
- -40°C to 260°C
Construction & Material
Regulatory Compliance
FDA ApprovedEU Compliant
- Available Materials
- PPPOMPEPA
- Colors
- WhiteBlueGrayNatureDark-brown
Configuration & Features
Sprocket Configuration
| Feature | Details |
|---|---|
| Sprocket Sizes | 12T, 15T, 19T-Split |
| Bore Types | Square, Round |
Design Features
- Yes
- Yes
- Yes
Applications
Suitable Industries
- Meat & Poultry Processing
- Seafood Processing
- Bakery & Snack Food
- Fruit & Vegetable Handling
- Automotive & Tire Manufacturing
- Packaging & Printing
- Postal & Logistics
