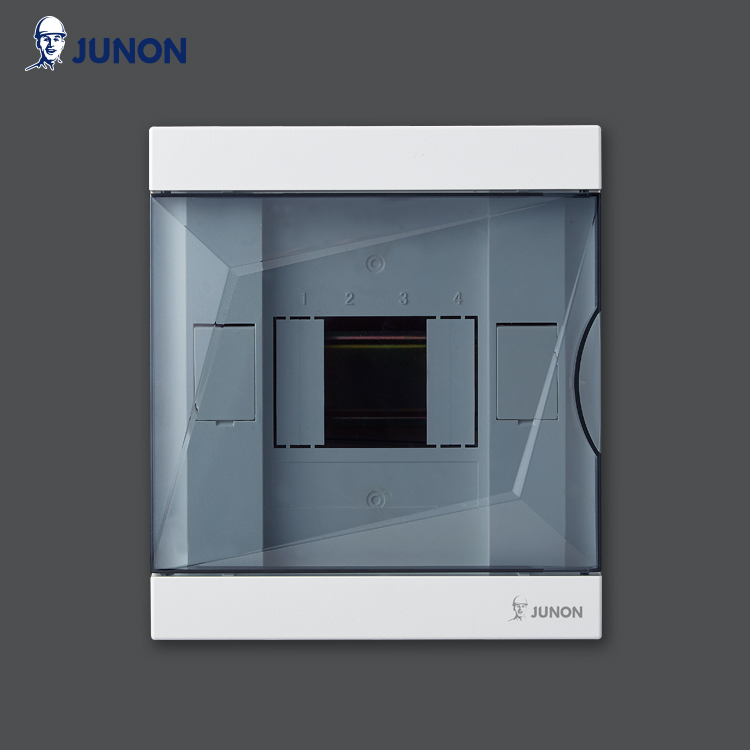

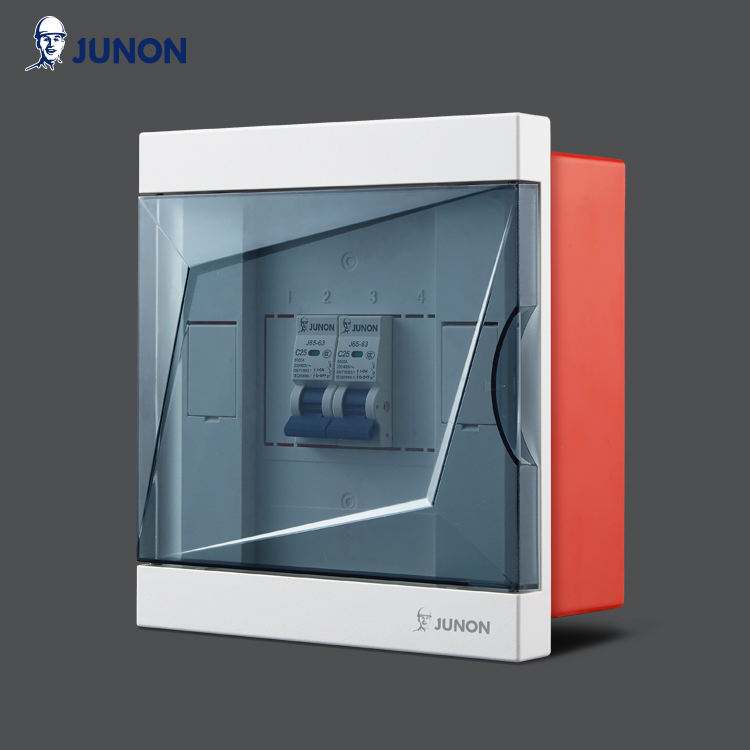

Modular Circuit Breaker Panel
These panels efficiently house numerous breakers within a compact space, optimizing space utilization. The standardized design ensures cost-effectiveness and simplifies both specification and installation.
Technical Specifications
Product Overview
High-Density Modular Distribution
The C6 series modular circuit breaker panels provide an efficient, space-saving solution for housing electrical breakers in residential and commercial environments. Designed for standardized, cost-effective installation, these panels feature a 3D diamond-cut aesthetic that blends seamlessly into modern interiors. With flexible installation options and robust fire resistance, they offer a reliable and professional-grade distribution system.
Technical Specifications
Electrical Ratings
415 V
Max Voltage
100 A
Rated Current
60 Hz
Frequency
Available Capacities
- 4 ways
- 8 ways
- 12 ways
- 16 ways
- 20 ways
- 24 ways
- 32 ways
- 36 ways
- Environmental Ratings
- IP30650℃ Fire Resistance
Installation & Design
Mounting Options
Flush MountedWall Mounted
Installation Features
- Built-in level meter for accurate positioning
- Adjustable guide rail depth
- 180° door opening angle
- Composite knock-out holes for multi-directional wiring
- Standards
- IEC60670
