Technical Specifications
Product Overview

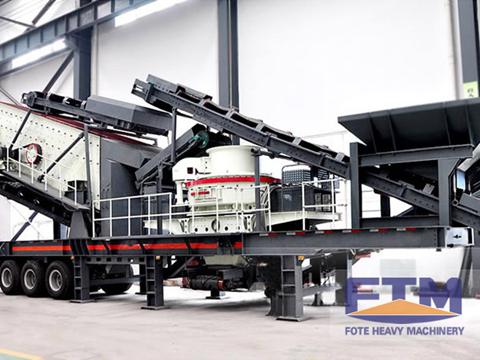

Mobile Vibrating Screening Station
The Mobile Vibrating Screening Station is a high-performance, tire-mounted unit designed for versatile on-site material processing. It is engineered for applications in mining, coal, cement, and construction waste recycling, providing efficient material separation through a robust vibrating screen system. With a compact footprint and multi-functional engineering, this station offers significant energy savings and superior mobility for diverse industrial environments.
Key Features
Industry Applications
- Mining and Coal Processing
- Cement Industry
- Construction Waste Recycling
- Urban Infrastructure Projects
- Earthwork Operations
- Operational Advantages
- Energy EfficientCrawler-readyNarrow-space compatibleTwo-layer screeningHigh mobility
Technical Specifications
Model Specifications
| Model | Weight (t) | Sand Maker | Vibrating Screen |
|---|---|---|---|
| FTM3S1848V81 | 31 | VSI-8518 | 3YZS1848 |
| FTM3S1860V92 | 36 | VSI-9526 | 3YZS1860 |
| FTM3S2160V140 | 49 | VSI-1140 | 3YZS2160 |
Transportation Dimensions
15,600 mm
Max Transportation Length
3,100 mm
Max Transportation Width
4,480 mm
Max Transportation Height
