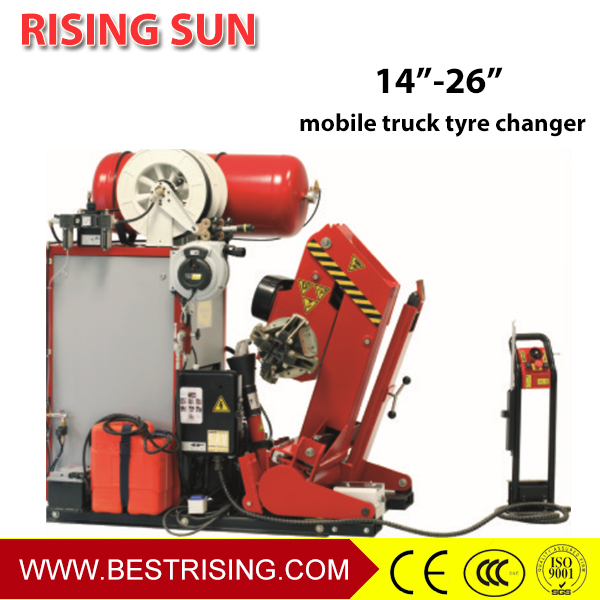

Mobile Truck Tire Changer 14-26 inch
This mobile tire changer is designed for heavy-duty truck tires, with a 14-26 inch capacity. It features a hydraulic tire lift, bead breaker, and wheel spinner for on-site tire service.
Technical Specifications
Product Overview
Heavy-Duty Mobile Tire Service Solution
This electro-hydraulic tire changer is engineered for the demanding requirements of truck, bus, and tractor tire maintenance. Designed with mobility in mind, the unit is fully capable of being operated within a workshop or deployed for roadside service vehicles. It features a soundproofed power generator and robust construction to ensure reliable performance in diverse environments.
Technical Specifications
- Rim Diameter Range
- 13 - 26 inches
- Max Wheel Weight
- 700 kg
- Max Wheel Width
- 600 mm
- Max Tire Diameter
- 1300 mm
- Bead Breaker Force
- 2500 kg
Power & Performance
Core Performance Metrics
1.1 kw
Hydraulic Pump Motor
1.1 kw
Gear Box Motor
- Power Supply
- 380V / 50HZ / 3PH
Van Compatibility
Van Installation Requirements
| Requirement | Dimension |
|---|---|
| Max machine chassis height to door top | 1450mm |
| Min inner van width | 1650mm |
| Min door width | 980mm |
| Max van thickness | < 160mm |
| Chassis to floor height | 700mm |
Certifications
- Compliance & Standards
- CEISOSGS
