Mobile Single Series Drilling Rig
These mobile drilling rigs are designed for operations such as coal-bed and shale gas extraction, workover operations, and inclined or slim-hole drilling. They feature a compact design, rapid installation, and a wide scope of application.
Technical Specifications
Overview
Mobile Single Series Drilling Rig
The Mobile Single Series Drilling Rig is engineered for versatile and efficient operation across coal-bed gas, shale gas, and workover tasks. Designed for high automation and mobility, it features a compact footprint that minimizes setup time and transport costs while maximizing drilling performance. These rigs offer advanced hydraulic control systems and robust derrick configurations to meet the demanding requirements of modern petroleum prospecting engineering.
Key Features
- Performance Advantages
- High AutomationFast InstallationCompact DimensionsReduced Transport ModulesBroad Application Scope

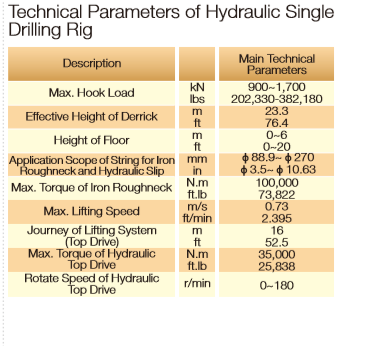

Hydraulic System Specs
Maximum Hook Load
1,700 kN
Max Hook Load
Top Drive Parameters
| Parameter | Value |
|---|---|
| Max Torque | 35,000 N.m |
| Rotate Speed | 0-180 r/min |
| Lifting Speed | 0.73 m/s |

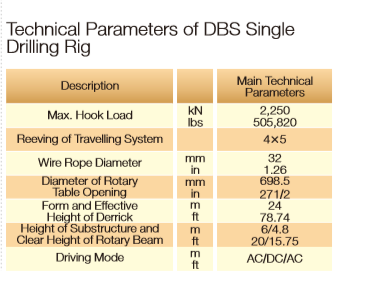

DBS Technical Data
- Maximum Hook Load
- 2250 kN
- Derrick Height
- 24 m

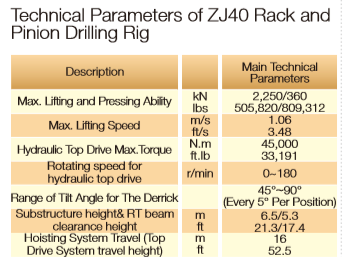

ZJ40 Rack and Pinion Specs
- Lifting and Pressing Ability
- 2,250/360 kN
- Top Drive Torque
- 45000 N.m
