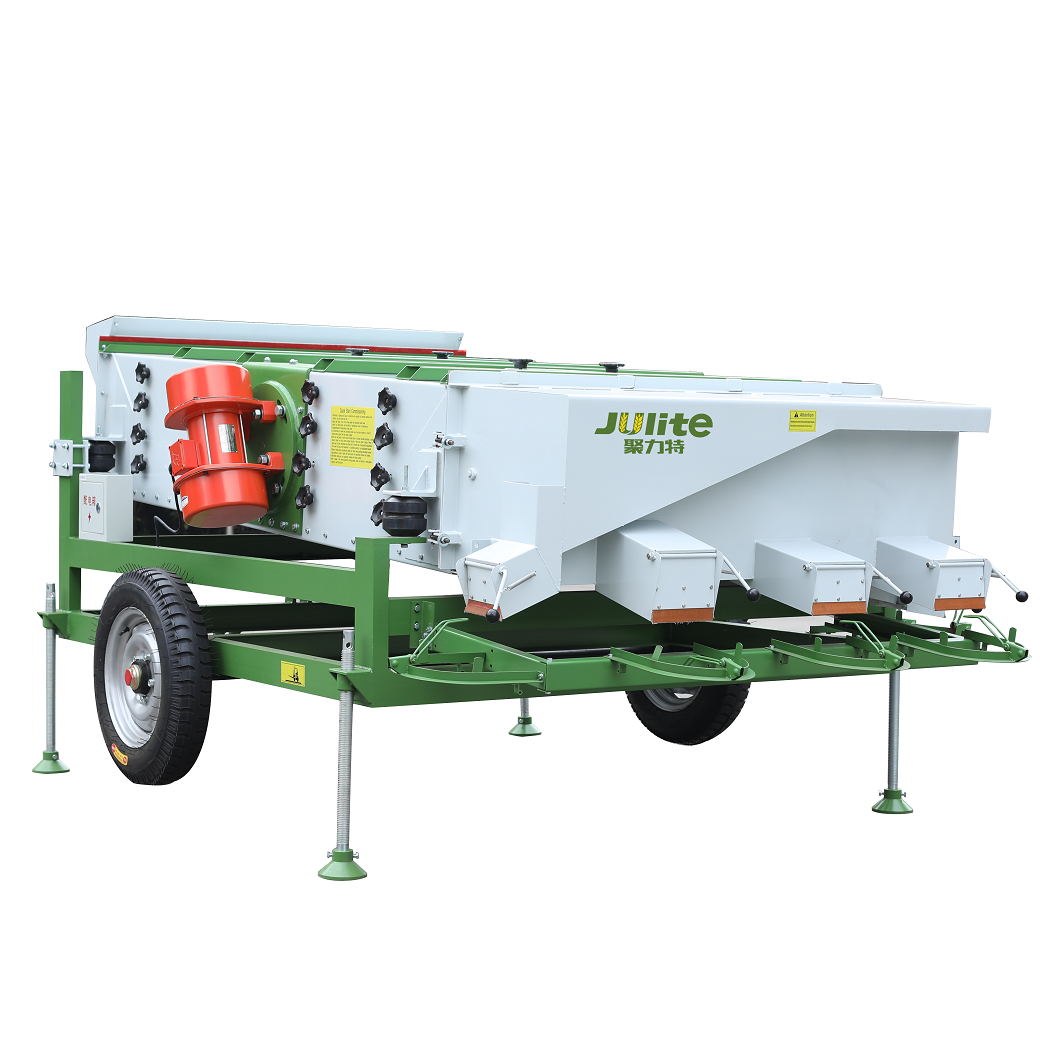

Mobile Grain Grading Machine
This grain grading machine utilizes a high-quality carbon steel sheet for durability and long service life. Its design facilitates easy and fast packing, saving labor.
Technical Specifications
Overview
Mobile Seed and Grain Grading Solution
This mobile grain grading machine is engineered for high-efficiency sorting and processing of agricultural seeds and grains. Designed with portability in mind, the unit features a robust chassis that allows for easy transport between different operational sites. With multi-stage screening capabilities and adjustable settings, it provides precise separation based on size and density, ensuring optimal seed quality and planting efficiency.
Technical Specifications
Model Specifications
| Model | Layers | Sieve Area (mm) | Power (Kw) | Capacity (Kg/h) | Weight (Kg) |
|---|---|---|---|---|---|
| 5XFJ-5B | 3 | 1000x2000 | 7.74 | 5,000 | 1,000 |
| 5XFJ-5C | 4 | 1000x2000 | 7.74 | 5,000 | 1,050 |
| 5XFJ-7.5B | 3 | 1250x2400 | 8.5 | 7,500 | 1,200 |
Design & Features
Key Features
- Mobile trailer chassis for easy transport
- Multi-stage screening system
- Adjustable support legs for stability
- Pneumatic tires for smooth towing
- Multiple grading outlets for precise separation
- Primary Applications
- Seed CleaningGrain ProcessingAgricultural Sorting
