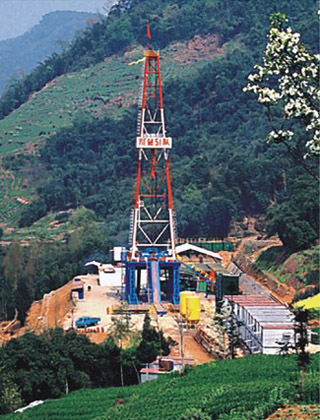

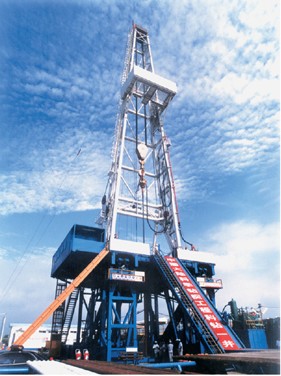

Mobile Drilling Rig
These drilling rigs range from 250 HP to 4000 HP. They can be configured as truck-mounted, trailer-moved, or skid-type.
Technical Specifications
Overview
Versatile Mobile Drilling Solutions
Our mobile drilling rigs are engineered based on 50 years of manufacturing expertise, offering a comprehensive range from 250 HP to 4000 HP. These units are available in truck-mounted, trailer-moved, or skid-type configurations to suit diverse operational environments. With options for mechanical, Electrical SCR, or Electrical VFD drives, these rigs provide the flexibility and power required for demanding oil, gas, and mineral exploration projects.
- Available Configurations
- Truck MountedTrailer MovedSkid TypeMechanical DriveElectrical SCR DriveElectrical VFD Drive
Performance Metrics
Power Range
Technical Specifications
Nominal Drilling Depth Capabilities
| Rig Type (Hook Load) | 127mm DP Depth (m) | 114mm DP Depth (m) |
|---|---|---|
| 10/600 | 500-800 | 500-1,000 |
| 15/900 | 700-1,400 | 800-1,500 |
| 20/1,350 | 1,100-1,800 | 1,200-2,000 |
| 30/1,700 | 1,500-2,500 | 1,600-3,000 |
| 40/2,250 | 2,000-3,200 | 2,500-4,000 |
| 50/3,150 | 2,800-4,500 | 3,500-5,000 |
| 70/4,500 | 4,000-6,000 | 4,500-7,000 |
| 90/6,750 | 5,000-8,000 | 6,000-9,000 |
| 120/9,000 | 7,000-10,000 | 7,500-12,000 |
System Components
Core Rig Components
- Tall lattice-structured derrick
- Hoisting system (Drawworks)
- Rotating mechanism (Rotary table)
- Mud circulation system
- Substructure support platform
- Integrated safety monitoring systems
Model Identification
Understanding Rig Designations
Models are defined by specific identifiers: 'ZJ' for Drilling rigs and 'XJ' for workover rigs. The numerical values indicate nominal well depth (in hundred meters) and static hook load (in kN). Drive types are noted as 'L' (Mechanical), 'D' (SCR), or 'DB' (VFD), while move types are designated as 'C' (Truck) or 'T' (Trailer).
