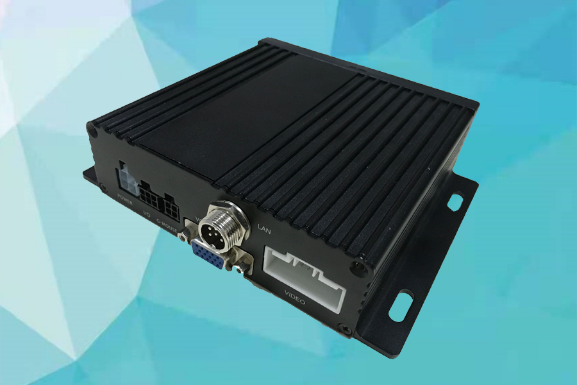

Mobile Digital Video Recorder with Blind Spot Detection
This mobile DVR records video and includes a blind spot detection system. It is designed for mobile applications to enhance safety.
Technical Specifications
Overview
Comprehensive Vehicle Safety & Surveillance
This Mobile Digital Video Recorder (DVR) integrates advanced Blind Spot Detection (BSD) to significantly enhance driver awareness by alerting operators to pedestrians, cyclists, and obstacles in blind zones. Designed for robust commercial use, the system supports high-definition video recording, GPS positioning, and real-time alerts via sound and light. It is an ideal solution for buses, trucks, and commercial fleets requiring reliable surveillance and proactive safety measures.
Key Features
- System Capabilities
- Blind Spot DetectionGPS+BDS PositioningHigh Definition VideoSound & Light AlarmLinux SystemCandid Photography
Video & Audio
Video & Audio Performance
| Parameter | Specification |
|---|---|
| Video Input | 4 CH AHD 1080P/720P |
| Video Encoding | H.265/H.264 |
| Audio Input | 1 CH |
| Audio Encoding | G.726 |
| Video Output | 1 CH CVBS, 1 CH VGA |
Performance Metrics
Positioning Accuracy
2.5 m
Positioning Accuracy
0.1 m/s
Speed Accuracy
Technical Specifications
SD Card Support
- 32G
- 64G
- 128G
- 256G
- Power Input
- DC 9～36V
- Operating Temperature
- -30 to 80°C
- Relative Humidity
- 93 %
- Physical Dimensions
- 140 x 118 x 35mm
Connectivity
- Available Interfaces
- USB 2.0RS232RS485
