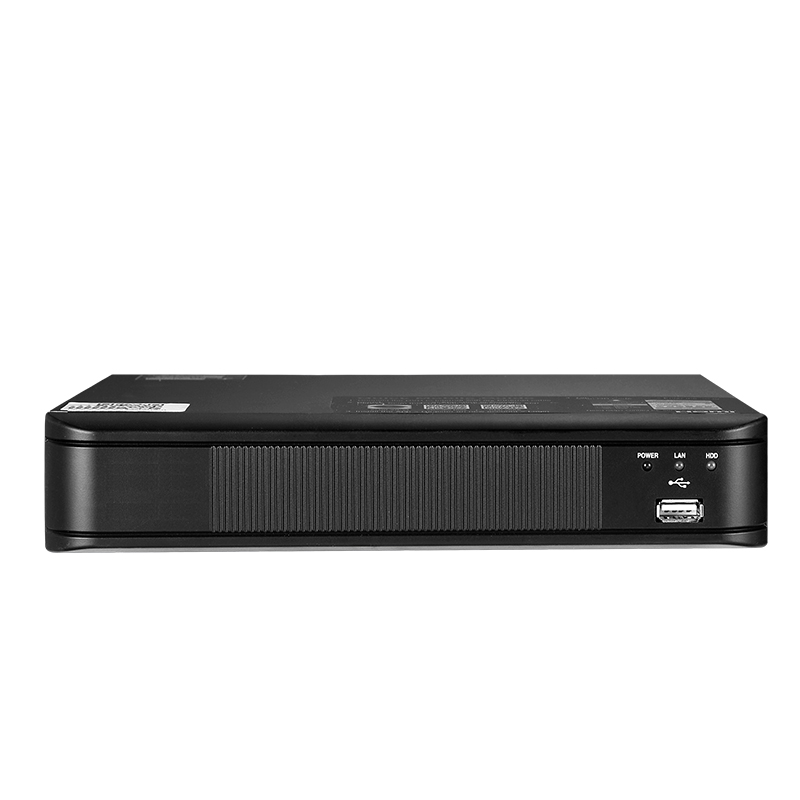

8-Channel 5MP Digital Video Recorder
This 8-channel 5MP digital video recorder is designed for surveillance systems. It supports recording and playback of high-resolution video from up to 8 cameras and features real-time monitoring and remote access via network.
Technical Specifications
Overview
Professional 8-Channel Surveillance Solution
This 8-channel digital video recorder provides high-definition 5MP surveillance capabilities for comprehensive security monitoring. Featuring advanced H.265+ video compression, it optimizes storage efficiency while maintaining high-quality playback. The unit is designed for versatility, supporting multiple camera formats including TVI, AHD, CVI, and CVBS, making it an ideal choice for upgrading existing security infrastructures.
Technical Specifications
- Channel Capacity
- 8 Channels
- Maximum Resolution
- 5MP
- Compression Standard
- H.265+
- Sync Playback
- 4 Channels
- Frame Rate
- 15 fps/channel
- Supported Formats
- TVIAHDCVICVBS
Storage & Connectivity
Max Hard Drive Support
8 TB
Storage Capacity
Video Outputs
- VGA
- HDMI
- Remote Access
- TUTK P2P + Amazon Web Server (App: ACCloud)
Package Contents
What's in the Box
| Item | Quantity |
|---|---|
| 5MP DVR | 1 |
| 12V Power Supply Unit | 1 |
| DVR Mouse | 1 |
| HDD Fixing Pack | 1 |
| Instruction Manual | 1 |
