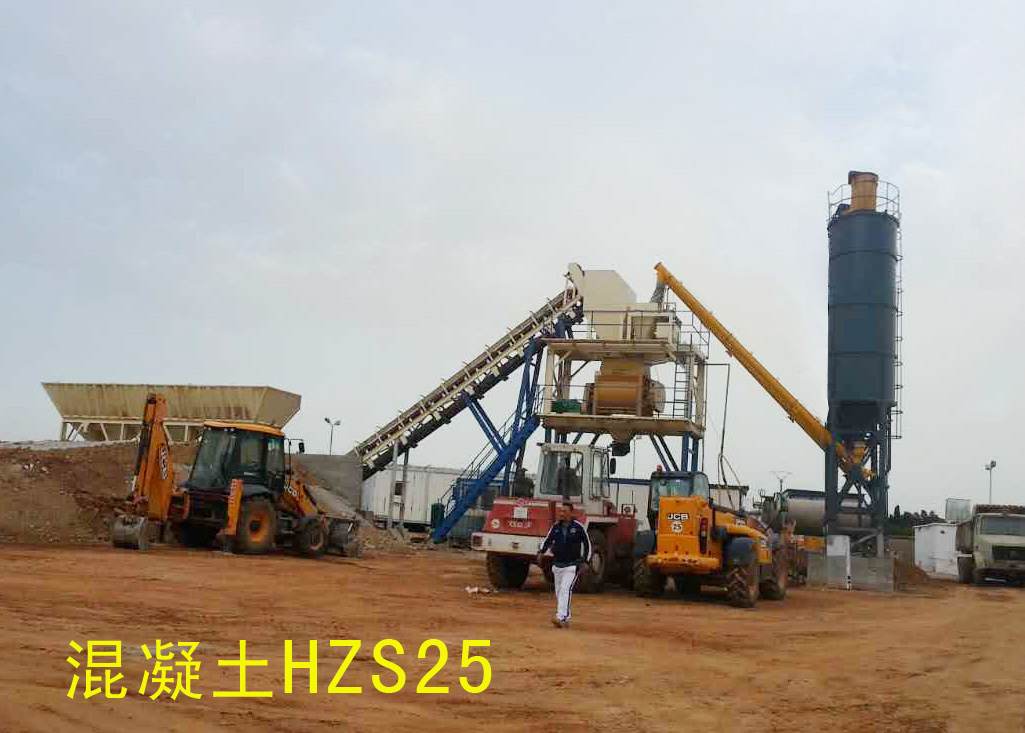

Mobile Concrete Mixing Plant
This mobile concrete mixing plant provides a versatile and efficient solution for on-site concrete production. Its design allows for easy transportation and quick setup, making it suitable for projects in remote or urban locations.
Technical Specifications
Product Overview
Mobile Concrete Mixing Plant
This mobile concrete mixing plant provides a versatile and efficient solution for on-site concrete production. Designed for rapid deployment and easy transportation, it is an ideal choice for construction projects in remote locations or urban environments with space constraints. The system features a robust mixing unit, integrated aggregate storage, and precise weighing systems to ensure consistent, high-quality concrete output for various project requirements.
Technical Specifications
Performance Data
| Model | Capacity (m³/h) | Mixer Model | Total Power (kW) | Total Weight (kg) |
|---|---|---|---|---|
| YHZS25 | 25 | JS500 | 45 | 20,000 |
| YHZS35 | 35 | JS750 | 60 | 22,000 |
| YHZS50 | 50 | JS1000 | 70 | 25,000 |
| YHZS75 | 75 | JS1500 | 100 | 32,000 |
- Weighing Precision
- Aggregate: ≤2%, Others: ≤1%
Mobility & Transport
Mobility Metrics
15 km/h
Max Towing Speed
3,200 mm
Tread Diameter
- Turning Radius
- 9 m
Features
- Key Capabilities
- Rapid SetupModular DesignOn-site ProductionPrecise BatchingMobile Chassis
