Technical Specifications
Overview

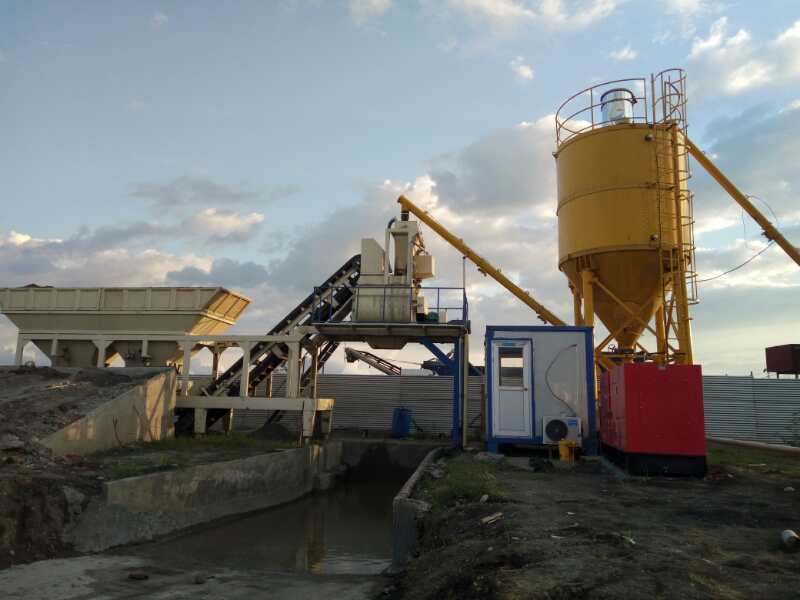

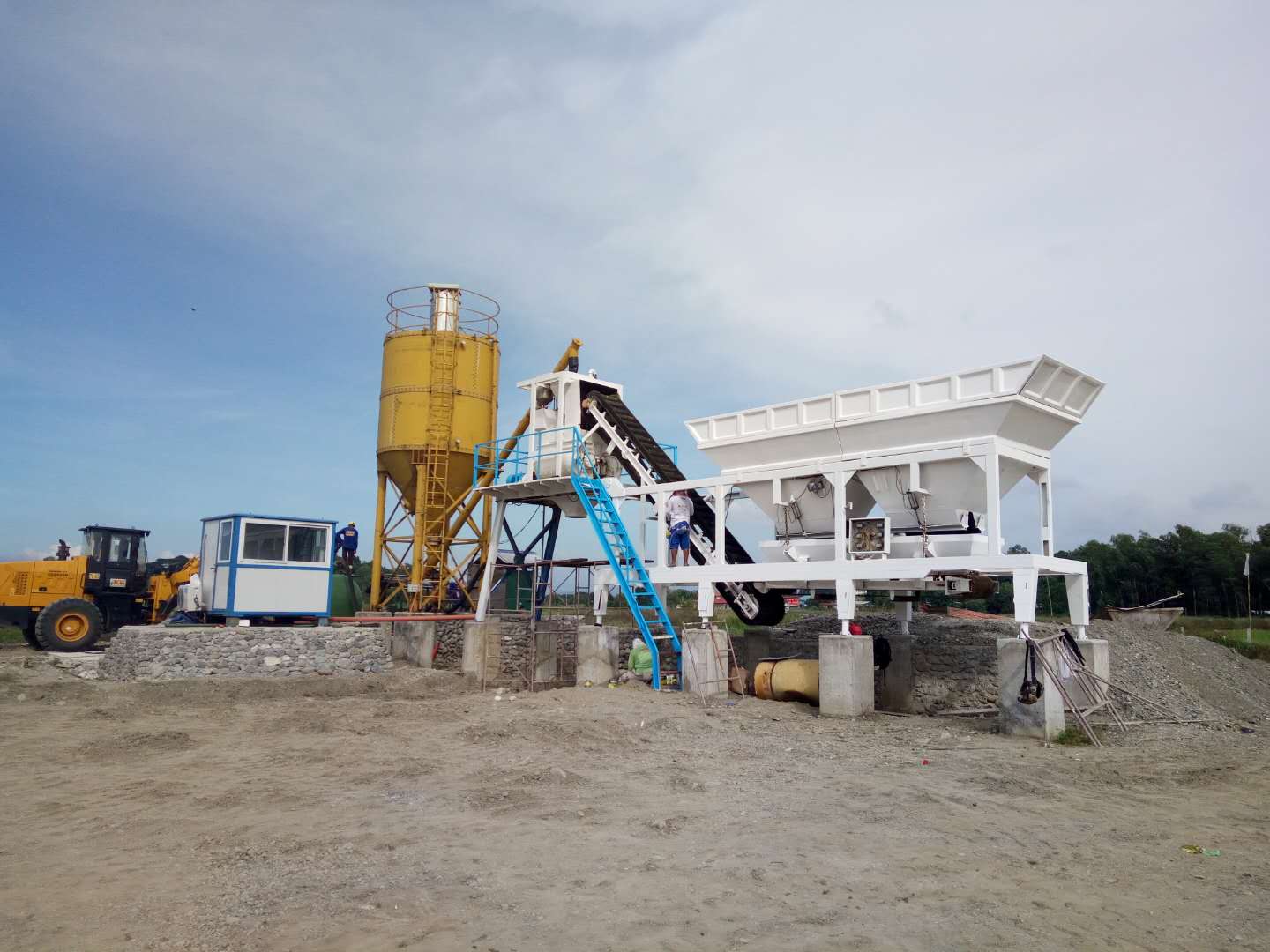

Mobile Concrete Batching Plant

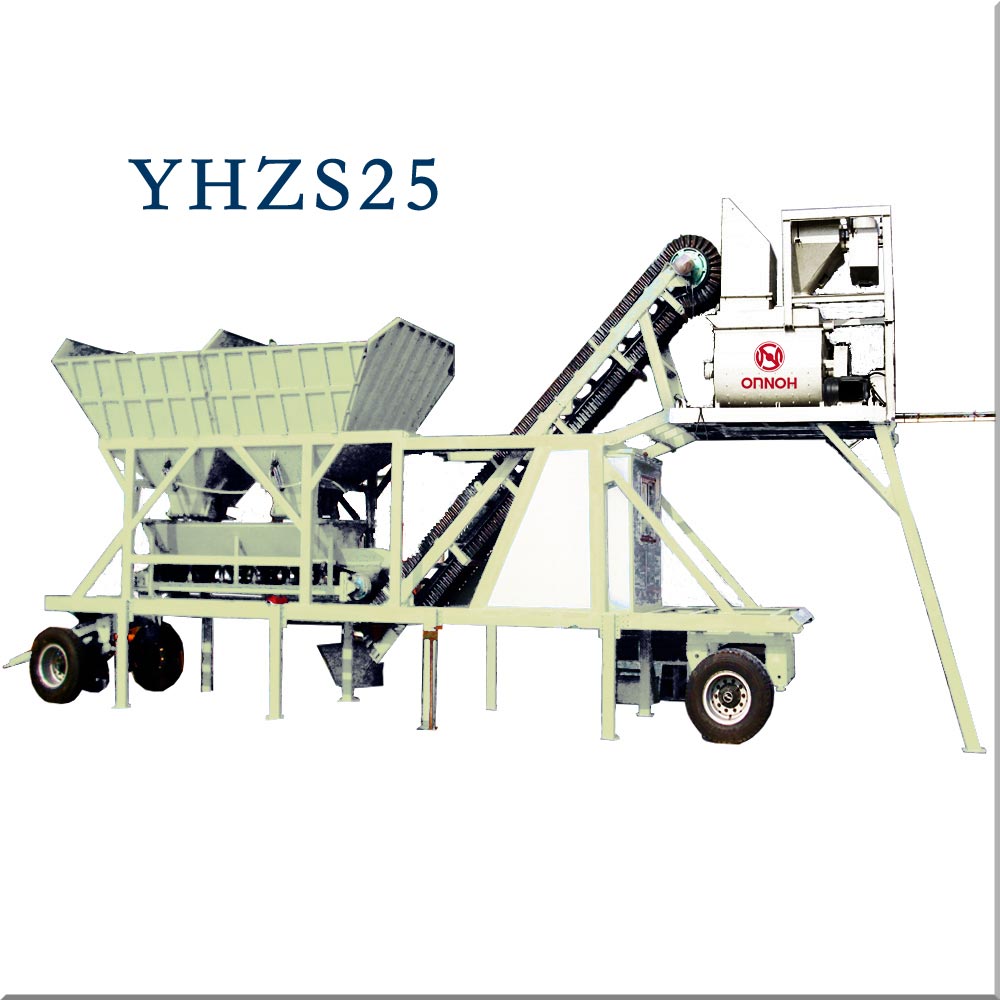

The YHZS25 is a high-efficiency mobile concrete batching plant designed for versatile, on-site concrete production. Featuring a modular architecture, it allows for rapid assembly, disassembly, and relocation, making it ideal for road construction, bridges, and small-to-medium infrastructure projects. With an automated control system and integrated weighing units, it ensures consistent material proportioning and high-quality concrete output of up to 25 cubic meters per hour.
Performance
Key Performance Metrics
25 m3/h
Theoretical Productivity
35 kW
Total Power
4 m
Unloading Height
Technical Specifications
Technical Specifications Table
| Component | Specification |
|---|---|

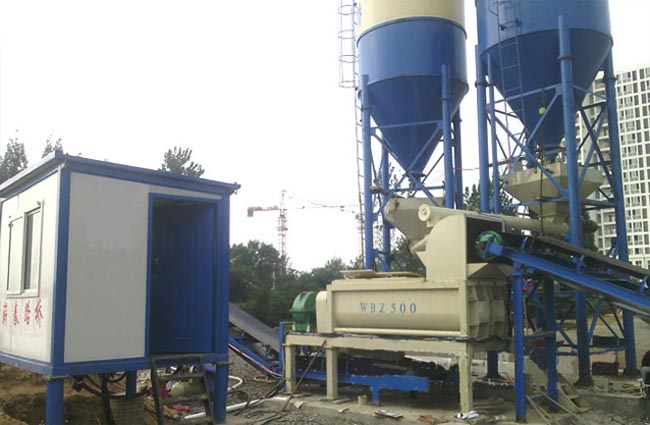

| Mixer Model | JS500 |
| Batching Machine | PLD800 |
| Belt Conveyor Capacity | 200 t/h |
| Drag Speed | 15 km/h |
| Lateral Wheelbase | 2800 mm |
| Turning Radius | 11 mm |
Features
Key Features
- Modular design for rapid deployment
- Integrated weighing and control systems
- High-capacity twin-shaft mixer
- Mobile chassis for easy site relocation
Applications
- Ideal For
- Road ConstructionBridge BuildingTemporary Site ProjectsSmall-to-Medium Infrastructure
