Miniature Stepper Gear Motor
This miniature stepper gear motor features a metal gearbox and hexagonal output shaft. It is suitable for low-speed, high-torque applications such as robotics and automation.
Technical Specifications
Overview

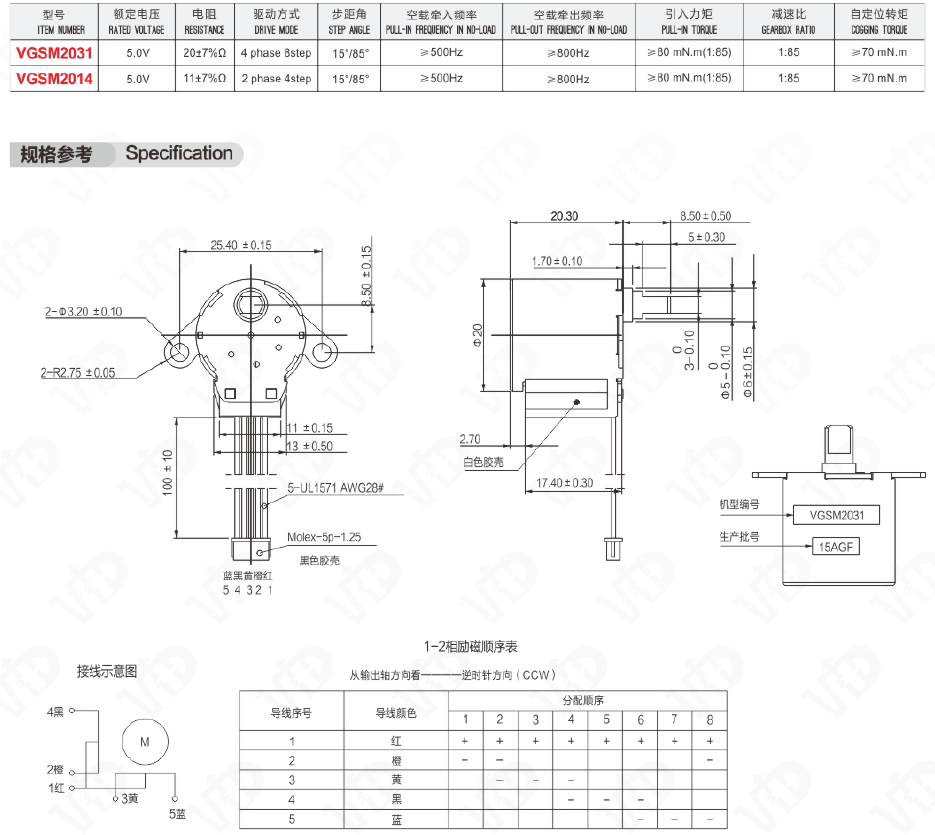

Miniature Stepper Gear Motor VGSM20 Series
The VGSM20 series is a compact, high-precision stepper gear motor designed for demanding applications in robotics, automation, and hobbyist engineering. Featuring a durable metal gearbox and a specialized hexagonal output shaft, this motor delivers reliable performance with high torque capabilities. With flexible drive modes and standardized wiring, it integrates seamlessly into complex electronic control systems.
Electrical Specifications
- Rated Voltage
- 5 V
- Resistance (VGSM2031)
- 20 Ω
- Resistance (VGSM2014)
- 11 Ω
Performance Metrics
Key Performance Indicators
80 mN.m
Pull-in Torque
70 mN.m
Cogging Torque
15 °
Step Angle
Frequency Specifications
- Pull-in frequency (no-load): ≥500Hz
- Pull-out frequency (no-load): ≥800Hz
Technical Details
Drive Modes
| Model | Drive Mode |
|---|---|
| VGSM2031 | 4 phase 8 step |
| VGSM2014 | 2 phase 4 step |
- Gearbox Ratio
- 1:85
Connectivity
- Wiring & Connector
- 5-pin Molex-1.25UL1571 AWG28#Color-coded (Blue/Yellow/Red/Orange/Black)
