Miniature Linear Motion Module with Stepper Motors
This miniature linear motion module features two precision lead screw actuators mounted on a flexible printed circuit board. It is designed for applications requiring precise and synchronized linear actuation in a compact form factor.
Technical Specifications
Overview
Module VSM10 Compact Linear Actuator
The VSM10 miniature linear motion module is designed for applications requiring highly precise and synchronized linear actuation within a compact form factor. Featuring two precision lead screw actuators mounted on a flexible printed circuit board (FPC), this module offers reliable performance for space-constrained environments. It is engineered with a 2-2 drive mode and right-hand single thread configuration, ensuring consistent movement and integration ease.
Electrical Specifications
- Rated Voltage
- 5 V
- Resistance
- 55±10%Ω
- Drive Mode
- 2-2
Performance Metrics
Key Performance Metrics
1,100 pps (min)
Max Self-Start Frequency
1,800 pps (min)
Max Continuous Response Frequency
2.8 gf-cm
Introducing Torque
3.8 gf-cm
Tripping Torque
Mechanical Specifications
Pitch Specifications

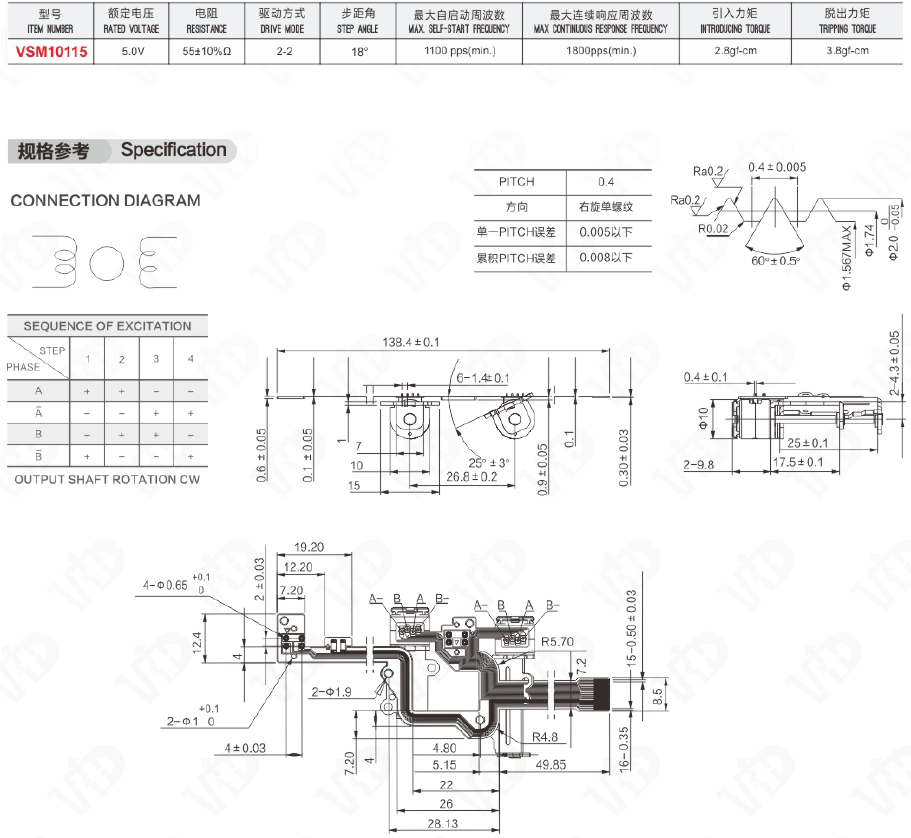

| Parameter | Value |
|---|---|
| Pitch | 0.4 |
| Thread Direction | Right-hand single thread |
| Single Pitch Error | < 0.005 |
| Cumulative Pitch Error | < 0.008 |
- Step Angle
- 18 °
