Miniature Geared Stepper Motor
This miniature stepper motor has an integrated PCB for control and connection. The geared output shaft allows for increased torque and precise positioning.
Technical Specifications
Product Overview
VSM06 Series Stepper Motor
The VSM06 is a miniature geared stepper motor designed for precision motion control in compact environments. Featuring an integrated PCB and a geared output shaft, it delivers consistent torque and reliable performance for robotics and automation applications. This unit supports 2-2 drive mode and utilizes a standardized molex connection for seamless system integration.
Performance Metrics
Performance Highlights
1,300 PPS
Max Self-Start Frequency
2,500 PPS
Max Continuous Frequency
18 °
Step Angle

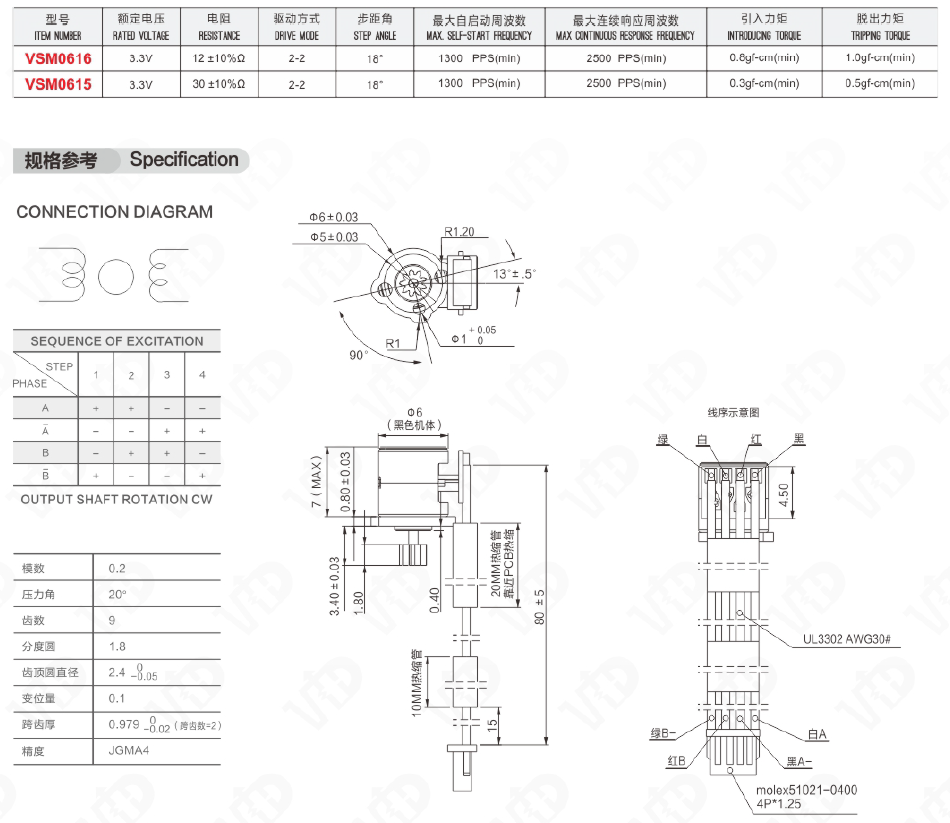

Technical Specifications
Electrical & Physical Specs
| Attribute | VSM0616 | VSM0615 |
|---|---|---|
| Rated Voltage | 3.3V | 3.3V |
| Resistance | 12 ±10%Ω | 30 ±10%Ω |
| Introducing Torque | 0.8gf-cm(min) | 0.3gf-cm(min) |
| Tripping Torque | 1.0gf-cm(min) | 0.5gf-cm(min) |
Gearbox Details
- Module: 0.2
- Pressure Angle: 20°
- Teeth Count: 9
- Dividing Circle: 1.8
- Tooth Top Circle Diameter: 2.4 -0.05
- Precision: JGMA4
Connectivity
- Wiring & Interface
- molex51021-04004P*1.25 ConnectorUL3302 AWG30 wiring
