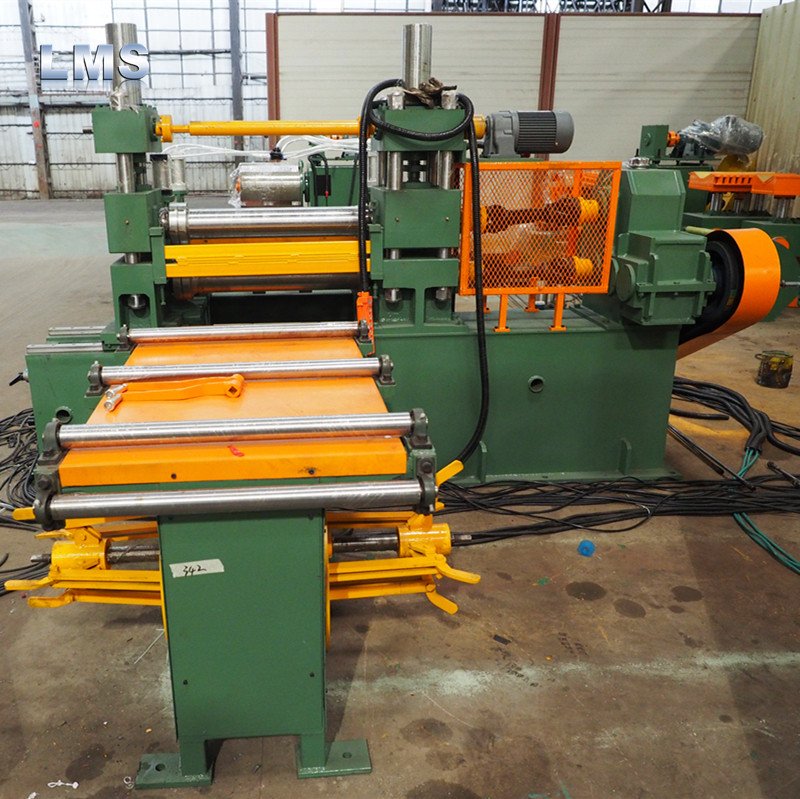

Mini Coil Slitting Line
This mini slitting line is designed for precision cutting of metal coils. It features adjustable slitting heads and tension control systems.
Technical Specifications
Overview
Compact Precision Slitting Solution
This mini coil slitting line is engineered for high-efficiency processing of light gauge metal coils, offering an optimized solution for smaller production capacities. The system integrates decoiling, feeding, precision slitting, and recoiling into a unified, robust workflow. Designed for versatility, it handles a wide range of materials including carbon steel, stainless steel, aluminum, and non-ferrous alloys with high axial cutting accuracy.
Technical Specifications
Performance Metrics
160 m/min
Max Operating Speed
3 mm
Max Material Thickness
1,800 mm
Max Coil Outer Diameter
Capacity Specifications
| Parameter | Range |
|---|---|
| Coil Width | 500 - 1400 mm |
| Material Thickness | 0.15 - 3 mm |
| Inside Coil Diameter | 480 - 520 mm |
| Scrap Rewinder Load | Max 1 ton |
| Recoiler Tension | Max 2500 kgf |
- Compatible Materials
- Carbon SteelStainless SteelAluminiumNon-ferrous metalsAlloys
System Components
Line Configuration
- Hydraulic Decoiler with adjustable tension
- Pinch roller for automatic feeding
- Loop pit for strip control
- Slitting shear
- Dual-side scrap rewinder
- Tension unit
- Hydraulic Recoiler
