Automatic Metal Coil Slitting Machine
This automatic slitting machine efficiently cuts metal coils into narrower strips. It features adjustable slitting widths and speeds to meet diverse production requirements for processing metals like steel, aluminum, and copper.
Technical Specifications
Overview
Automatic Metal Coil Slitting Machine

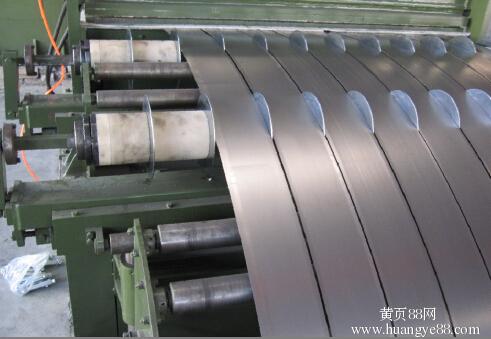

This high-precision automatic slitting line is engineered to process various metal coils, including silicon steel, aluminum, galvanized, stainless, and common carbon steel. It efficiently cuts wide coils into multiple narrow strips along the length direction with high accuracy. The system integrates a comprehensive workflow from decoiling and feeding to precision shearing and rewinding, ensuring consistent strip quality and production efficiency.
Technical Parameters
Slitting Capacity
12 bars
Strips (1mm thick)
20 bars
Strips (0.5mm thick)
- Material Thickness
- 1.5 mm
- Max Material Width
- 1000 mm
- Max Material Weight
- 5 T
- Max Operating Speed
- 60 m/min
Precision Standards
Precision Metrics
| Metric | Value |
|---|---|
| Unilateral non-straightness | ≤0.05 mm/m |
| Width error | ±0.03 mm |
| Shear burrs (at 1.0mm thickness) | ≤0.03 mm |
System Components
Key Components
- Hydraulic feeding trolley
- Hydraulic internal decoiler
- Transition Bridge

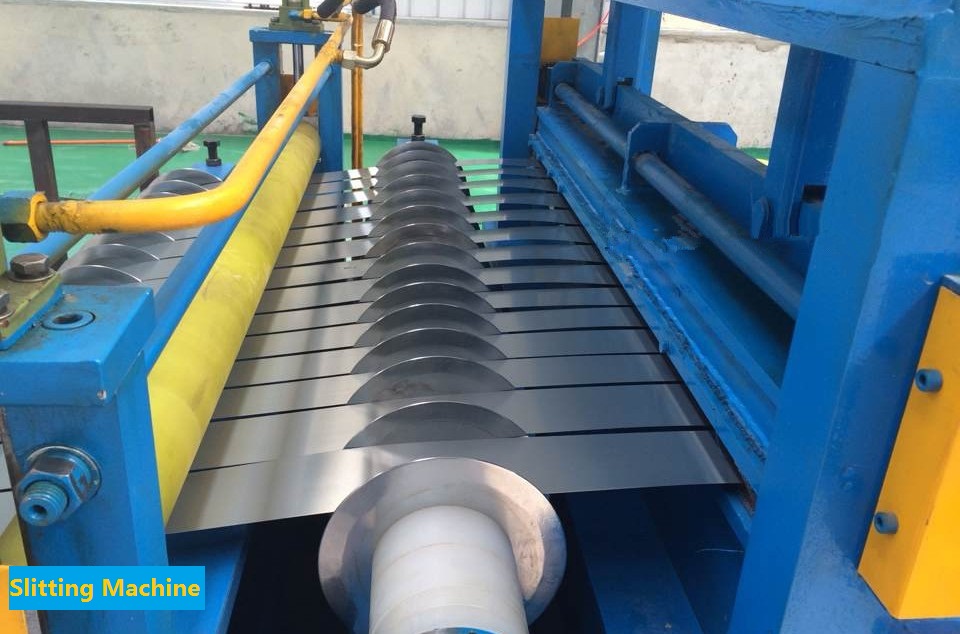

- Longitudinal shearing machine
- Hemming machine
- Hydraulic surge stations
- Hydraulic clamp rewinder
- Discharge hydraulic trolley
- Hydraulic systems
- Electrical control systems
Physical Dimensions
- Production Area Dimensions
- 20m (L) x 7.5m (W) x 2m (H)
Material Compatibility
- Compatible Materials
- Silicon SteelAluminum CoilGalvanized CoilStainless SteelCarbon Steel
