Metal Coil Slitting Line
This industrial slitting line processes metal coils with a decoiler, slitter, and recoiler. It is designed for precision slitting of metal sheets into narrower widths, improving production efficiency and material utilization.
Technical Specifications
Product Overview

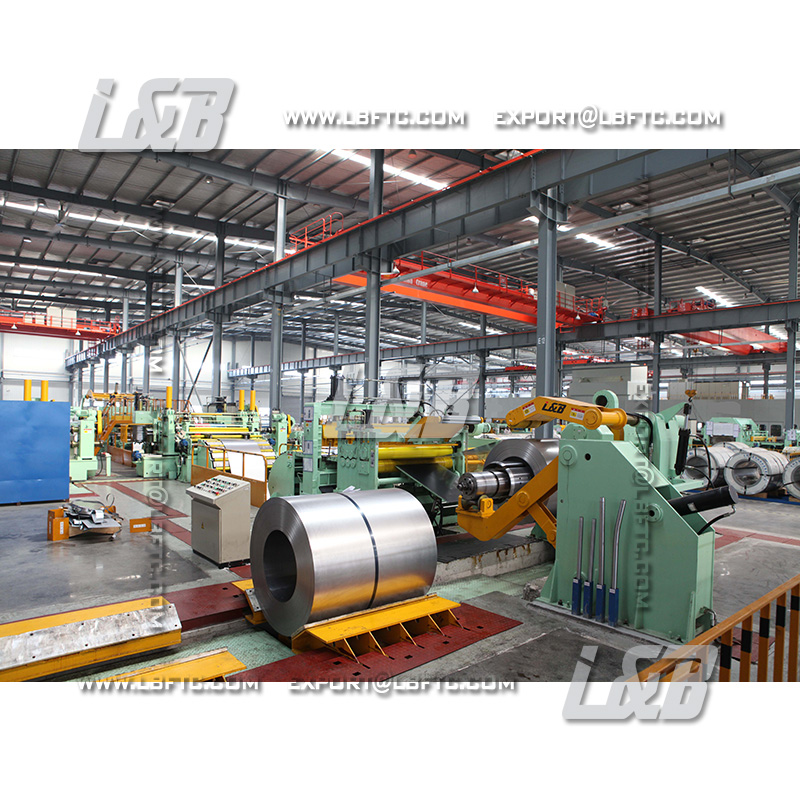

Industrial Metal Coil Slitting Line
This high-performance slitting line is designed for precision cutting and recoiling of metal coils, ensuring clean edges and tension control without surface scratching. Featuring an intuitive man-machine interface, the equipment delivers high-speed processing with exceptional dimensional accuracy. It is an ideal solution for steel mills, service centers, and large-scale manufacturing facilities requiring consistent material utilization.
Technical Specifications
Performance Highlights
20 ton
Max Coil Weight
200 m/min
Max Line Speed
Technical Data by Model
| Model | Max Thickness (mm) | Max Width (mm) | Width Accuracy (mm) |
|---|---|---|---|
| 1250 | 0.2-2.0 | 1250 | ±0.05 |
| 1600 | 0.3-3.0 | 1600 | ±0.1 |
| 1800 | 0.5-3.0 | 1800 | ±0.1 |
| 2000 | 0.5-3.0 | 2000 | ±0.15 |
- Compatible Materials
- Cold-rolled steel coilGalvanized coilColor-coated coilStainless steel coil
