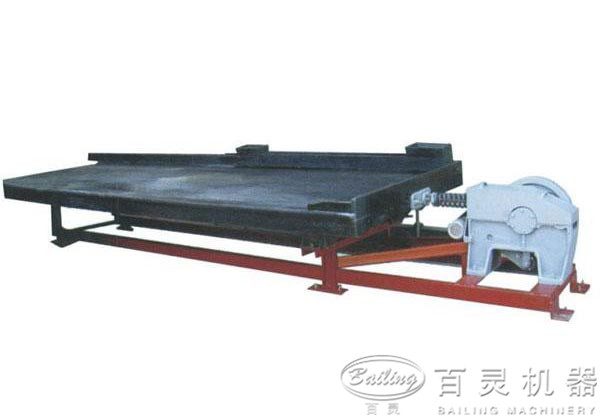

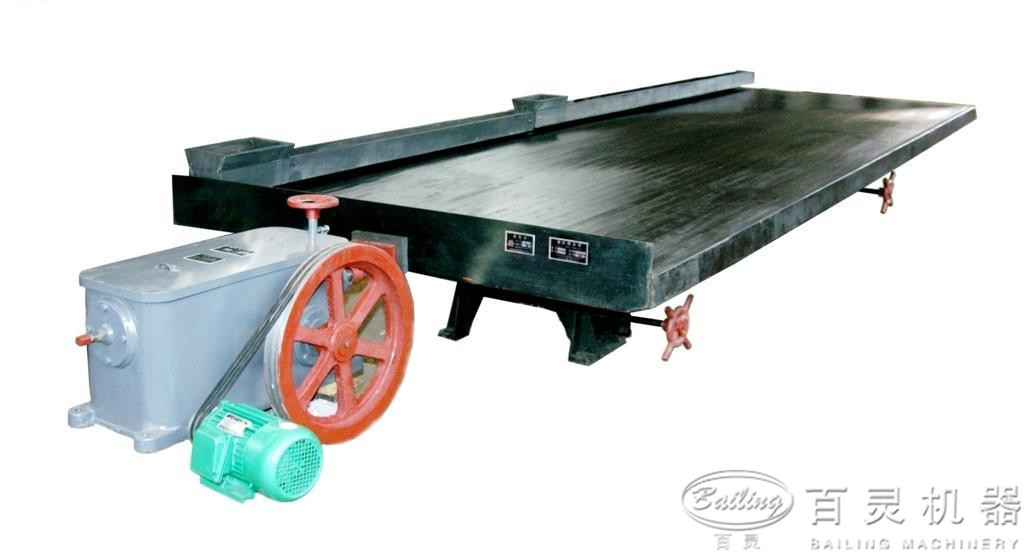

Mineral Gravity Concentrating Shaking Table
The shaking table is a mineral gravity concentration equipment. It can produce high grade concentrated ore, secondary concentrated ore, middlings and tailings simultaneously.
Technical Specifications
Overview
Industrial Mineral Gravity Concentrator
This shaking table is a specialized gravity concentration device designed for efficient separation of metallic minerals including tungsten, gold, tin, and rare metals. Built with a robust zircon-reinforced fiberglass deck and steel frames, it offers excellent water and corrosion resistance while maintaining structural integrity. The equipment is engineered for high-grade output, allowing for the simultaneous production of concentrated ore, middlings, and tailings.
Operational Metrics
Performance Overview
1.1 KW
Motor Power
2 mm
Max Particle Feed
60 T/d
Max Processing Capacity
- Key Operational Advantages
- High Chemical ResistanceLow Water AbsorptivityDurable WearabilityHigh Structural IntensityExcellent Shape Stability
Technical Specifications
Technical Data Comparison
| Parameter | Sand Shaker | Slime Shaker |
|---|---|---|
| Max Feed Size (mm) | 2 | 0.5 |
| Capacity (T/d) | 30-60 | 15-25 |
| Stroke Length (mm) | 16-22 | 8-16 |
| Frequency (F) | 15-48 | 50-57 |
| Motor Power (KW) | 1.1 | 1.1 |
